Kodiak 60 (968999624) - Dixon 60" Kodiak Zero-Turn Mower, 25hp Kohler (2008-05) ENGINE PLATE Parts Diagram

60" Kodiak Zero-Turn Mower, 25hp Kohler

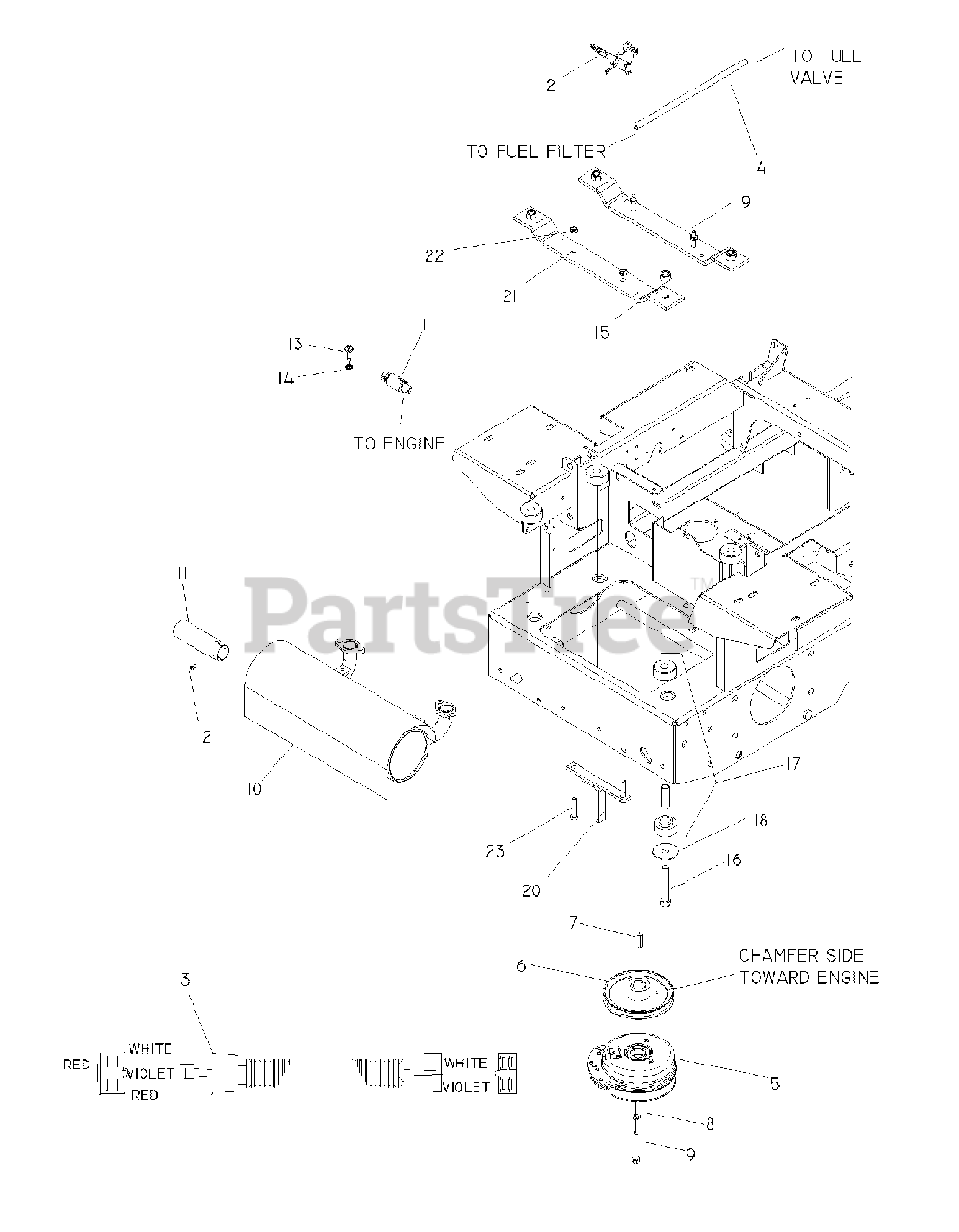

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

2

Dixon 539121866

CHOKE CABLE

$

$

Not available

3

Dixon 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

4

Dixon 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

5

Dixon 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

6

Dixon 539112774

PULLEY

$

$

Not available

7

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

8

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

9

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

10

Dixon 539118684

MUFFLER

$

$

Not available

11

Dixon 539114714

TUBE, EXTENSION, MUFFLER

$

$

Not available

12

Dixon 539108051

SCR #8 X 1/2 PHIL HD DRILL BLK

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

14

Dixon 539109603

WASHER 3/8 EXT STAR ZD

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

16

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

17

Dixon 539104958

ISOLATORS

$

$

Not available

18

Dixon 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

19

Dixon 539105025

ENGINE MOUNT

$

$

Not available

20

Dixon 539106819

CLUTCH TIE DOWN

$

$

Not available

21

Dixon 539114306

STRAP, ISO, REAR

$

$

Not available

22

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539113781

HCS 5/16-18 X 1-3/4 SERATED

$3.99

$

Usually ships in 3-10 days

0

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539117704

DECAL, KOHLER

Note: NOT SHOWN

$6.99

$

Usually ships in 3-10 days

0
