Kodiak 60 (968999624) - Dixon 60" Kodiak Zero-Turn Mower, 25hp Kohler (2008-05) ELECTRICAL Parts Diagram

60" Kodiak Zero-Turn Mower, 25hp Kohler

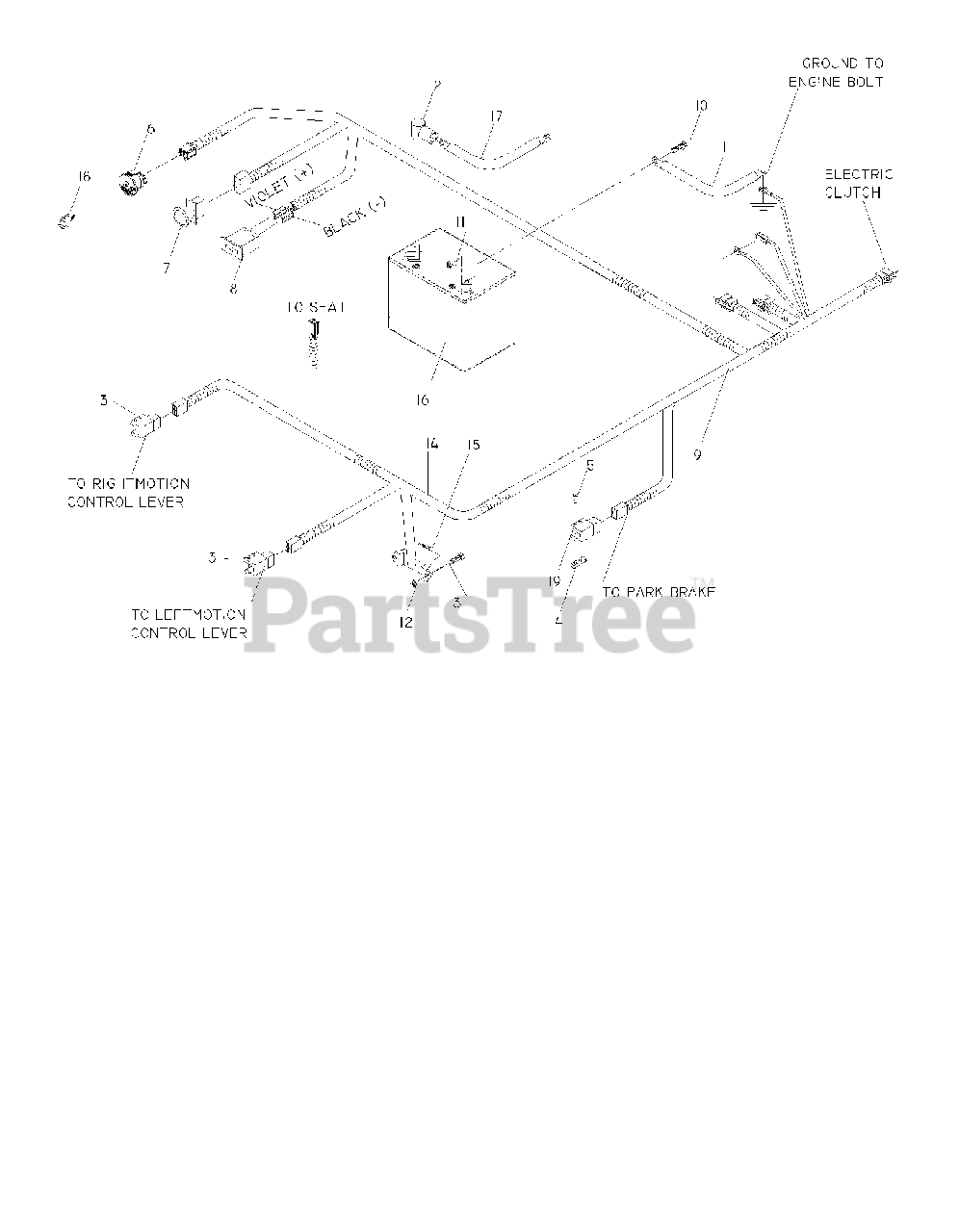

ELECTRICAL Parts Diagram

  • Title

1

Dixon 539102758

CABLE-NEGATIVE

$

$

Not available

2

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

3

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

4

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

5

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

6

Dixon 539118848

IGNITION SWITCH
(Superseded to 539107541)

$26.99

$

In Stock, Qty 6

0

7

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

8

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

9

Dixon 539114492

HARNESS, KODIAK

Note: UNITS PRODUCED PRIOR TO SERIAL NO . 073736962

$

$

Not available

Dixon 539114737

HARNESS, WIRING DXK/DXG

Note: UNITS PRODUCED AFTER SERIAL NO . 073736962

$242.99

$

Usually ships in 3-10 days

0

10

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

11

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

13

Dixon 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

14

Dixon 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

15

Dixon 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

16

Dixon 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

17

Dixon 539121618

POSITIVE CABLE 25-1/2

$

$

Not available

18

Dixon 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

19

Dixon 539101080

SWITCH, INTERLOCK

Note: UNITS PRODUCED PRIOR TO SERIAL NO . 073736962

$17.99

$

Usually ships in 3-10 days

0

Dixon 539113792

SWITCH, BRAKE 3P

Note: UNITS PRODUCED AFTER SERIAL NO . 073736962

$17.99

$

In Stock, Qty 12

0

Dixon 539114077

PIGTAIL LIGHT

Note: NOT SHOWN

$

$

Not available
