Kodiak 60 (968999580) - Dixon 60" Kodiak Zero-Turn Mower, 25hp Kohler (2008-05) SEAT Parts Diagram

60" Kodiak Zero-Turn Mower, 25hp Kohler

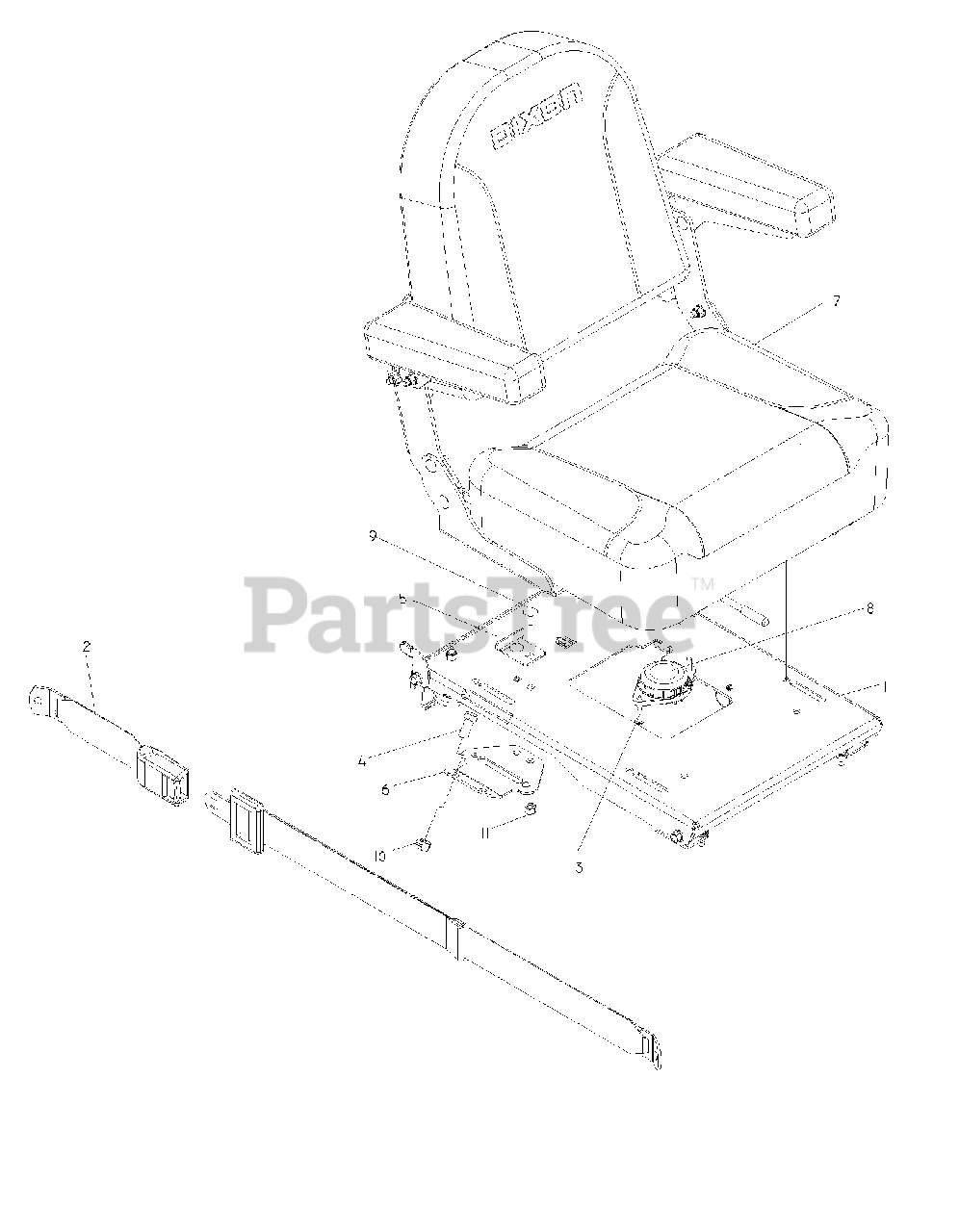

SEAT Parts Diagram

  • Title

1

Dixon TBD

TBD

$

$

Not available

2

Dixon 539111026

SEAT BELT

$

$

Not available

3

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

4

Dixon 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

6

Dixon 539130791

MOUNT, SEAT BELT

$14.99

$

Usually ships in 3-10 days

0

7

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

8

Dixon 539131155

SEAT SWITCH KIT

Note: USED ON UNITS PRODUCED PRIOR TO SERIAL NO . 073736962

$

$

Not available

8

Dixon 539117398

SEAT SWITCH MILSCO

Note: USED ON UNITS PRODUCED AFTER SERIAL NO . 073736962

$34.99

$

Usually ships in 3-10 days

0

9

Dixon 539109100

RHSNB 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

10

Dixon 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

11

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

Dixon 539104392

SEAT HARNESS

Note: NOT SHOWN USED ON UNITS PRODUCED PRIOR TO SERIAL NO . 073736962

$

$

Not available

Dixon 539130872

SEAT HARNESS

Note: NOT SHOWN USED ON UNITS PRODUCED AFTER SERIAL NO . 073736962

$

$

Not available
