Kodiak 60 (968999580) - Dixon 60" Kodiak Zero-Turn Mower, 25hp Kohler (2007) CHASSIS / FRAME Parts Diagram

60" Kodiak Zero-Turn Mower, 25hp Kohler

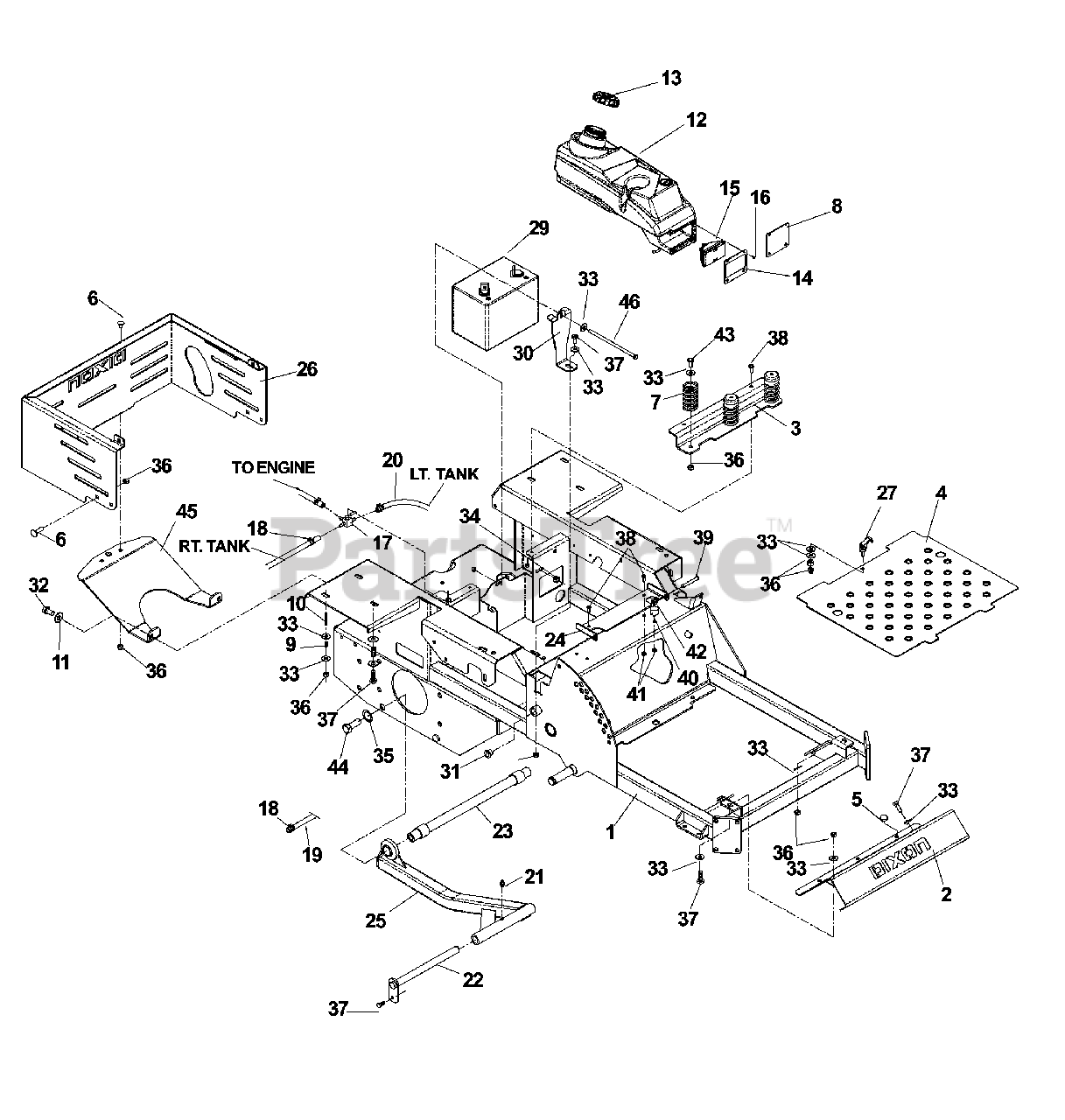

CHASSIS / FRAME Parts Diagram

  • Title

1

Dixon 539114606

FRAME W/DECALS

$849.99

$

Usually ships in 3-10 days

0

2

Dixon 539114317

FOOT REST

$

$

Not available

3

Dixon 539114329

SPRING MOUNT

$34.99

$

Usually ships in 3-10 days

0

4

Dixon 539114607

PLATE, FOOT-W/DECALS

$133.99

$

Usually ships in 3-10 days

0

5

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

6

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

9

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

10

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

11

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539114057

TANK, FUEL, LT

$

$

Not available

13

Dixon 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

Usually ships in 3-10 days

0

14

Dixon 539114075

PLATE LIGHT

Note: MODELS: 968999576, 968999577, 968999578, 968999579, 968999580

$24.99

$

Usually ships in 3-10 days

0

15

Dixon 539114232

LIGHT

Note: MODELS: 968999576, 968999577, 968999578, 968999579, 968999580

$

$

Not available

16

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

17

Dixon 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

18

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

19

Dixon 539105527

FUEL LINE 24"
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

20

Dixon 539105530

FUEL LINE 34"

$6.99

$

Usually ships in 3-10 days

0

21

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

22

Dixon 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

23

Dixon 539104197

STRUT MOUNT WELDMENT

$

$

Not available

24

Dixon 539114332

PLATE, MOUNT, SEAT

$

$

Not available

25

Dixon 539114806

STRUT, RIGHT

$

$

Not available

Dixon 539114808

STRUT, LT

$

$

Not available

26

Dixon 539114608

GUARD, REAR W/DECALS

$

$

Not available

27

Dixon 539109376

LATCH.SWELL.ACTION

$

$

Not available

28

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

Dixon 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

30

Dixon 539114664

BRKT, HOLD DOWN, BATTERY

$21.99

$

Usually ships in 3-10 days

0

31

Dixon 539102519

BUSHING

$

$

Not available

32

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

33

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

34

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

36

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

38

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

40

Dixon 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

41

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

43

Dixon 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

44

Dixon 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539114584

PLATE, SKID

$

$

Not available

46

Dixon 539108465

HCS 5/16-18 X 6 GR 5 ZD

$

$

Not available

47

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

Dixon 539104525

SEAT ROD

Note: NOT SHOWN

$12.99

$

Usually ships in 3-10 days

0
