Kodiak 52 (968999620) - Dixon 52" Kodiak Zero-Turn Mower, 21hp Kawasaki (2008-05) ENGINE PLATE Parts Diagram

52" Kodiak Zero-Turn Mower, 21hp Kawasaki

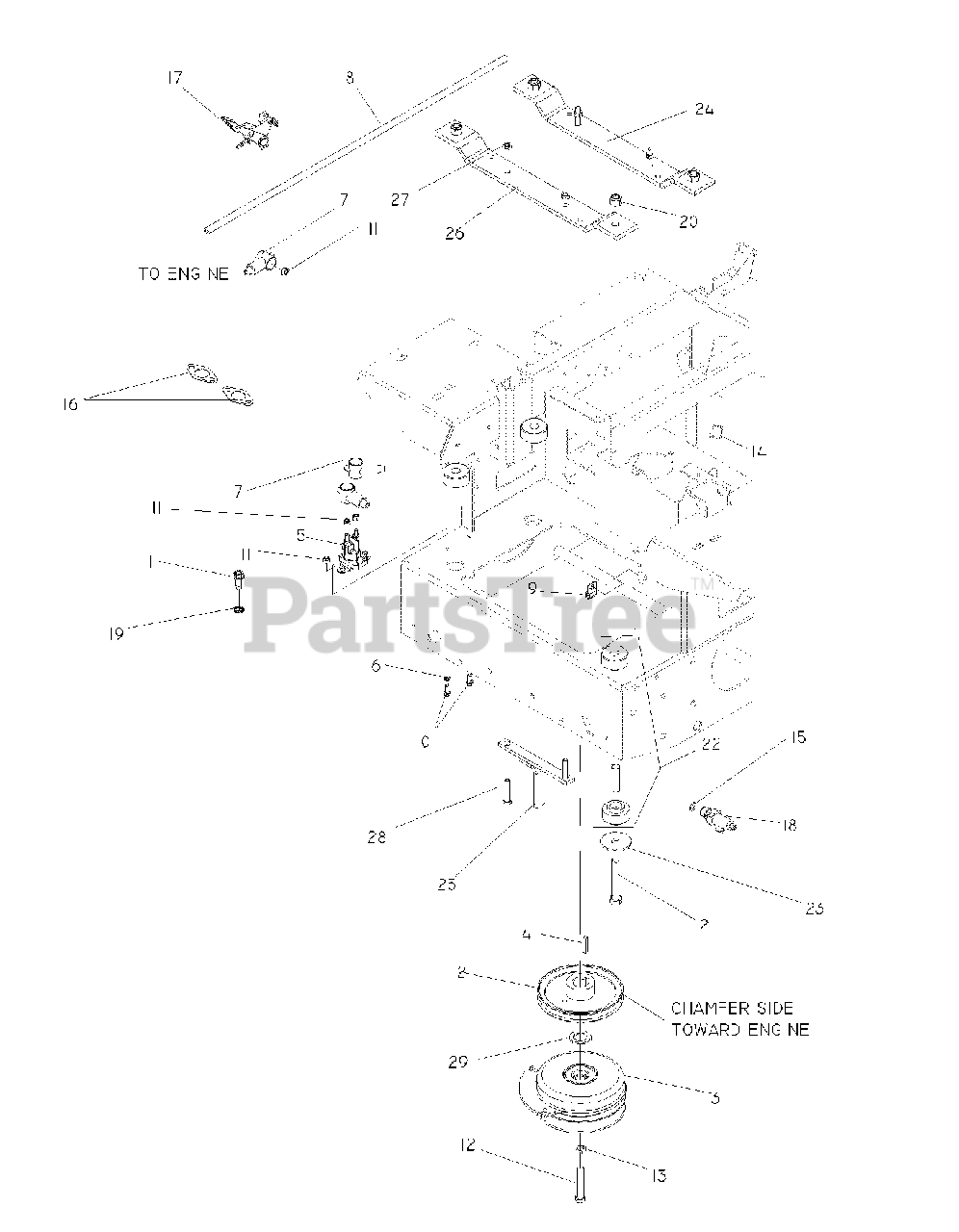

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

2

Dixon 539106992

PULLEY

$

$

Not available

3

Dixon 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

4

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

5

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

6

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

7

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

8

Dixon 539105281

FUEL LINE 29.5"
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

9

Dixon 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

10

Dixon 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

11

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

13

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

14

Dixon 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

15

Dixon 539109618

O-RING

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 539108199

EXHAUST GASKET - KAW

$

$

Not available

17

Dixon 539118815

CABLE CHOKE

$34.99

$

In Stock, only 2 left!

0

18

Dixon 539109587

VALVE ASSEMBLY

$15.99

$

Usually ships in 3-10 days

0

19

Dixon 539109603

WASHER 3/8 EXT STAR ZD

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

21

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

22

Dixon 539104958

ISOLATORS

$

$

Not available

23

Dixon 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

24

Dixon 539105025

ENGINE MOUNT

$

$

Not available

25

Dixon 539106819

CLUTCH TIE DOWN

$

$

Not available

26

Dixon 539114306

STRAP, ISO, REAR

Note: REAR

$

$

Not available

27

Dixon 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539113781

HCS 5/16-18 X 1-3/4 SERATED

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539102050

BUSHING, 10GA MACHINERY

$

$

Not available

Dixon 539104415

KAW PIGTAIL

Note: NOT SHOWN

$34.99

$

Usually ships in 3-10 days

0

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539119684

MUFFLER

Note: NOT SHOWN

$

$

Not available

Dixon 539105409

GROUND WIRE (KAW)

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0
