Kodiak 52 (968999578) - Dixon 52" Kodiak Zero-Turn Mower, 20hp Kohler (2007) ENGINE HONDA 20 HP Parts Diagram

52" Kodiak Zero-Turn Mower, 20hp Kohler

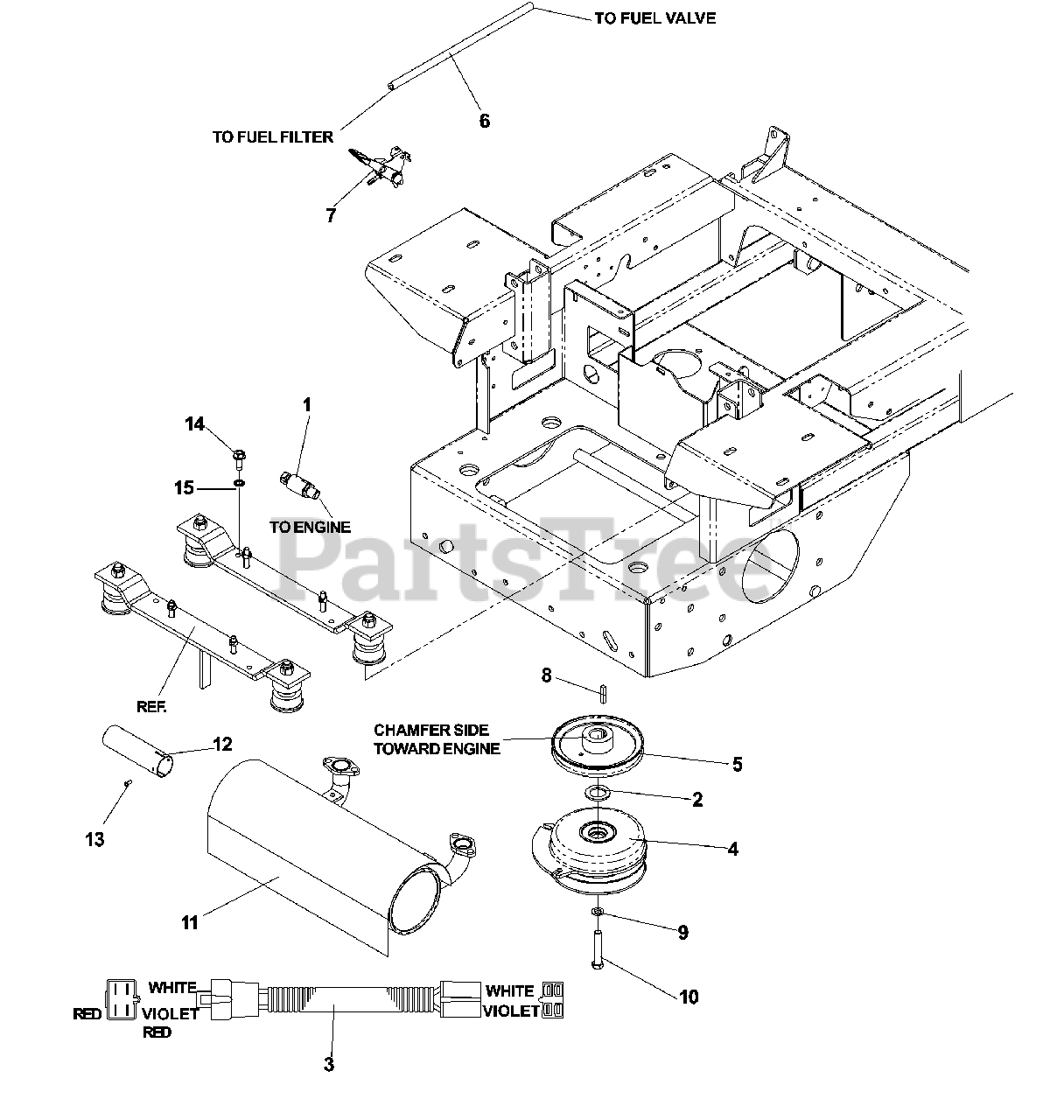

ENGINE HONDA 20 HP Parts Diagram

  • Title

1

Dixon 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

2

Dixon 539102050

BUSHING, 10GA MACHINERY

$

$

Not available

3

Dixon 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

4

Dixon 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

5

Dixon 539106992

PULLEY

$

$

Not available

6

Dixon 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

7

Dixon 539121866

CHOKE CABLE

$

$

Not available

8

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

9

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

10

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

11

Dixon 539118684

MUFFLER

$

$

Not available

12

Dixon 539114714

TUBE, EXTENSION, MUFFLER

$

$

Not available

13

Dixon 539108051

SCR #8 X 1/2 PHIL HD DRILL BLK

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

15

Dixon 539109603

WASHER 3/8 EXT STAR ZD

$3.99

$

Usually ships in 3-10 days

0

Dixon 539102757

CABLE POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Dixon 539117704

DECAL, KOHLER

Note: NOT SHOWN

$6.99

$

Usually ships in 3-10 days

0
