Kodiak 52 (968999576) - Dixon 52" Kodiak Zero-Turn Mower, 21hp Kawasaki (2007) CONTROLS Parts Diagram

52" Kodiak Zero-Turn Mower, 21hp Kawasaki

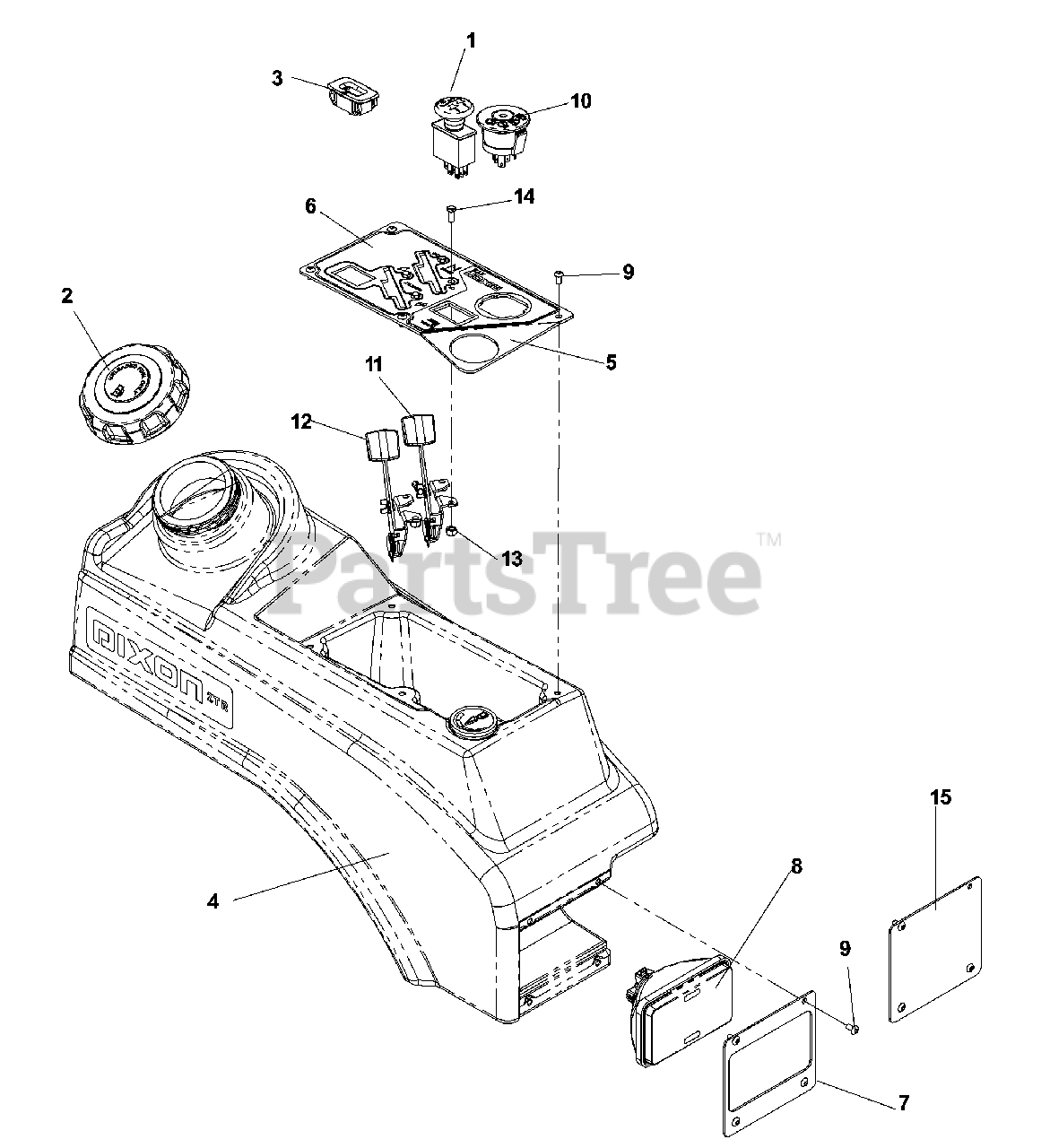

CONTROLS Parts Diagram

  • Title

1

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

2

Dixon 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

3

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

4

Dixon 539114058

TANK, FUEL, RT

$

$

Not available

5

Dixon 539114066

CONTROL PANEL

$

$

Not available

6

Dixon 539114068

DECAL, CONTROL

$10.99

$

Usually ships in 3-10 days

0

7

Dixon 539114075

PLATE LIGHT

Note: MODELS: 968999576, 968999577, 968999578, 968999579, 968999580

$24.99

$

Usually ships in 3-10 days

0

8

Dixon 539114232

LIGHT

Note: MODELS: 968999576, 968999577, 968999578, 968999579, 968999580

$

$

Not available

9

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

10

Dixon 539118848

IGNITION SWITCH
(Superseded to 539107541)

$26.99

$

In Stock, only 4 left!

0

11

Dixon 539118815

CABLE CHOKE

Note: MODELS: 968999576, 968999577, 968999581

$34.99

$

In Stock, only 1 left!

0

12

Dixon 539118816

CABLE THROTTLE

$26.99

$

In Stock, only 3 left!

0

13

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

14

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0
