Kodiak 50 - Dixon 50" Kodiak Zero-Turn Mower (2006) CONTROLS,TANKS & SEAT Parts Diagram

50" Kodiak Zero-Turn Mower

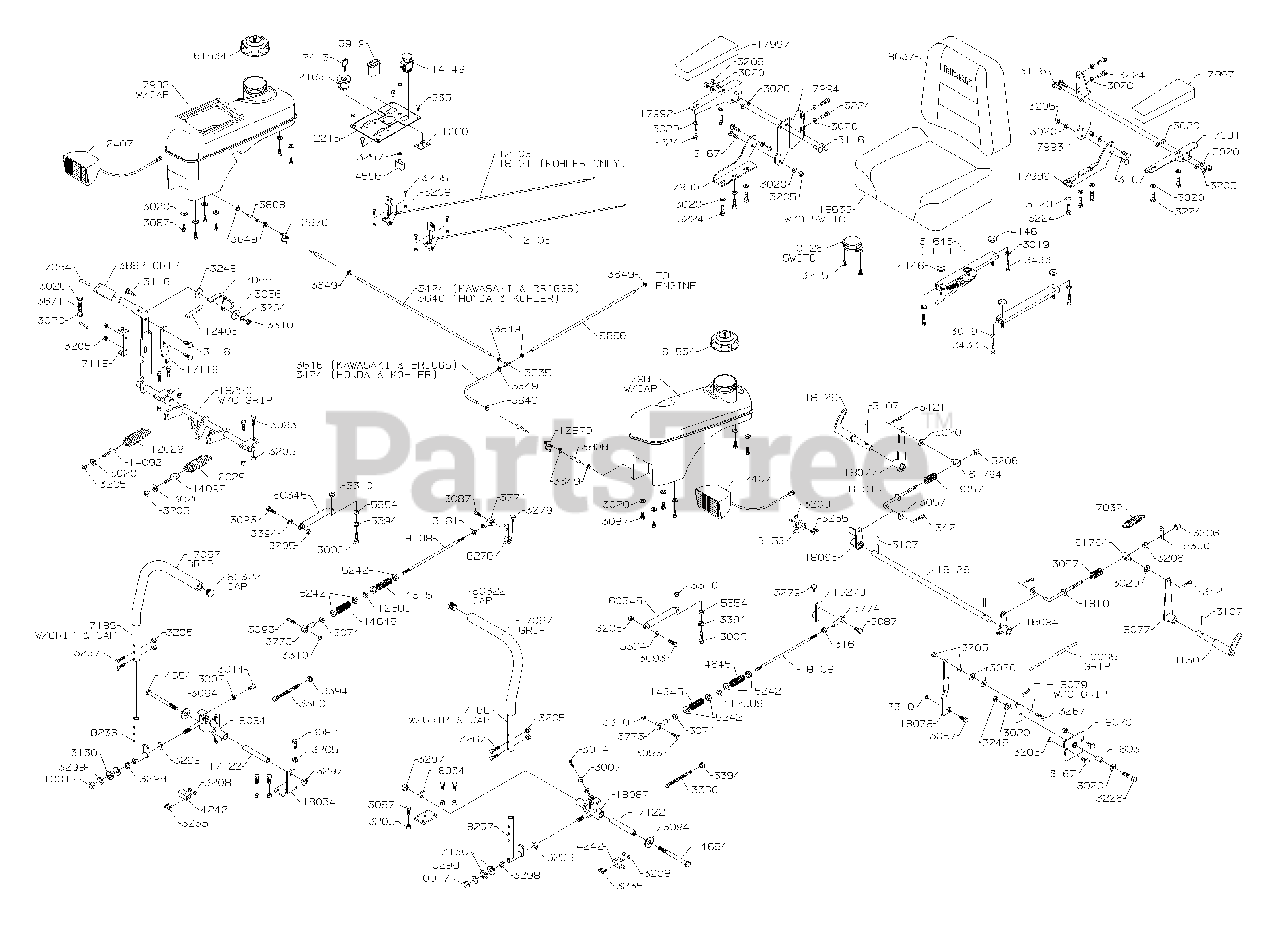

CONTROLS,TANKS & SEAT Parts Diagram

  • Title

1060

1060

$

$

Not available

1603

1603

BUSHING

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3279

3279

SET SCREW W/HEX HEAD

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3360

3360

5/16-18X4HHBG5 ALTHD

$

$

Not available

3384

Dixon 3384

M10X1.5X60 HHB GR8.8

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10065

10065

GRIP

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

12029

12029

SPRING

$

$

Not available

12105

12105

CABLE CHOKE

$

$

Not available

12106

12106

CABLE THROTTLE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12215

12215

CONTROL PANEL

$

$

Not available

12405

12405

GRIP

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12589

12589

LOCKING COLLAR

$

$

Not available

12870

12870

SHUT OFF VALVE

$

$

Not available

13057

13057

BRAKE SPRING

$

$

Not available

14092

14092

EYE BOLT

$

$

Not available

14149

14149

CLUTCH SWITCH

$

$

Not available

14645

14645

SPRING

$

$

Not available

14654

14654

1/2-13 X 6.0 HHB

$

$

Not available

17067

17067

GRIP

$

$

Not available

17084

17084

LIFT HANDLE CONTROL

$

$

Not available

17088

17088

LIFT TRIGGER (PLATED)

$

$

Not available

17118

17118

GUIDE-INSIDE (PLATED)

$

$

Not available

17119

17119

GUIDE-OUTSIDE (PLATED)

$

$

Not available

17122

17122

TUBE

$

$

Not available

17188

17188

CONTROL LEVER W/GRIP

$

$

Not available

17189

17189

CONTROL LEVER W/GRIP

$

$

Not available

17981

17981

LH FUEL TANK W/CAP

$

$

Not available

17982

17982

RH FUEL TANK W/CAP

$

$

Not available

17989

17989

SEAT BOT.BRKT. LH

$

$

Not available

17990

17990

SEAT BOT.BRKT. RH

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17992

17992

ARM REST BRACKET RH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

17997

17997

ARMREST

$

$

Not available

18034

18034

PIVOT PLATE

$

$

Not available

18070

18070

PIVOT WLDT.

$

$

Not available

18077

18077

DRILLED BRAKE ARM RH

$

$

Not available

18078

18078

BRAKE LINK

$

$

Not available

18079

18079

HANDLE

$

$

Not available

18084

18084

CONTROL RH (PLATED)

$

$

Not available

18087

18087

CONTROL LH (PLATED)

$

$

Not available

18094

18094

DRILL BELL CRANK LH

$

$

Not available

18095

18095

BELL CRANK RH DRILLED

$

$

Not available

18101

18101

BRAKE ROD

$

$

Not available

18108

18108

CONTROL ROD

$

$

Not available

18128

18128

BRAKE SHAFT (PLATED)

$

$

Not available

18129

18129

BRAKE SHAFT WLDT.(PLATED

$

$

Not available

18130

18130

BRAKE SHAFT LH(PLATED)

$

$

Not available

18156

18156

BRAKE SWITCH

$

$

Not available

18161

18161

CHOKE CABLE

$

$

Not available

18236

18236

CONTROL WLDT.RH(PLATED)

$

$

Not available

18237

18237

CONTROL WLDT.LH(PLATED)

$

$

Not available

18278

18278

CONTROL ARM DRILLED

$

$

Not available

18296

18296

LIFT SHAFT (PLATED)

$

$

Not available

18300

18300

BRKT.

$

$

Not available

18636

18636

SEAT BOTTOM

$

$

Not available

18637

18637

SEAT BACK

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
