Kodiak 50 - Dixon 50" Kodiak Zero-Turn Mower (2006) CHASSIS (MOUNTAIN KODIAK) Parts Diagram

50" Kodiak Zero-Turn Mower

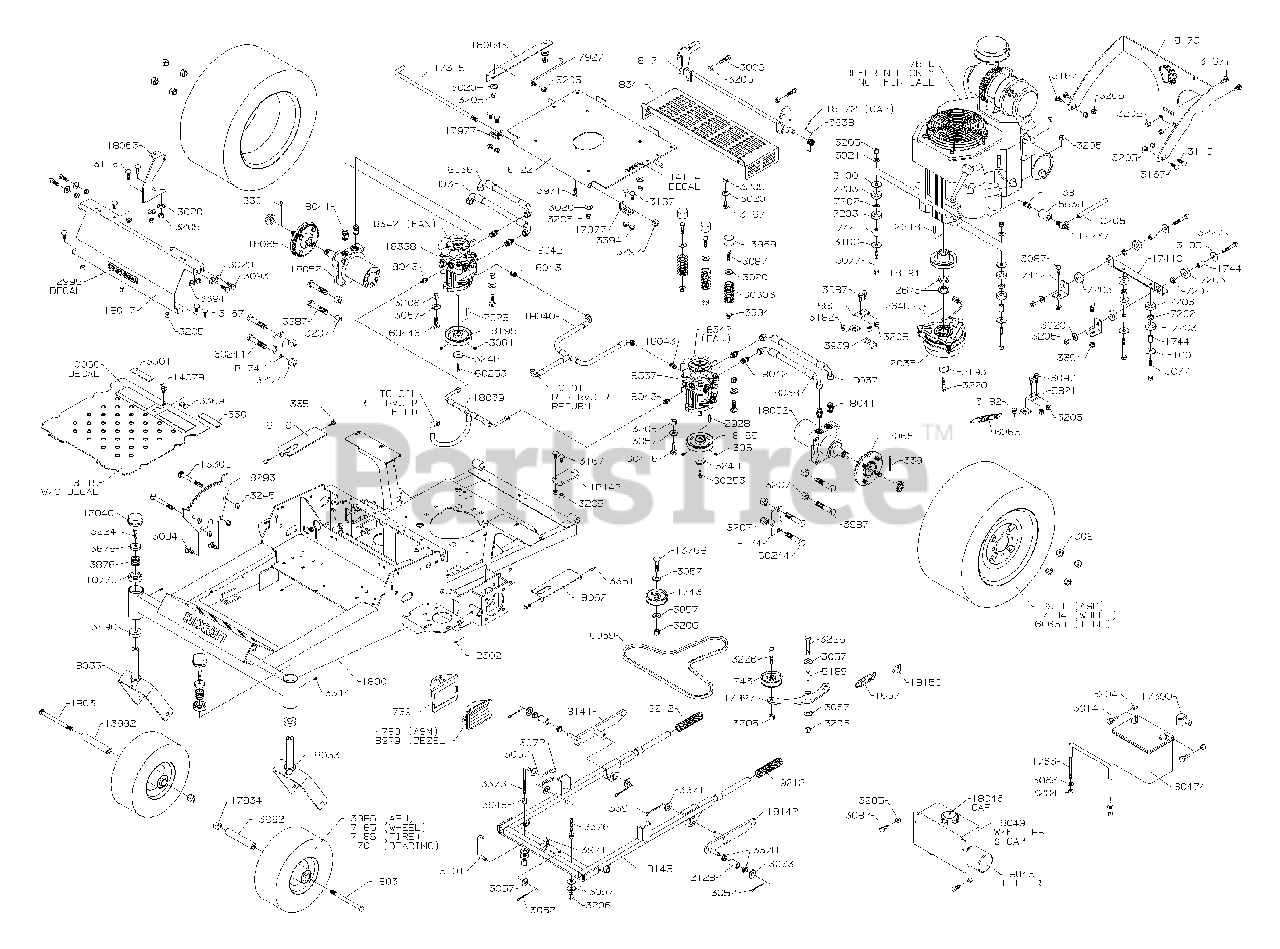

CHASSIS (MOUNTAIN KODIAK) Parts Diagram

  • Title

1657

1657

SPRING

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1744

1744

V-BELT

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3301

3301

FOAM PAD 1/8X1X4

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3371

3371

WASHER .76X1.25X.085

$

$

Not available

3376

3376

L-ROD 5`

$

$

Not available

3384

Dixon 3384

M10X1.5X60 HHB GR8.8

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3948

3948

FLIP-LOK BUSHING

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

7927

7927

ROD

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

10770

10770

BUSHING, CASTER

$

$

Not available

10959

10959

V-BELT

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12676

12676

BUSHING

$

$

Not available

13305

13305

3/8-16X3-1/2 CARR GR5.

$

$

Not available

13768

13768

CARR BOLT 3/8-16X14-3/4G5

$

$

Not available

13911

13911

TIRE/WHEEL ASM. #13911 KODIAK

$

$

Not available

13969

13969

$

$

Not available

13986

13986

CASTER WHEEL & TIRE ASM.

$

$

Not available

13992

13992

TUBE

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

17184

17184

WHEEL

$

$

Not available

17185

17185

WHEEL (REF.13985)

$

$

Not available

17186

17186

TIRE (REF.13985)

$

$

Not available

17315

17315

SEAT PIN

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17391

17391

BRACKET HEADLIGHT.

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17810

17810

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17897

17897

IDLER ARM WLDT.

$

$

Not available

17977

17977

SEAT PIVOT

$

$

Not available

18001

18001

$

$

Not available

18017

18017

FRONT PLATE

$

$

Not available

18031

18031

1/2-13 X 7 CARR. BOLT

$

$

Not available

18033

18033

CASTER WLDT.

$

$

Not available

18035

18035

HYDRAULIC HOSE-13.375

$

$

Not available

18036

18036

HYDRAULIC HOSE-11.375

$

$

Not available

18037

18037

HYDRAULIC HOSE-13.188

$

$

Not available

18038

18038

HYDRAULIC HOSE-11.312

$

$

Not available

18039

18039

HYDRAULIC HOSE T-ASM

$

$

Not available

18040

18040

HYDRAULIC HOSE T-ASM.

$

$

Not available

18041

18041

FITTING HYDRAULIC

$

$

Not available

18042

18042

FITTING HYDRAULIC

$

$

Not available

18043

18043

FITTING HYDRAULIC

$

$

Not available

18045

18045

25 MICRON FILTER

$

$

Not available

18046

18046

HYDRO TANK CAP-KELCH

$

$

Not available

18049

18049

TANK ASM W/FILTER & CAP

$

$

Not available

18052

18052

WHEEL MOTOR

$

$

Not available

18062

18062

HYDRO COVER LH

$

$

Not available

18063

18063

SEAT PLATE ANCHOR

$

$

Not available

18064

18064

SLIDE SEAT ROD

$

$

Not available

18065

18065

HUB ASM W/BRAKE & LUGS

$

$

Not available

18115

18115

FOOT PLATE

$

$

Not available

18116

18116

HYDRO COVER RH

$

$

Not available

18122

18122

SEAT PLATE WLDT.

$

$

Not available

18141

18141

LIFT CAM DRILLED-RH

$

$

Not available

18142

18142

LIFT CAM DRILLED-LH

$

$

Not available

18145

18145

LIFT FRAME WLDT

$

$

Not available

18148

18148

HITCH

$

$

Not available

18150

18150

SPRING BRKT.

$

$

Not available

18171

18171

LATCH WLDT. (PLATED)

$

$

Not available

18172

18172

PLASTIC CAP

$

$

Not available

18173

18173

REAR GUARD

$

$

Not available

18174

18174

ALIGNMENT PLATE

$

$

Not available

18194

18194

PULLEY

$

$

Not available

18195

18195

PULLEY

$

$

Not available

18293

18293

QUADRANT (PLATED)

$

$

Not available

18337

18337

PUMP-LH 10CC W/FAN

$

$

Not available

18338

18338

PUMP-RH 10CC W/FAN

$

$

Not available

18341

18341

FAN GUARD

$

$

Not available

18342

18342

FAN

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60253

60253

CAPSCREW HH 6MM X 16MM

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60446

60446

3/8-16X1-1/4 CARRIAGE

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

60650

60650

R/B 60178 REAR TIRE 20`

$

$

Not available
