KMS 27A-A4 - Kawasaki Multi-Task Series Power Unit PIPE/HANDLE/GUARD Parts Diagram

Multi-Task Series Power Unit

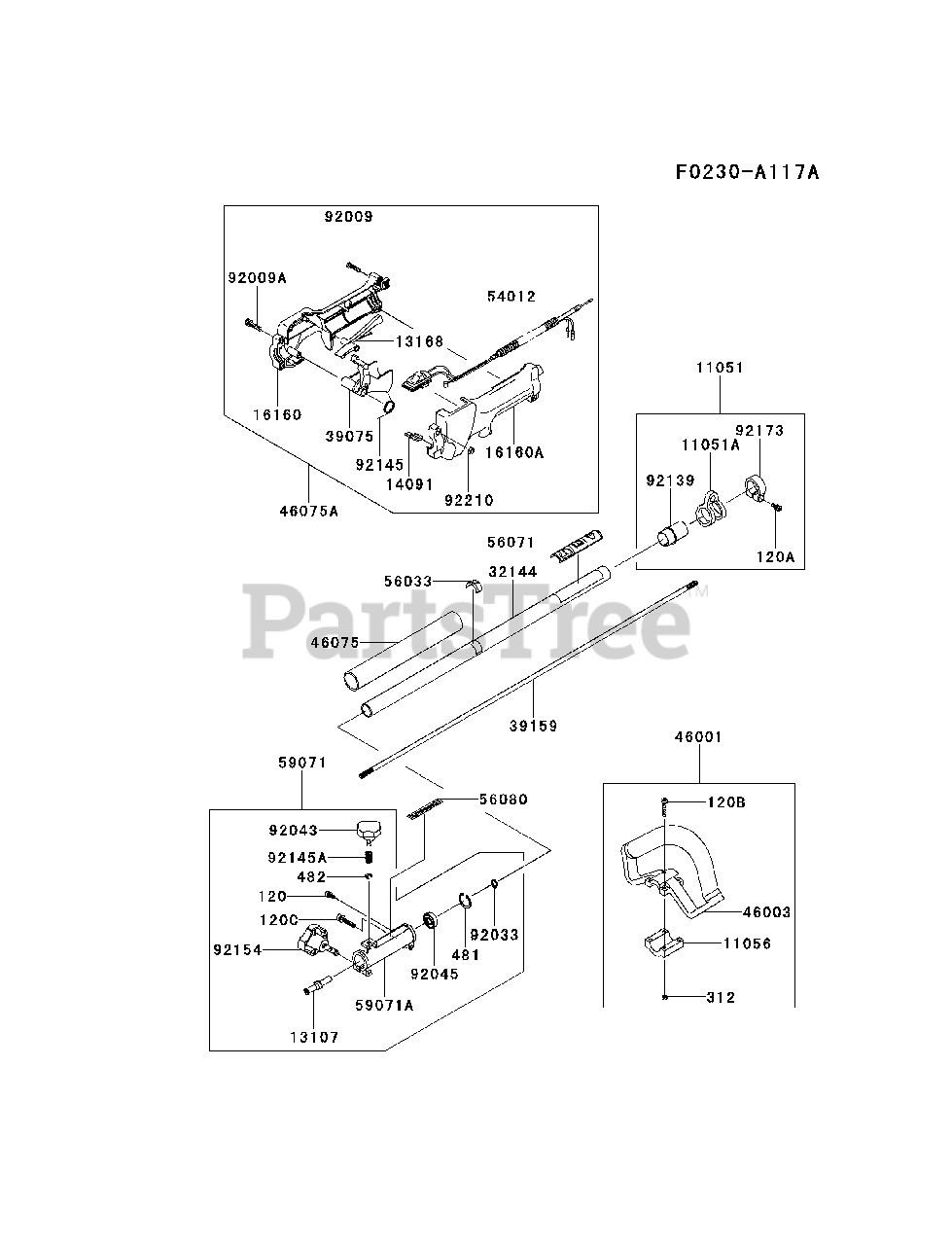

PIPE/HANDLE/GUARD Parts Diagram

  • Title

11051

Kawasaki 11051-R001

BRACKET,SET

$21.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-R002

BRACKET

$12.99

$

Usually ships in 2-5 days

0

11056

Kawasaki 11056-V001

BRACKET,HANDLE

$8.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-V002

SHAFT,JOINT
(Superseded to 13107-X003)

$36.99

$

In Stock, only 2 left!

0

13168

Kawasaki 13168-X001

LEVER,STOP
(Superseded to 13168-R001)

$10.99

$

In Stock, only 1 left!

0

14091

Kawasaki 14091-X001

COVER,TOP

$

$

Not available

16160

Kawasaki 16160-X001

BODY,GRIP,RH

$21.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-X002

BODY,GRIP,LH

$21.99

$

Usually ships in 2-5 days

0

32144

Kawasaki 32144-X003

PIPE-ASSY

$63.99

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075-X001

LEVER-THROTTLE

$13.99

$

Usually ships in 2-5 days

0

39159

Kawasaki 39159-X003

SHAFT-DRIVE

$

$

Not available

46001

Kawasaki 46001-V005

HANDLE-ASSY
(Superseded to 46001-X002)

$36.99

$

Usually ships in 2-5 days

0

46003

Kawasaki 46003-X002

HANDLE

$29.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-V002

GRIP,130

$23.99

$

Usually ships in 2-5 days

0

46075A

Kawasaki 46075-X001

GRIP,ASSY

$117.99

$

Usually ships in 2-5 days

0

54012

Kawasaki 54012-X001

CABLE-THROTTLE,ASSY

$36.99

$

Usually ships in 2-5 days

0

56033

Kawasaki 56033-2064

LABEL-MANUAL

$0.99

$

Usually ships in 2-5 days

0

56071

Kawasaki 56071-V001

LABEL-WARNING

$4.99

$

Usually ships in 2-5 days

0

56080

Kawasaki 56080-V001

LABEL-BRAND,KAWASAKI

$8.49

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-V002

JOINT,ASSY
(Superseded to 59071-V003)

$109.99

$

In Stock, only 1 left!

0

59071A

Kawasaki 59071-X002

JOINT

$34.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-X001

SCREW,4X20

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009-X002

SCREW,5X20

$1.49

$

In Stock, only 4 left!

0

92033

Kawasaki 92033-X001

RING-SNAP,DIA=9

$2.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-V004

PIN,STOPPER

$16.99

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-T011

BEARING-BALL,609ZZ C3

$10.99

$

Usually ships in 2-5 days

0

92139

Kawasaki 92139-R001

BUSHING

$6.49

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-X001

SPRING,RETURN

$1.99

$

In Stock, only 3 left!

0

92145A

Kawasaki 92145-X004

SPRING

$1.49

$

In Stock, Qty 9

0

92154

Kawasaki 92154-V019

BOLT,KNOB

$8.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 92173-R001

CLAMP

$11.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-X001

NUT,M5

$0.99

$

In Stock, Qty 8

0

120

Kawasaki 120CB0512

BOLT-SOCKET,5X12

$

$

Currently unavailable

120A

Kawasaki 120CB0525

BOLT-SOCKET,5X25
(Superseded to 120W0525)

$1.49

$

In Stock, Qty 9

0

120B

Kawasaki 120CB0530

BOLT-SOCKET,5X30
(Superseded to 120W0530)

$0.99

$

Usually ships in 2-5 days

0

120C

Kawasaki 120CB0630

BOLT-SOCKET,6X30
(Superseded to 120Q0630)

$

$

Not available

312

Kawasaki 312AB0500

NUT-HEX,5MM
(Superseded to 312C0500)

$0.99

$

Usually ships in 2-5 days

0

481

Kawasaki 481J2400

CIRCLIP,24MM

$3.99

$

Usually ships in 2-5 days

0

482

Kawasaki 482J5000

CIRCLIP-TYPE-E,5MM

$3.99

$

Usually ships in 2-5 days

0
