KHT 750 SC (KHT750SC-A1) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

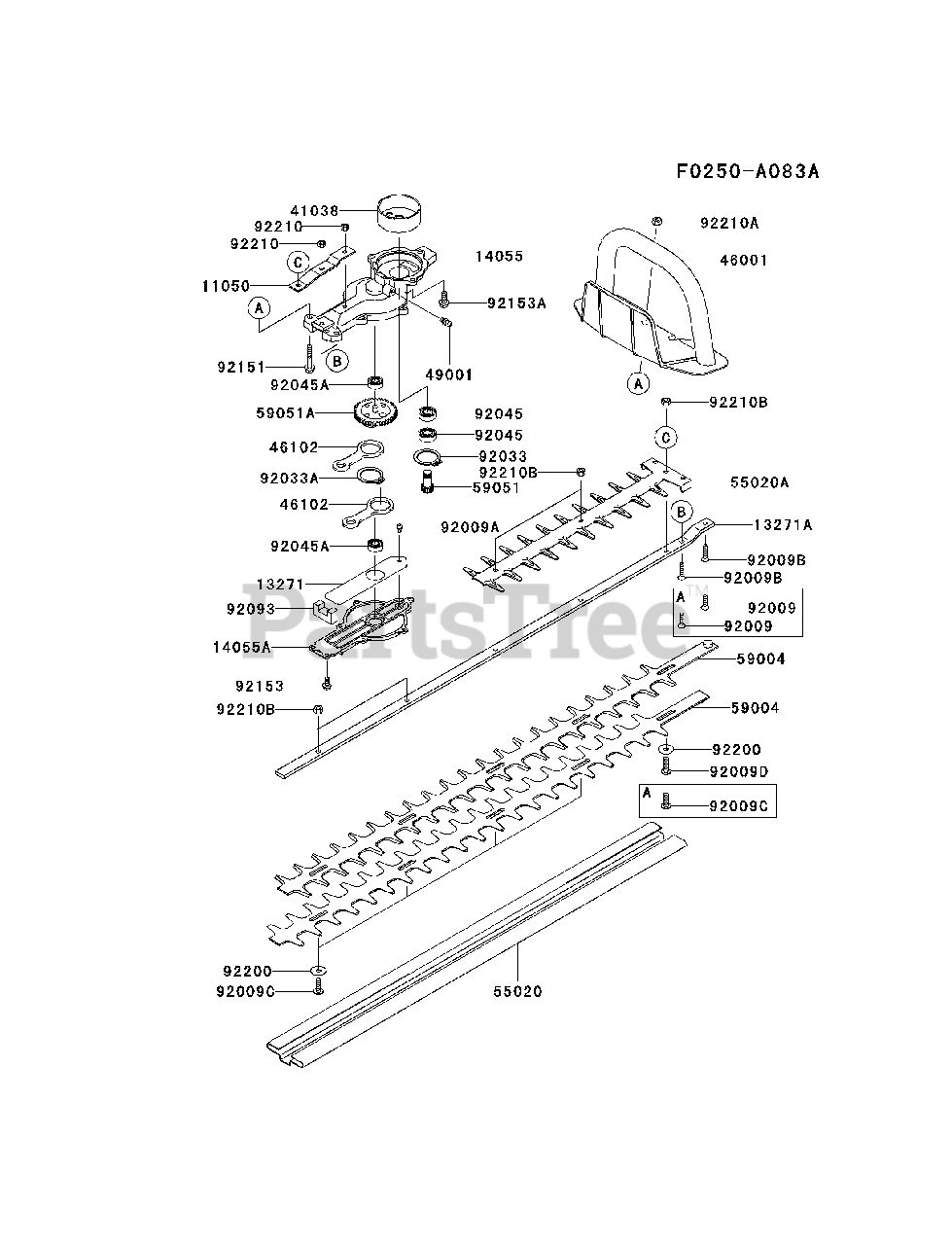

CASE/CUTTER Parts Diagram

  • Title

13271

Kawasaki 13271-V002

PLATE

$11.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-V004

PLATE

$111.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-V001

CASE-GEAR,UPP

$82.99

$

Usually ships in 2-5 days

0

14055A

Kawasaki 14055-V002

CASE-GEAR,LWR

$41.99

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-2080

DRUM,CLUTCH

$23.99

$

Usually ships in 2-5 days

0

46001

Kawasaki 46001-2094

HANDLE-ASSY,FR,D

$35.99

$

In Stock, only 1 left!

0

46102

Kawasaki 46102-V001

ROD,CUTTER
(Superseded to 46102-V004)

$46.99

$

In Stock, Qty 6

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-V002

GUARD,CUTTER

$16.99

$

In Stock, only 1 left!

0

55020A

Kawasaki 55020-2135

GUARD,BLAID,D
(Superseded to 55020-V007)

$12.99

$

In Stock, Qty 6

0

59004

Kawasaki 59004-V004

CUTTER
(Superseded to 59004-V009)

$109.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-V001

GEAR-SPUR

$50.99

$

Usually ships in 2-5 days

0

59051A

Kawasaki 59051-V002

GEAR-SPUR

$98.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-V001

SCREW,5X16

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009-V002

SCREW,4X8

$0.99

$

In Stock, Qty 10

0

92009C

Kawasaki 92009-2423

SCREW,L=19

$2.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-V001

RING-SNAP,DIA=28

$0.99

$

In Stock, Qty 10

0

92033A

Kawasaki 92033-2182

RING-SNAP,DIA=26

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$10.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, only 4 left!

0

92093

Kawasaki 92093-V001

SEAL

$6.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2112

BOLT,6X35

$0.99

$

In Stock, Qty 18

0

92153

Kawasaki 92153-V001

BOLT,5X12

$0.99

$

In Stock, Qty 10

0

92153A

Kawasaki 92153-V002

BOLT,6X16

$1.49

$

In Stock, only 2 left!

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 20+

0

92210

Kawasaki 92210-V001

NUT,M5

$0.99

$

In Stock, Qty 5

0

92210A

Kawasaki 92210-V002

NUT,M6

$0.99

$

Usually ships in 2-5 days

0

92210B

Kawasaki 92210-2066

NUT,M6

$0.99

$

In Stock, Qty 20+

0
