KHT 600 SC (KHT600SC-A2) - Kawasaki Hedge Trimmer CYLINDER/CRANKCASE Parts Diagram

Hedge Trimmer

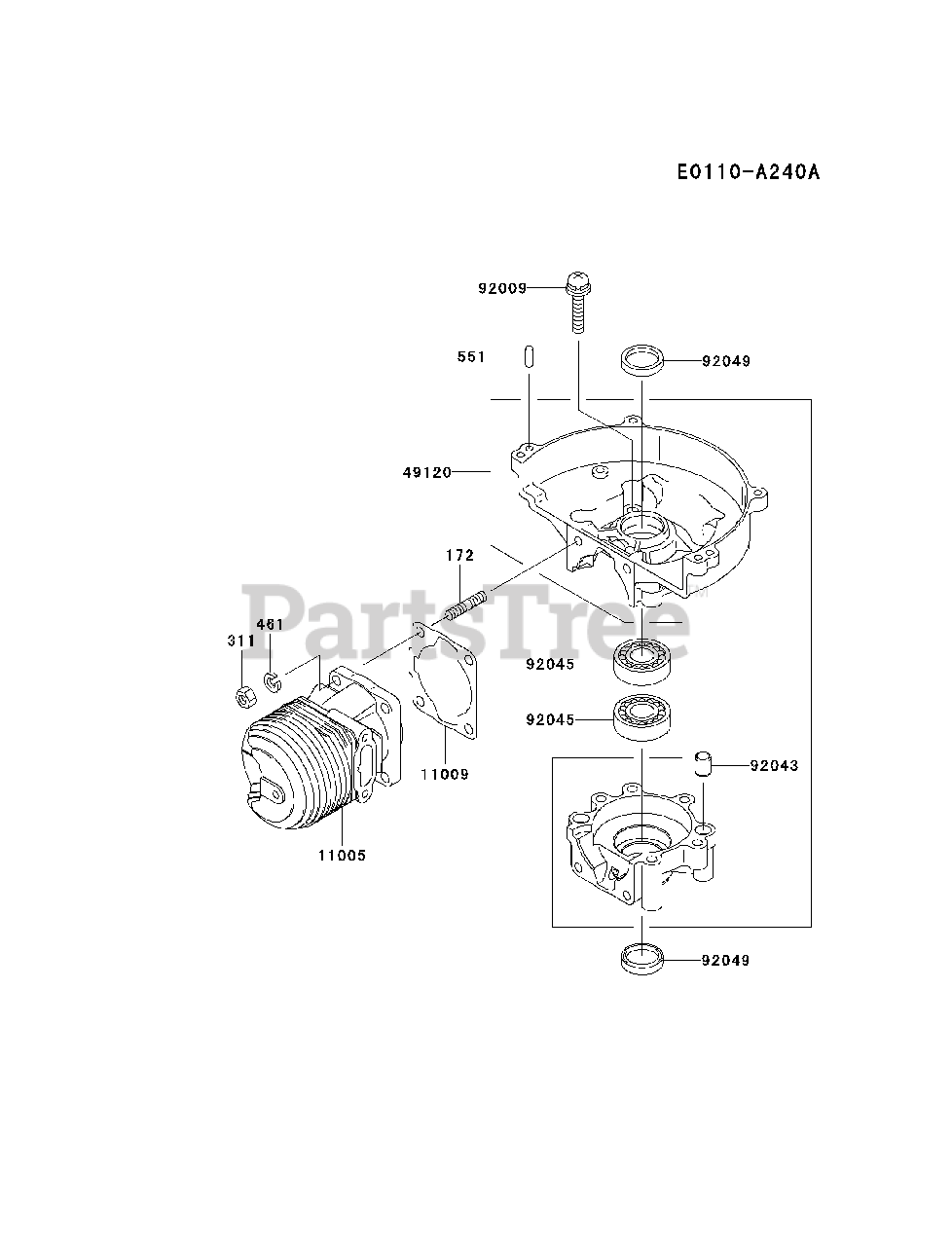

CYLINDER/CRANKCASE Parts Diagram

  • Title

11005

Kawasaki 11005-2146

CYLINDER-ENGINE

$201.99

$

Usually ships in 2-5 days

0

11009

Kawasaki 11009-2796

GASKET,CYLINDER
(Superseded to 11009-2286)

$1.99

$

In Stock, only 4 left!

0

49120

Kawasaki 49120-6124

CRANKCASE-COMP
(Superseded to 49120-6018)

$157.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2115

SCREW
(Superseded to 311501-4174-00)

$0.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-1302

PIN

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2060

BEARING-BALL,6001V3

$15.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2108

SEAL-OIL

$8.49

$

Usually ships in 2-5 days

0

172

Kawasaki 172BA0514

BOLT-STUD,5X14
(Superseded to 172G0514)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0500

NUT-HEX,5MM
(Superseded to 311AA0500)

$0.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0500

WASHER-SPRING,5MM
(Superseded to 461DA0500)

$0.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0410

PIN-DOWEL,4X10

$0.99

$

In Stock, Qty 10

0
