KHT 600 D (KHT600D-A2) - Kawasaki Hedge Trimmer FUEL-TANK/FUEL-VALVE Parts Diagram

Hedge Trimmer

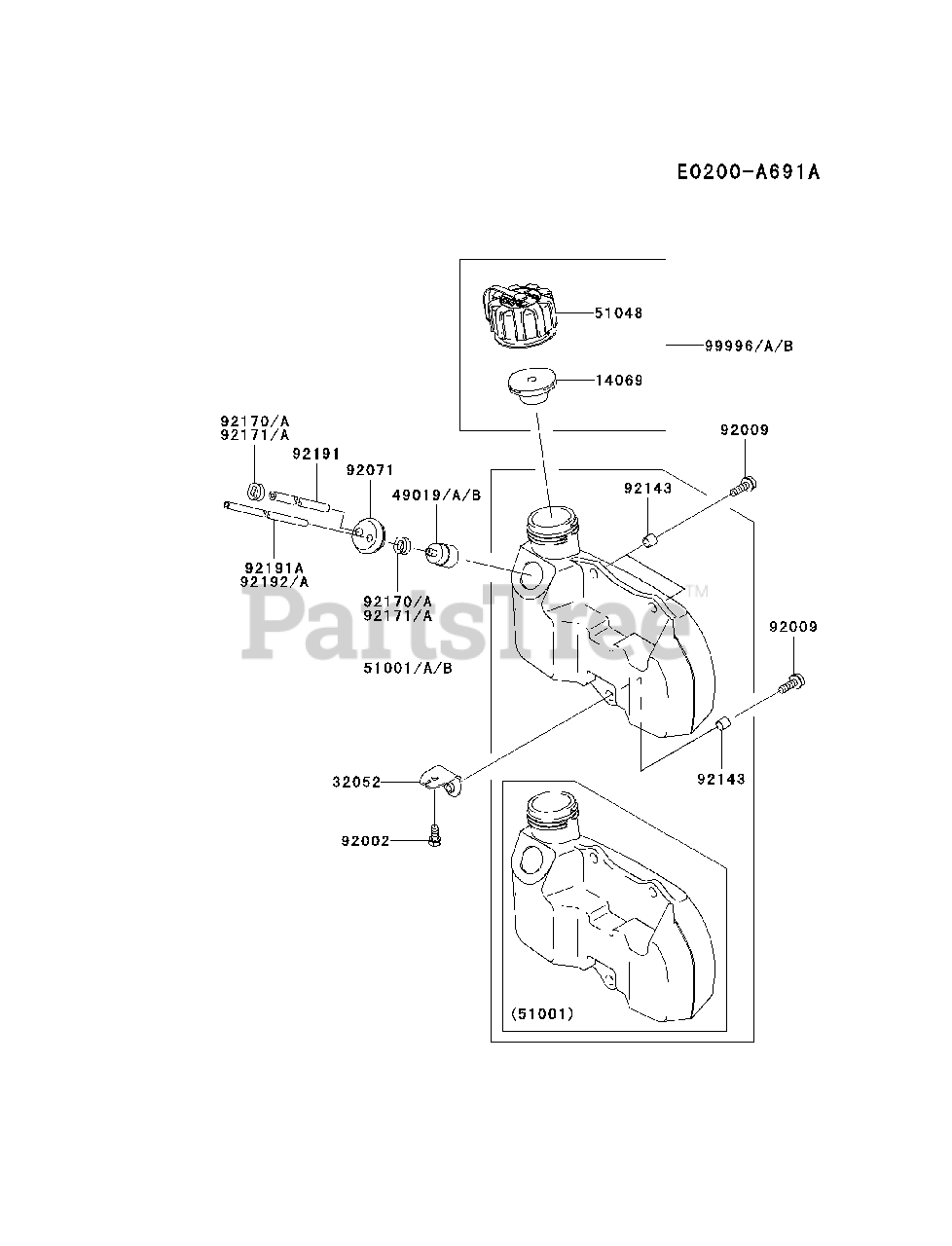

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
14069

Kawasaki 14069-2088

BREATHER
(Superseded to 14069-0013)

$16.99

$

In Stock, Qty 5

0

32052

Kawasaki 32052-2228

BRACKET-TANK
(Superseded to 32052-0715)

$10.99

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2114

FILTER-FUEL

$13.99

$

In Stock, Qty 20+

0

51001A

Kawasaki 51001-2329

TANK-COMP-FUEL
(Superseded to 51001-2310)

$58.99

$

In Stock, only 1 left!

0

51048

Kawasaki 51048-2083

CAP-ASSY-TANK

$12.99

$

In Stock, Qty 7

0

92002

$0.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2368

SCREW,5X16

$1.49

$

Usually ships in 2-5 days

0

92071

Kawasaki 92071-2142

GROMMET,FUEL TANK

$4.99

$

In Stock, Qty 20+

0

92143

Kawasaki 92143-2161

COLLAR,TANK

$0.99

$

In Stock, only 2 left!

0

92171

$1.49

$

In Stock, Qty 20+

0

92191

$4.49

$

In Stock, Qty 16

0

92192

Kawasaki 92192-2148

TUBE,3X6X145

$11.99

$

In Stock, only 2 left!

0

99996A

Kawasaki 99996-6089

CAP-TANK & BREATHER,ASSY
(Superseded to 99996-6101)

$19.99

$

In Stock, Qty 11

0
