KHS 750 BC (KHS750BC-A2) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

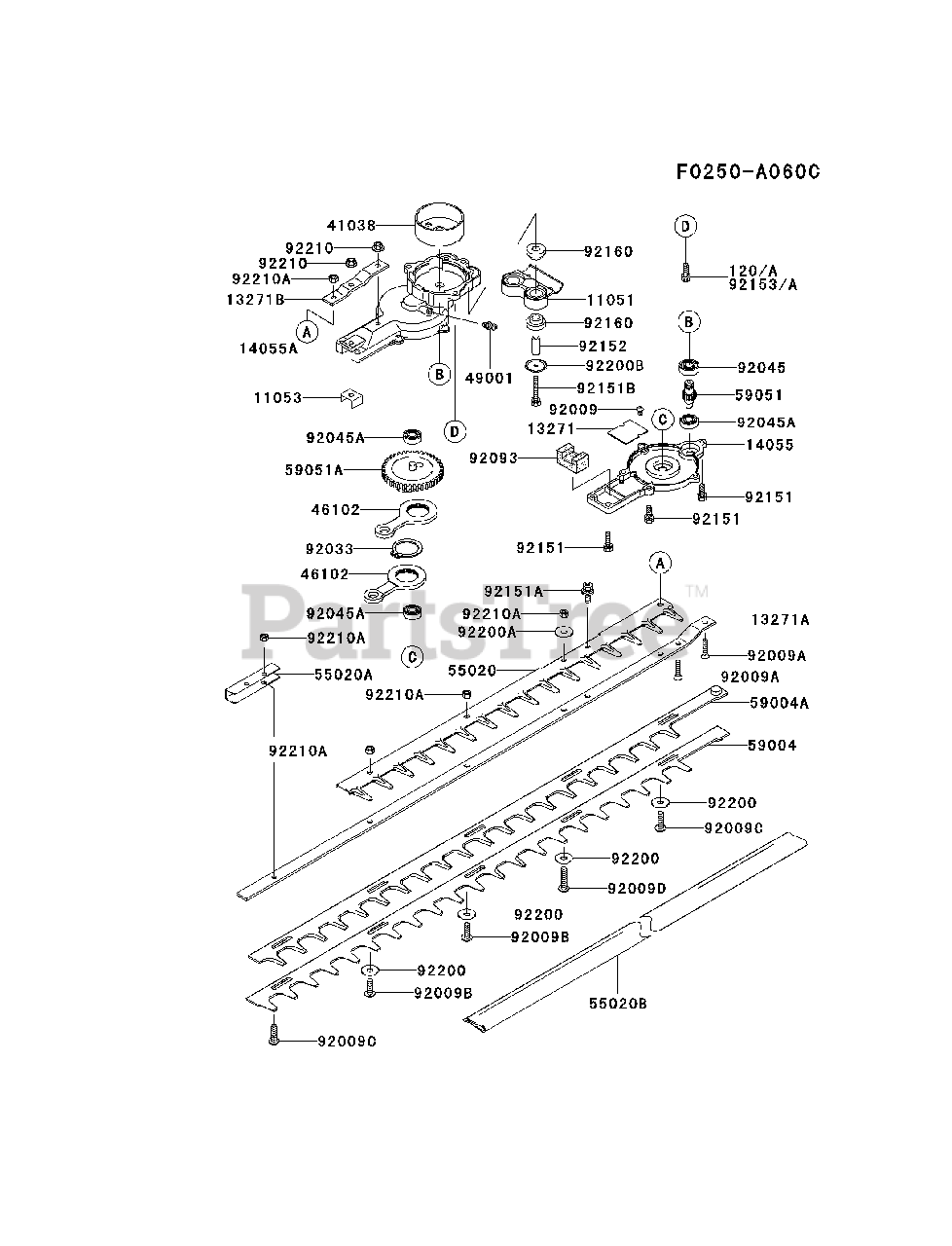

CASE/CUTTER Parts Diagram

  • Title

11051

Kawasaki 11051-2054

BRACKET

$8.49

$

Usually ships in 2-5 days

0

11053

Kawasaki 11053-2085

BRACKET

$7.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2069

PLATE,ROD

$5.49

$

In Stock, only 1 left!

0

13271A

Kawasaki 13271-2071

PLATE

$64.99

$

Usually ships in 2-5 days

0

13271B

Kawasaki 13271-2233

PLATE

$8.49

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-2255

CASE-GEAR,LWR

$41.99

$

Usually ships in 2-5 days

0

14055A

Kawasaki 14055-2256

CASE-GEAR,UPP

$112.99

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-2080

DRUM,CLUTCH

$23.99

$

Usually ships in 2-5 days

0

46102

Kawasaki 46102-2081

ROD,CUTTER
(Superseded to 46102-V003)

$49.99

$

Usually ships in 2-5 days

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2137

GUARD,BLAID,S

$

$

Not available

55020A

Kawasaki 55020-2138

GUARD,TOP,S

$5.99

$

Usually ships in 2-5 days

0

55020B

Kawasaki 55020-2139

GUARD,CUTTER,S

$16.99

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004-2018

CUTTER,LWR,S

$73.99

$

Usually ships in 2-5 days

0

59004A

Kawasaki 59004-2019

CUTTER,UPP,S

$73.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2350

GEAR-SPUR

$50.99

$

Usually ships in 2-5 days

0

59051A

Kawasaki 59051-2351

GEAR-SPUR

$103.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2421

SCREW,3X5

$0.99

$

In Stock, Qty 7

0

92009A

Kawasaki 92009-2422

SCREW,5X20

$0.99

$

In Stock, Qty 12

0

92009B

Kawasaki 92009-2423

SCREW,L=19

$2.49

$

In Stock, Qty 20+

0

92009C

Kawasaki 92009-2424

SCREW,L=22

$2.49

$

In Stock, only 2 left!

0

92009D

Kawasaki 92009-2426

SCREW,L=29

$3.99

$

In Stock, only 2 left!

0

92033

Kawasaki 92033-2182

RING-SNAP,DIA=26

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$10.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, only 4 left!

0

92093

Kawasaki 92093-2125

SEAL

$11.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2109

BOLT,5X16

$1.49

$

In Stock, Qty 5

0

92151A

Kawasaki 92151-2111

BOLT,6X20

$0.99

$

In Stock, Qty 6

0

92151B

Kawasaki 92151-2112

BOLT,6X35

$0.99

$

In Stock, Qty 18

0

92152

Kawasaki 92152-2059

COLLAR

$3.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-V002

BOLT,6X16

$1.49

$

In Stock, only 2 left!

0

92160

Kawasaki 92160-2049

DAMPER

$4.99

$

In Stock, Qty 5

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-2104

WASHER

$1.49

$

In Stock, only 4 left!

0

92200B

Kawasaki 92200-2105

WASHER

$2.49

$

In Stock, only 2 left!

0

92210

Kawasaki 92210-2065

NUT,M5

$0.99

$

In Stock, Qty 9

0

92210A

Kawasaki 92210-2066

NUT,M6

$0.99

$

In Stock, Qty 20+

0
