KHS 750 BC (KHS750BC-A1) - Kawasaki Hedge Trimmer ELECTRIC-EQUIPMENT Parts Diagram

Hedge Trimmer

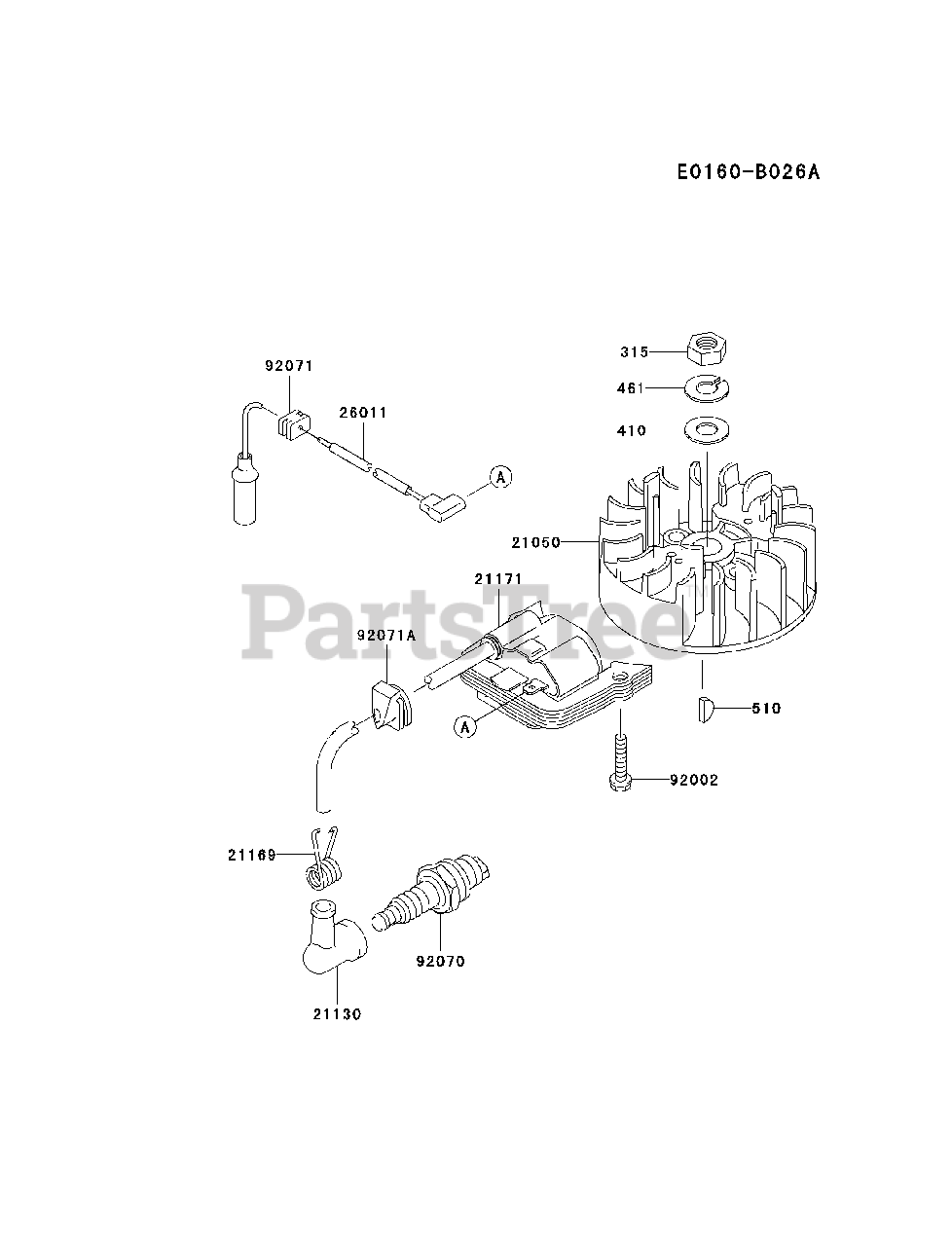

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21050

Kawasaki 21050-2194

FLYWHEEL
(Superseded to 21050-2178)

$154.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2056

CAP-SPARK PLUG
(Superseded to 3119AA-8418D)

$5.49

$

In Stock, Qty 18

0

21169

Kawasaki 21169-2051

TERMINAL
(Superseded to 311509-8419B)

$

$

Not available

21171

Kawasaki 21171-2205

COIL-ASSY-IGNITION

$128.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2332

WIRE-LEAD,L=200

$4.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2197

BOLT,4X20
(Superseded to 311510-8127A)

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2074

PLUG-SPARK,BMR7A,SOLID
(Superseded to BMR7A)

Note: NGK

$3.49

$

In Stock, Qty 7

0

92071

Kawasaki 92071-2065

GROMMET

$

$

Not available

92071A

Kawasaki 92071-2115

GROMMET

$1.99

$

Usually ships in 2-5 days

0

315

Kawasaki 315AA0800

NUT-HEX-FINE,8MM

$4.99

$

Usually ships in 2-5 days

0

410

Kawasaki 410AA0800

W-PLAIN-S,8MM
(Superseded to 917148)

$

$

Not available

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A3100

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0
