KHS 1100 A (KHS1100A-A1) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

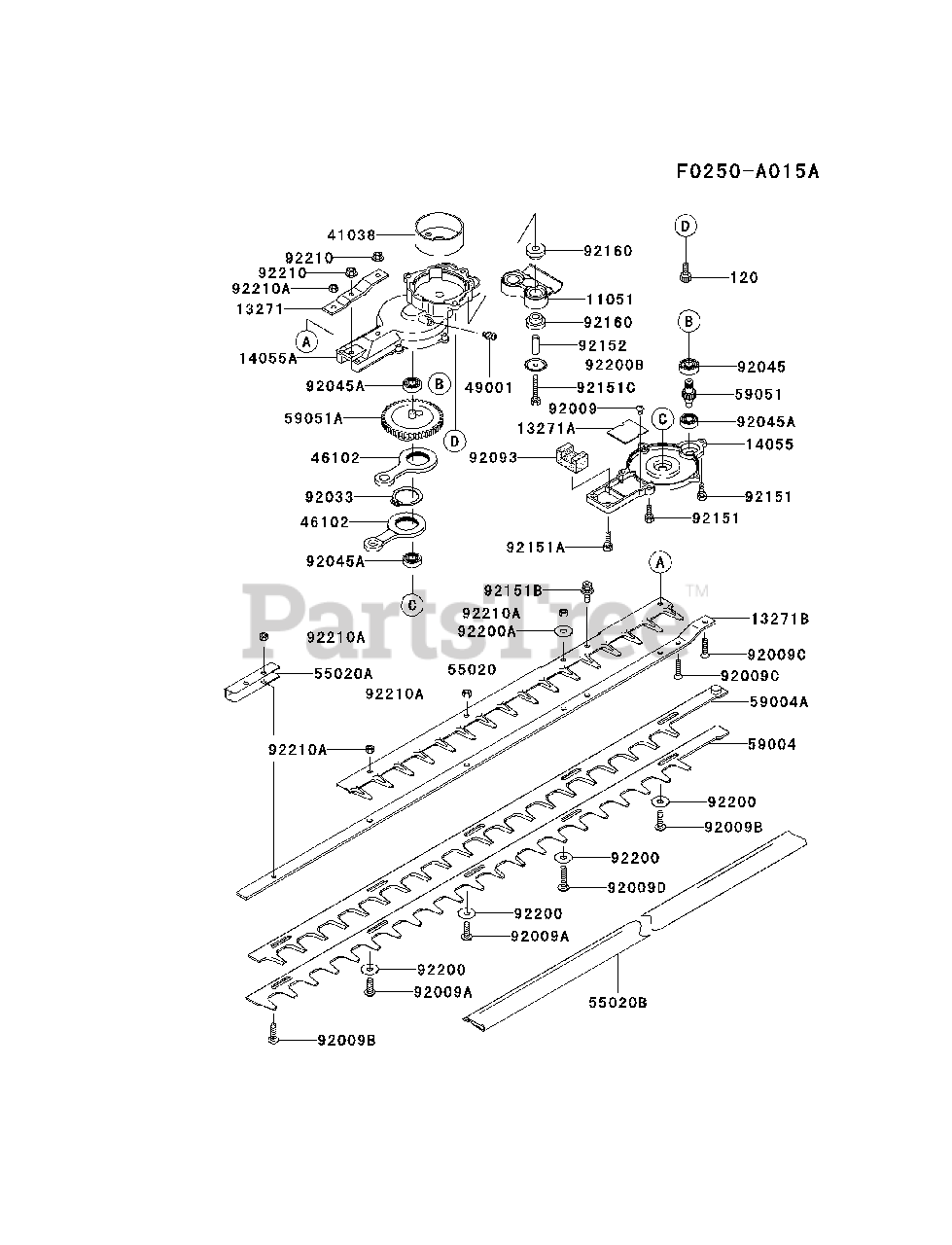

CASE/CUTTER Parts Diagram

  • Title
11051

$8.49

$

Usually ships in 2-5 days

0

13271

$5.99

$

Usually ships in 2-5 days

0

13271A

$5.49

$

In Stock, only 1 left!

0

13271B

Kawasaki 99971-0011

PLATE
(Superseded to 13271-V003)

$103.99

$

In Stock, only 1 left!

0

14055

Kawasaki 14055-2227

CASE-GEAR,LWR

$

$

Not available

14055A

Kawasaki 14055-2228

CASE-GEAR,UPP,S

$

$

Not available

41038

Kawasaki 41038-2080

DRUM,CLUTCH

$23.99

$

Usually ships in 2-5 days

0

46102

Kawasaki 46102-2081

ROD,CUTTER
(Superseded to 46102-V003)

$49.99

$

Usually ships in 2-5 days

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2137

GUARD,BLADE,S

$

$

Not available

55020A

Kawasaki 99971-0015

GUARD,TOP,S

$6.49

$

Usually ships in 2-5 days

0

55020B

Kawasaki 99971-0014

GUARD,CUTTER,S
(Superseded to 55020-V001)

$18.99

$

Usually ships in 2-5 days

0

59004

Kawasaki 99971-0013

CUTTER,LWR,S
(Superseded to 59004-V002)

$139.99

$

Usually ships in 2-5 days

0

59004A

Kawasaki 99971-0012

CUTTER,UPP,S
(Superseded to 59004-V003)

$133.99

$

Usually ships in 2-5 days

0

59051

$50.99

$

Usually ships in 2-5 days

0

59051A

$103.99

$

In Stock, only 1 left!

0

92009

$0.99

$

In Stock, Qty 7

0

92009A

Kawasaki 92009-2423

SCREW,L=19

$2.49

$

In Stock, Qty 20+

0

92009B

Kawasaki 92009-2424

SCREW,L=22

$2.49

$

In Stock, only 2 left!

0

92009C

Kawasaki 92009-2425

SCREW,5X20
(Superseded to 92009-2422)

$0.99

$

In Stock, Qty 12

0

92009D

Kawasaki 92009-2426

SCREW,L=29

$3.99

$

In Stock, only 2 left!

0

92033

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$10.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, only 4 left!

0

92093

$6.49

$

In Stock, only 3 left!

0

92151

$1.49

$

In Stock, Qty 5

0

92151A

$0.99

$

Usually ships in 2-5 days

0

92151B

$0.99

$

In Stock, Qty 6

0

92151C

$0.99

$

In Stock, Qty 18

0

92152

$3.99

$

Usually ships in 2-5 days

0

92160

$4.99

$

In Stock, Qty 5

0

92200

$0.99

$

In Stock, Qty 20+

0

92200A

$1.49

$

In Stock, only 4 left!

0

92200B

$2.49

$

In Stock, only 2 left!

0

92210

$0.99

$

In Stock, Qty 9

0

92210A

$0.99

$

In Stock, Qty 20+

0

120

Kawasaki 120S0616

BOLT-SOCKET
(Superseded to 120CB0616)

$2.49

$

In Stock, only 4 left!

0
