KHDS 750 A (KHDS750A-A1) - Kawasaki Hedge Trimmer FUEL-TANK/FUEL-VALVE Parts Diagram

Hedge Trimmer

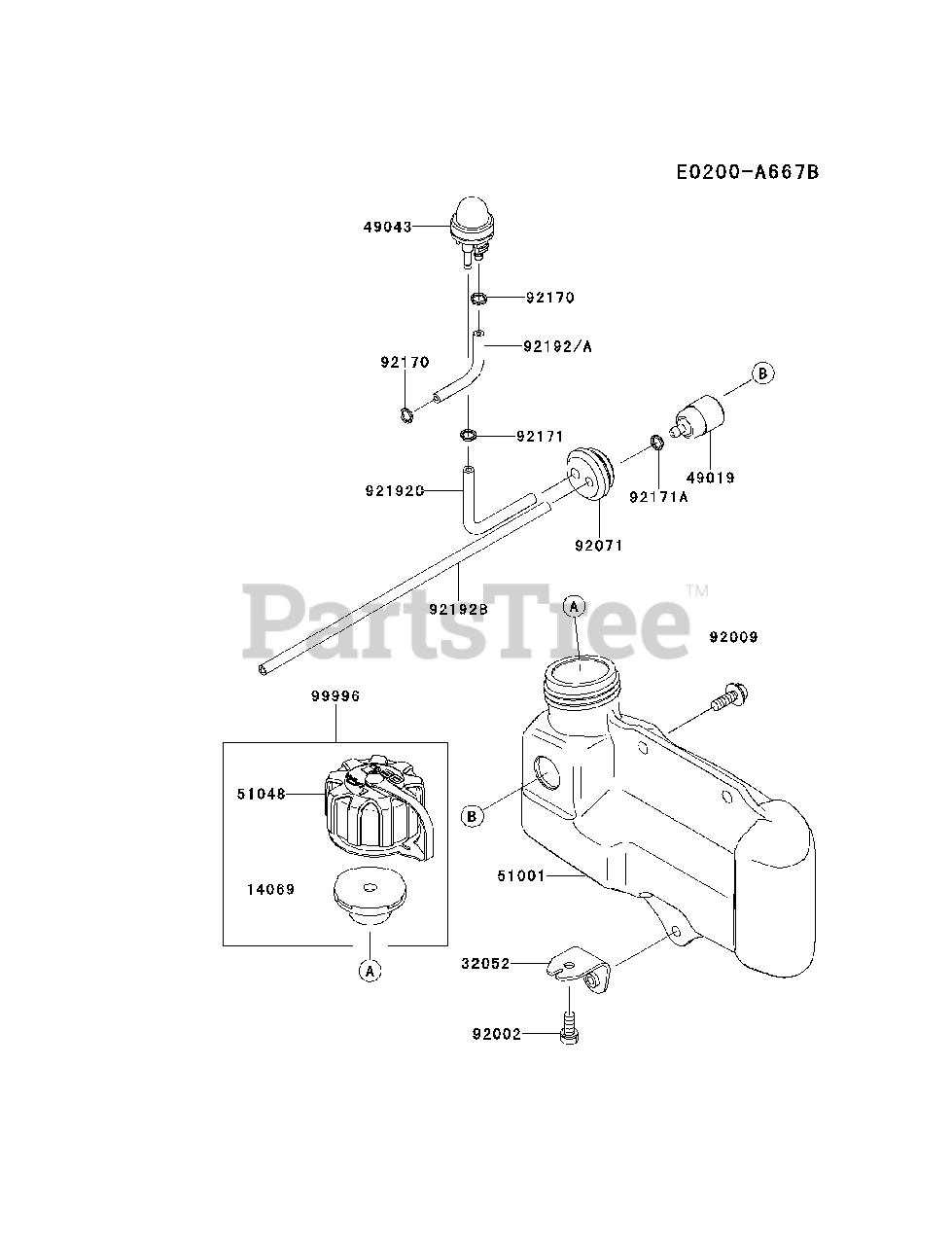

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

14069

Kawasaki 14069-2088

BREATHER
(Superseded to 14069-0013)

$16.99

$

In Stock, Qty 5

0

32052

Kawasaki 32052-2228

BRACKET-TANK
(Superseded to 32052-0715)

$10.99

$

In Stock, only 1 left!

0

49019

Kawasaki 49019-2111

FILTER-FUEL

$10.99

$

In Stock, only 1 left!

0

49043

Kawasaki 49043-2074

PUMP-PRIMING,CARBURETOR
(Superseded to 49043-2073)

$19.99

$

In Stock, Qty 11

0

51001

Kawasaki 51001-2339

TANK-COMP-FUEL

$

$

Not available

51048

Kawasaki 51048-2083

CAP-ASSY-TANK

$12.99

$

In Stock, only 1 left!

0

92002

Kawasaki 92002-2313

BOLT

$0.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2368

SCREW,5X16

$1.49

$

Usually ships in 2-5 days

0

92071

Kawasaki 92071-2169

GROMMET

$3.49

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2110

CLAMP

$0.99

$

In Stock, Qty 10

0

92171

Kawasaki 92171-2058

CLAMP

$8.49

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-2086

CLAMP

$1.49

$

In Stock, Qty 5

0

92192

Kawasaki 92192-1069

TUBE,2.3X5X38
(Superseded to 92192-1319)

$2.99

$

In Stock, only 1 left!

0

92192A

Kawasaki 92192-2171

TUBE,2.3X5X38

$2.99

$

Usually ships in 2-5 days

0

92192B

Kawasaki 92192-2177

TUBE,3X5X200

$

$

Not available

92192C

Kawasaki 92192-2178

TUBE,3X5.5X80

$6.99

$

In Stock, only 1 left!

0

99996

Kawasaki 99996-6089

CAP-TANK & BREATHER,ASSY
(Superseded to 99996-6101)

$19.99

$

In Stock, Qty 11

0
