KHDS 600 A (KHDS600A-B1) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

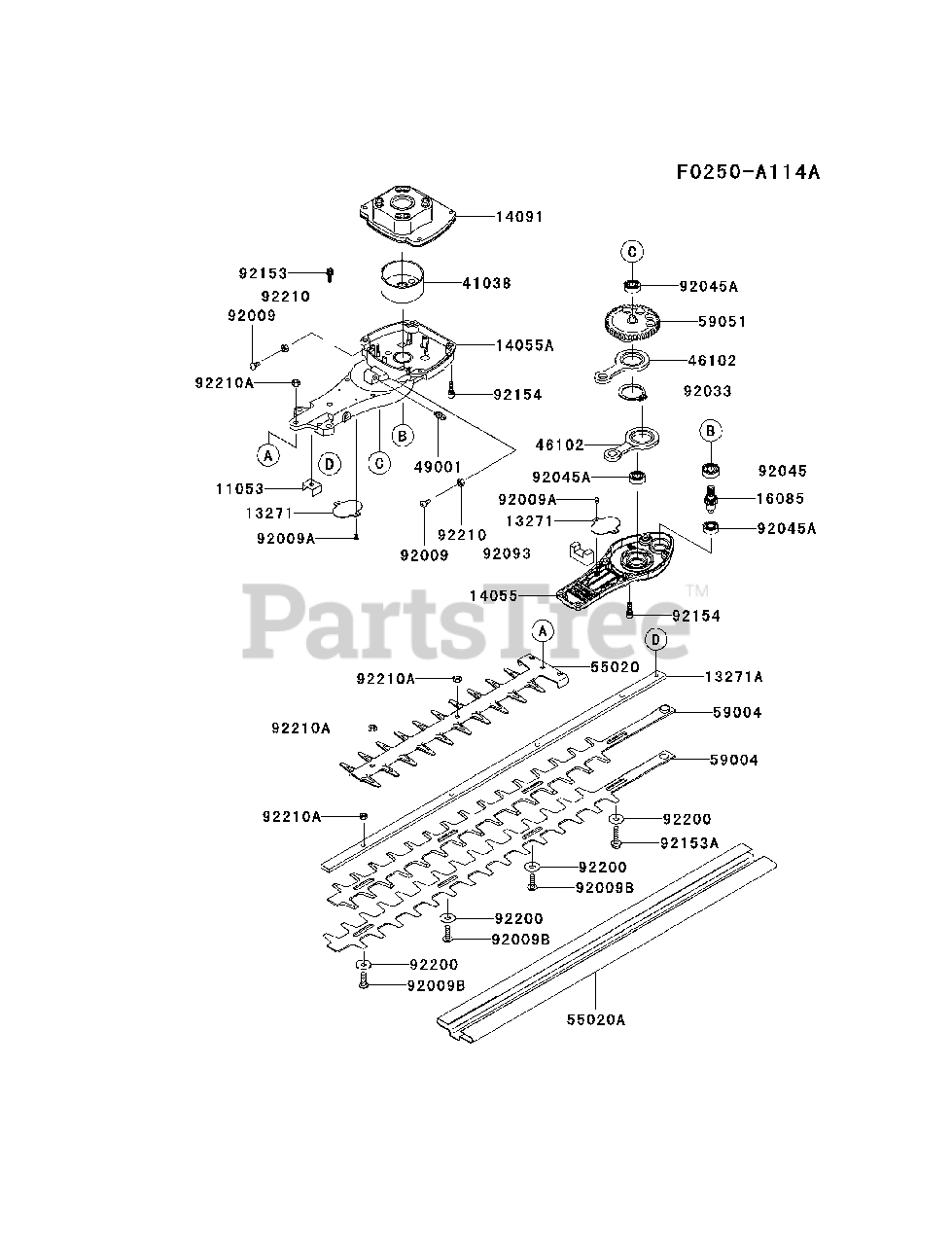

CASE/CUTTER Parts Diagram

  • Title

11053

Kawasaki 11053-2085

BRACKET

$7.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-V005

PLATE

$8.49

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-V006

PLATE

$75.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-V004

CASE-GEAR,LWR

$41.99

$

In Stock, only 1 left!

0

14055A

Kawasaki 14055-V013

CASE-GEAR,UPP

$

$

Not available

14091

Kawasaki 14091-V001

COVER,CLUTCH

$28.99

$

Usually ships in 2-5 days

0

16085

Kawasaki 16085-V005

GEAR,PINION

$27.99

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-V001

DRUM,CLUTCH

$21.99

$

Usually ships in 2-5 days

0

46102

Kawasaki 46102-V003

ROD,CUTTER
(Superseded to 46102-2081)

$49.99

$

Usually ships in 2-5 days

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2135

GUARD,BLAID,D
(Superseded to 55020-V007)

$12.99

$

In Stock, Qty 6

0

55020A

Kawasaki 55020-2136

GUARD,CUTTER,D

$34.99

$

In Stock, only 1 left!

0

59004

Kawasaki 59004-V010

CUTTER,15T

$83.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-V004

GEAR-SPUR

$124.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-V008

SCREW,5X10

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009-2421

SCREW,3X5

$0.99

$

In Stock, Qty 7

0

92009B

Kawasaki 92009-2423

SCREW,L=19

$2.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-2182

RING-SNAP,DIA=26

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$10.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, only 4 left!

0

92093

Kawasaki 92093-V001

SEAL

$6.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-V006

BOLT,5X14
(Superseded to 92153-V009)

$2.49

$

In Stock, only 1 left!

0

92153A

Kawasaki 92153-V007

BOLT,L=28

$3.49

$

In Stock, Qty 9

0

92154

Kawasaki 92154-V012

BOLT,SOCKET,5X16

$3.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 19

0

92210

Kawasaki 92210-V004

NUT,M5

$1.49

$

In Stock, only 1 left!

0

92210A

Kawasaki 92210-2066

NUT,M6

$0.99

$

In Stock, Qty 20+

0
