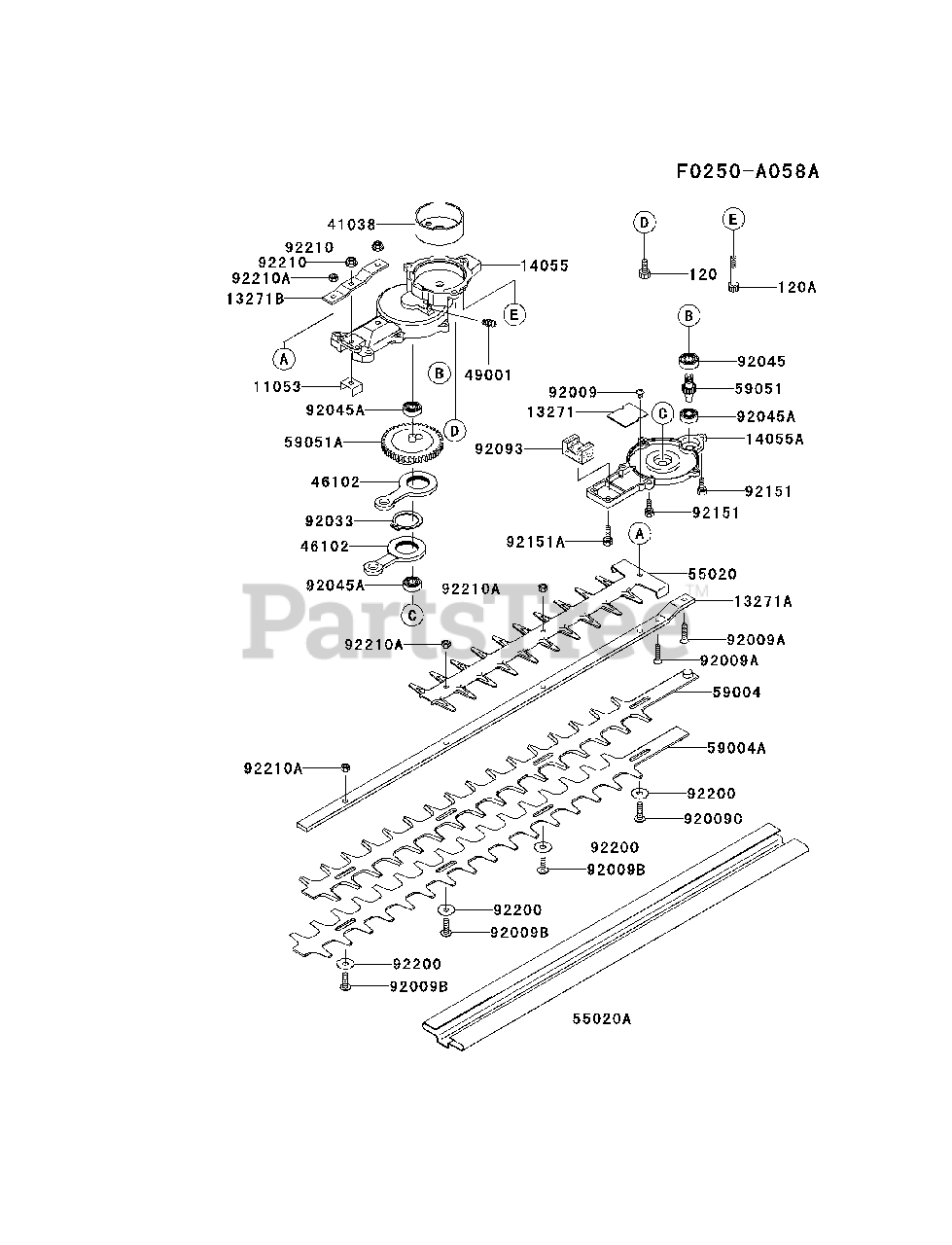

KHD 600 B (HB600B-AS00) - Kawasaki Hedge Trimmer CASE/CUTTER Parts Diagram

Hedge Trimmer

CASE/CUTTER Parts Diagram

  • Title

11053

Kawasaki 11053-2085

BRACKET

$7.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2069

PLATE,ROD

$5.49

$

In Stock, only 1 left!

0

13271A

Kawasaki 13271-2070

PLATE

$39.99

$

Usually ships in 2-5 days

0

13271B

Kawasaki 13271-2233

PLATE

$8.49

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-2254

CASE-GEAR,UPP

$

$

Not available

14055A

Kawasaki 14055-2255

CASE-GEAR,LWR

$41.99

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-2080

DRUM,CLUTCH

$23.99

$

Usually ships in 2-5 days

0

46102

Kawasaki 46102-2081

ROD,CUTTER
(Superseded to 46102-V003)

$49.99

$

Usually ships in 2-5 days

0

49001

Kawasaki 49001-2058

NIPPLE-GREASE
(Superseded to 99971-0209)

$1.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2135

GUARD,BLAID,D
(Superseded to 55020-V007)

$12.99

$

In Stock, Qty 6

0

55020A

Kawasaki 55020-2136

GUARD,CUTTER,D

$34.99

$

In Stock, only 1 left!

0

59004

Kawasaki 59004-2016

CUTTER,UPP,D

$74.99

$

In Stock, only 1 left!

0

59004A

Kawasaki 59004-2017

CUTTER,LWR,D

$72.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-2350

GEAR-SPUR

$50.99

$

Usually ships in 2-5 days

0

59051A

Kawasaki 59051-2351

GEAR-SPUR

$103.99

$

In Stock, only 1 left!

0

92009

Kawasaki 92009-2421

SCREW,3X5

$0.99

$

In Stock, Qty 7

0

92009A

Kawasaki 92009-2422

SCREW,5X20

$0.99

$

In Stock, Qty 12

0

92009B

Kawasaki 92009-2423

SCREW,L=19

$2.49

$

In Stock, Qty 20+

0

92009C

Kawasaki 92009-2424

SCREW,L=22

$2.49

$

In Stock, only 2 left!

0

92033

Kawasaki 92033-2182

RING-SNAP

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2246

BEARING-BALL,6001RS

$10.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2247

BEARING-BALL,608ZL

$10.99

$

In Stock, only 4 left!

0

92093

Kawasaki 92093-2125

SEAL

$11.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2109

BOLT,5X16

$1.49

$

In Stock, Qty 5

0

92151A

Kawasaki 92151-2110

BOLT,5X20

$0.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2103

WASHER

$0.99

$

In Stock, Qty 20+

0

92210

Kawasaki 92210-2065

NUT,M5

$0.99

$

In Stock, Qty 9

0

92210A

Kawasaki 92210-2066

NUT,M6

$0.99

$

In Stock, Qty 20+

0

120

Kawasaki 120W0616

BOLT-SOCKET
(Superseded to 120CB0616)

$2.49

$

In Stock, only 4 left!

0

120A

Kawasaki 120W0640

BOLT-SOCKET
(Superseded to 120CB0640)

$3.99

$

Usually ships in 2-5 days

0
