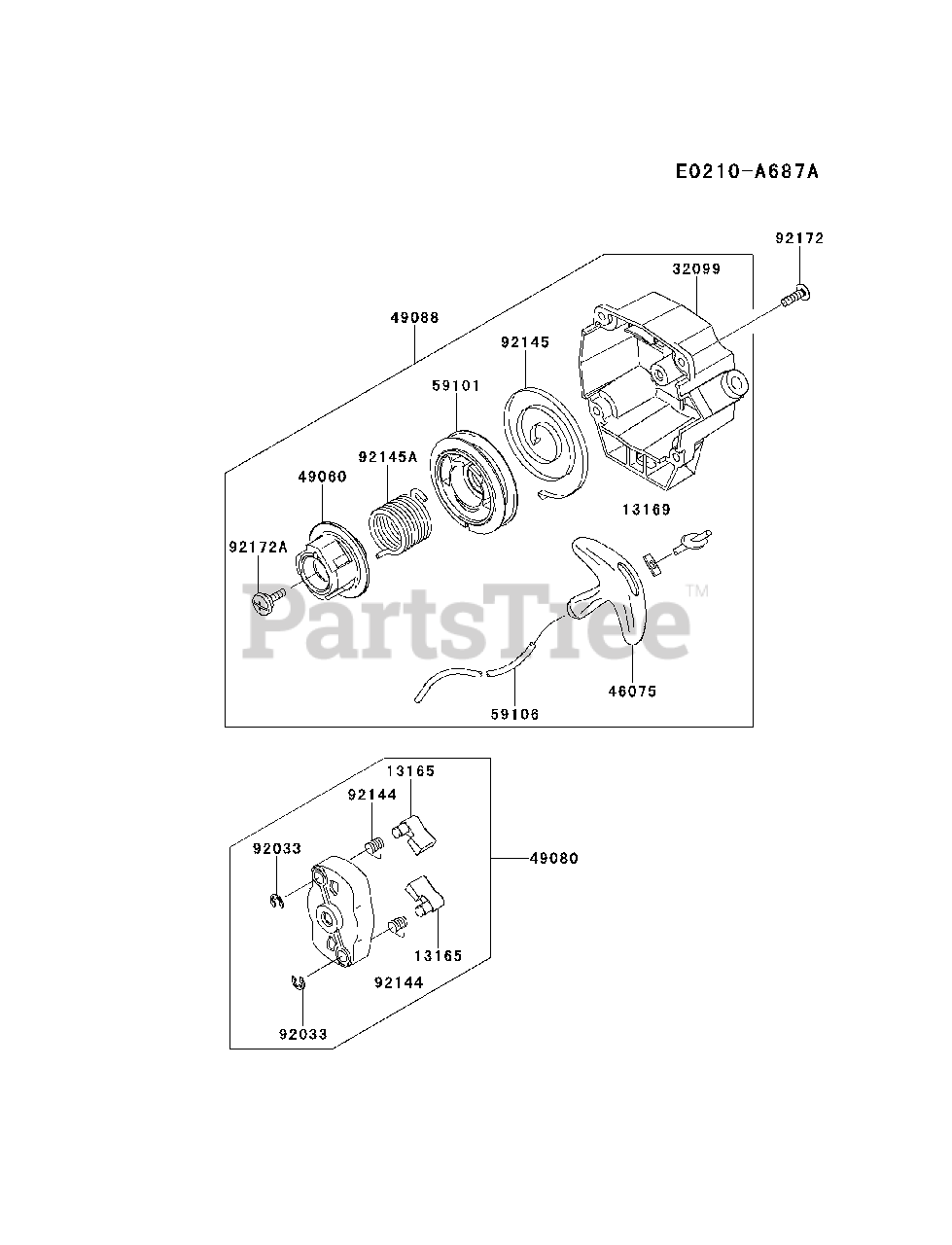

KGT 35 B (KGT35B-A3) - Kawasaki String Trimmer STARTER Parts Diagram

String Trimmer

STARTER Parts Diagram

  • Title

13165

Kawasaki 13165-0564

PAWL

$4.49

$

Usually ships in 2-5 days

0

13169

Kawasaki 13169-2386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2433

CASE,STARTER-RECOIL
(Superseded to 32099-0715)

$32.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2161

GRIP,STARTER-RECOIL
(Superseded to 46075-2159)

$8.49

$

Usually ships in 2-5 days

0

49060

Kawasaki 49060-2062

CAM,STARTER-RECOIL
(Superseded to 49060-0559)

$7.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-0710

PULLEY-STARTING

$22.99

$

Usually ships in 2-5 days

0

49088

Kawasaki 49088-0720

STARTER-RECOIL
(Superseded to 49088-2588)

$

$

Not available

59101

Kawasaki 59101-0563

REEL

$20.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-0562

ROPE

$10.99

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-2010

RING-SNAP

$0.99

$

In Stock, Qty 8

0

92144

Kawasaki 92144-2157

SPRING

$8.49

$

In Stock, only 4 left!

0

92145

Kawasaki 92145-0872

SPRING

$20.99

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-2149

SPRING

$2.49

$

In Stock, only 2 left!

0

92172

Kawasaki 92172-2061

SCREW,4X14

$0.99

$

In Stock, only 4 left!

0

92172A

Kawasaki 92172-2065

SCREW

$2.99

$

In Stock, Qty 6

0
