KGT 35 B (KGT35B-A3) - Kawasaki String Trimmer PIPE/HANDLE/GUARD Parts Diagram

String Trimmer

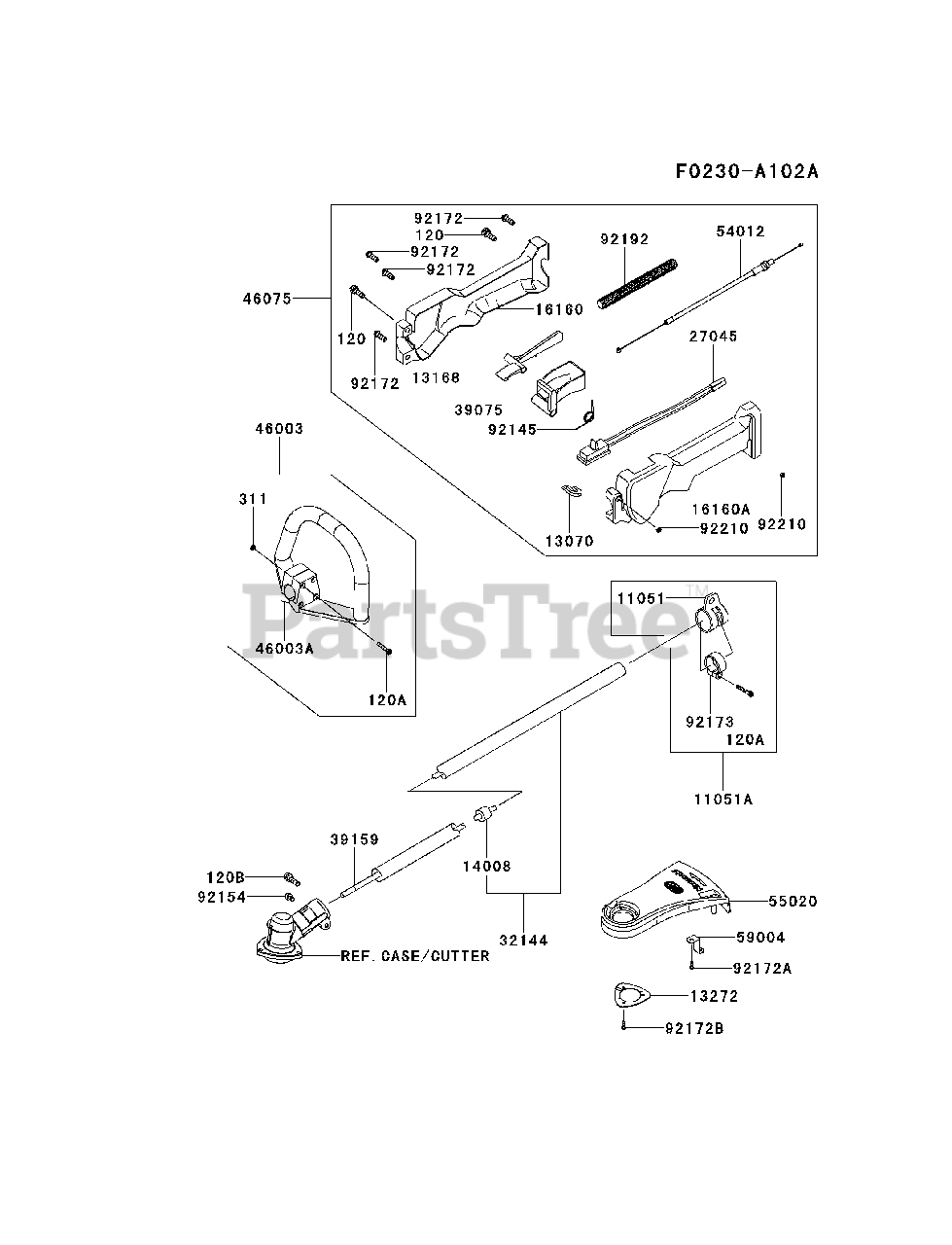

PIPE/HANDLE/GUARD Parts Diagram

  • Title
11051

$12.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-R007

BRACKET,SET

$36.99

$

Usually ships in 2-5 days

0

13070

$2.49

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-X001

LEVER,STOP
(Superseded to 13168-R001)

$10.99

$

In Stock, only 1 left!

0

13272

$10.99

$

Usually ships in 2-5 days

0

14008

$24.99

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-R012

BODY,GRIP,RH

$21.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-R013

BODY,GRIP,LH

$15.99

$

Usually ships in 2-5 days

0

27045

Kawasaki 27045-R008

SWITCH-ASSY

$19.99

$

Usually ships in 2-5 days

0

32144

$203.99

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075-R001

LEVER-THROTTLE

$9.99

$

In Stock, Qty 5

0

39159

Kawasaki 39159-R005

SHAFT-DRIVE

$90.99

$

Usually ships in 2-5 days

0

46003

Kawasaki 46003-R006

HANDLE,SET

$74.99

$

Usually ships in 2-5 days

0

46003A

$71.99

$

Usually ships in 2-5 days

0

46075

$104.99

$

Usually ships in 2-5 days

0

54012

Kawasaki 54012-R008

CABLE-THROTTLE

$19.99

$

Usually ships in 2-5 days

0

55020

$75.99

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004-R002

CUTTER,STRING

$10.99

$

In Stock, only 3 left!

0

92145

Kawasaki 92145-R001

SPRING,RETURN

$2.49

$

In Stock, only 3 left!

0

92154

Kawasaki 92154-R021

BOLT,SOCKET,5X12

$1.99

$

In Stock, only 2 left!

0

92172

Kawasaki 92172-R001

SCREW,4X20

$1.49

$

In Stock, only 1 left!

0

92172A

Kawasaki 92172-R012

SCREW,5X14

$1.49

$

In Stock, only 1 left!

0

92172B

Kawasaki 92172-R013

SCREW,5X15

$1.99

$

In Stock, Qty 5

0

92173

$11.99

$

Usually ships in 2-5 days

0

92192

$1.99

$

Usually ships in 2-5 days

0

$0.99

$

In Stock, only 2 left!

0

120

Kawasaki 120CB0520

BOLT-SOCKET,5X20
(Superseded to 120S0520)

$2.49

$

In Stock, Qty 5

0

120A

Kawasaki 120CB0530

BOLT-SOCKET,5X30
(Superseded to 120W0530)

$0.99

$

Usually ships in 2-5 days

0

120B

Kawasaki 120CB0630

BOLT-SOCKET,6X30
(Superseded to 120Q0630)

$

$

Not available

311

Kawasaki 311R0500

NUT-HEX,5MM
(Superseded to 310R0500A)

$

$

Not available
