KGT 35 B (KGT35B-A3) - Kawasaki String Trimmer CASE/CUTTER Parts Diagram

String Trimmer

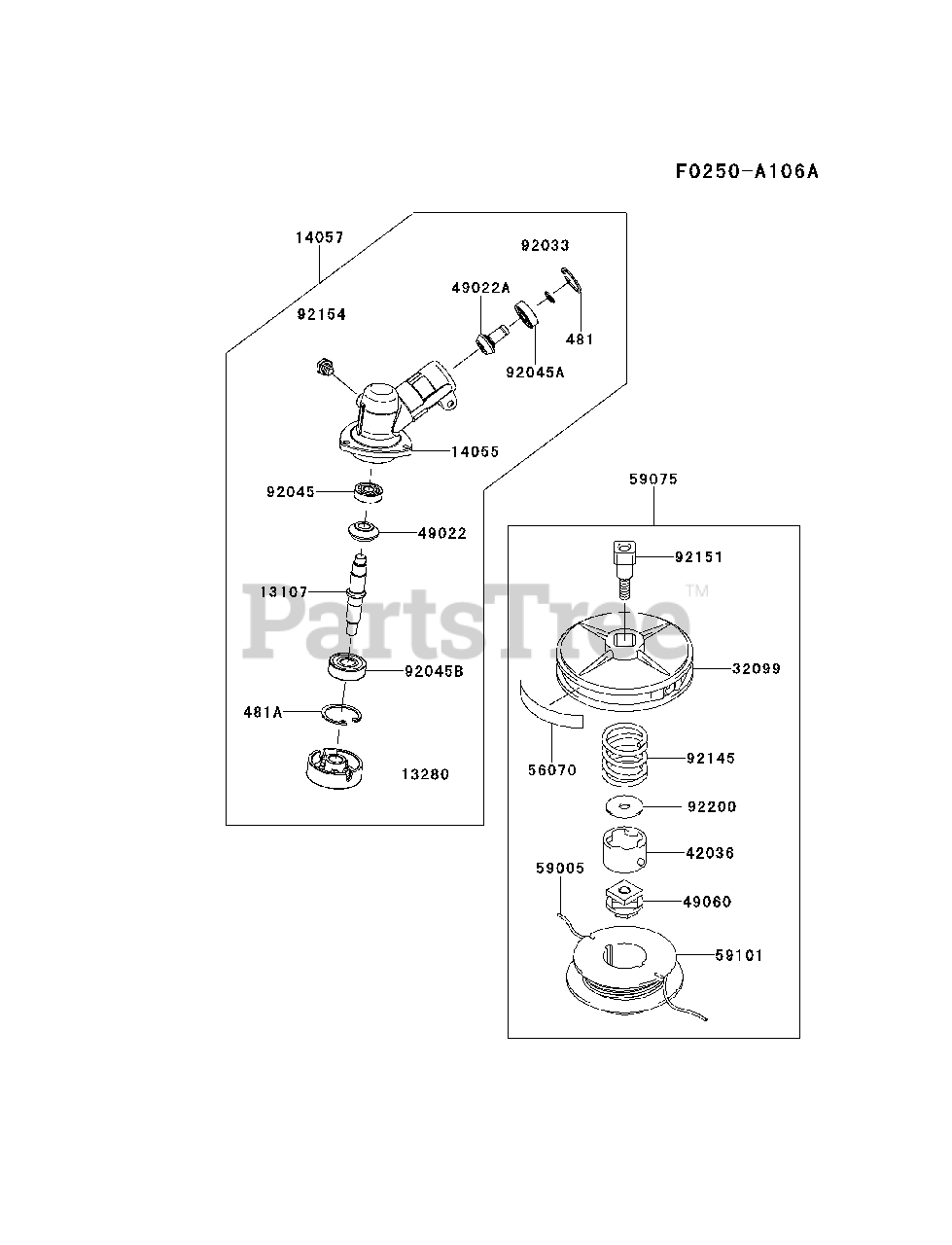

CASE/CUTTER Parts Diagram

  • Title

13107

Kawasaki 13107-R005

SHAFT,GEAR

$58.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-R003

HOLDER,UPP

$22.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-R005

CASE-GEAR

$55.99

$

In Stock, only 2 left!

0

14057

Kawasaki 14057-R007

CASE-COMP-GEAR

$307.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2340

CASE,CUTTER

$39.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2101

SLEEVE,CUTTER

$14.99

$

In Stock, only 1 left!

0

49022

Kawasaki 49022-R004

GEAR-BEVEL

$46.99

$

In Stock, only 1 left!

0

49022A

Kawasaki 49022-R010

GEAR-BEVEL

$51.99

$

Usually ships in 2-5 days

0

49060

Kawasaki 49060-2058

CAM,CUTTER

$14.99

$

In Stock, only 1 left!

0

56070

Kawasaki 56070-2035

LABEL-WARNING

$4.49

$

In Stock, only 1 left!

0

59005

Kawasaki 59005-2008

STRING,2.4X6900

$

$

Not available

59075

Kawasaki 59075-2018

CUTTER-CORD,M10,L

$36.99

$

In Stock, only 1 left!

0

59101

Kawasaki 59101-2108

REEL,CUTTER

$13.99

$

In Stock, only 3 left!

0

92033

Kawasaki 92033-R016

RING-SNAP

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-T004

BEARING-BALL,609OP C3

$12.99

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2242

BEARING-BALL,6000ZZ

$15.99

$

In Stock, only 2 left!

0

92045B

Kawasaki 92045-2250

BEARING-BALL,6201DDU

$8.49

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2064

SPRING

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2099

BOLT,CUTTER,M10,L

$11.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-R008

BOLT,8X8

$1.99

$

In Stock, Qty 5

0

92200

Kawasaki 92200-2095

WASHER

$0.99

$

In Stock, Qty 7

0

481

Kawasaki 481J2600

CIRCLIP,26MM
(Superseded to 92033-R007)

$0.99

$

Usually ships in 2-5 days

0

481A

Kawasaki 481J3200

CIRCLIP,32MM
(Superseded to 92033-R004)

$2.99

$

In Stock, only 1 left!

0
