KGT 27 C (KGT27C-A1) - Kawasaki String Trimmer CYLINDER/CRANKCASE Parts Diagram

String Trimmer

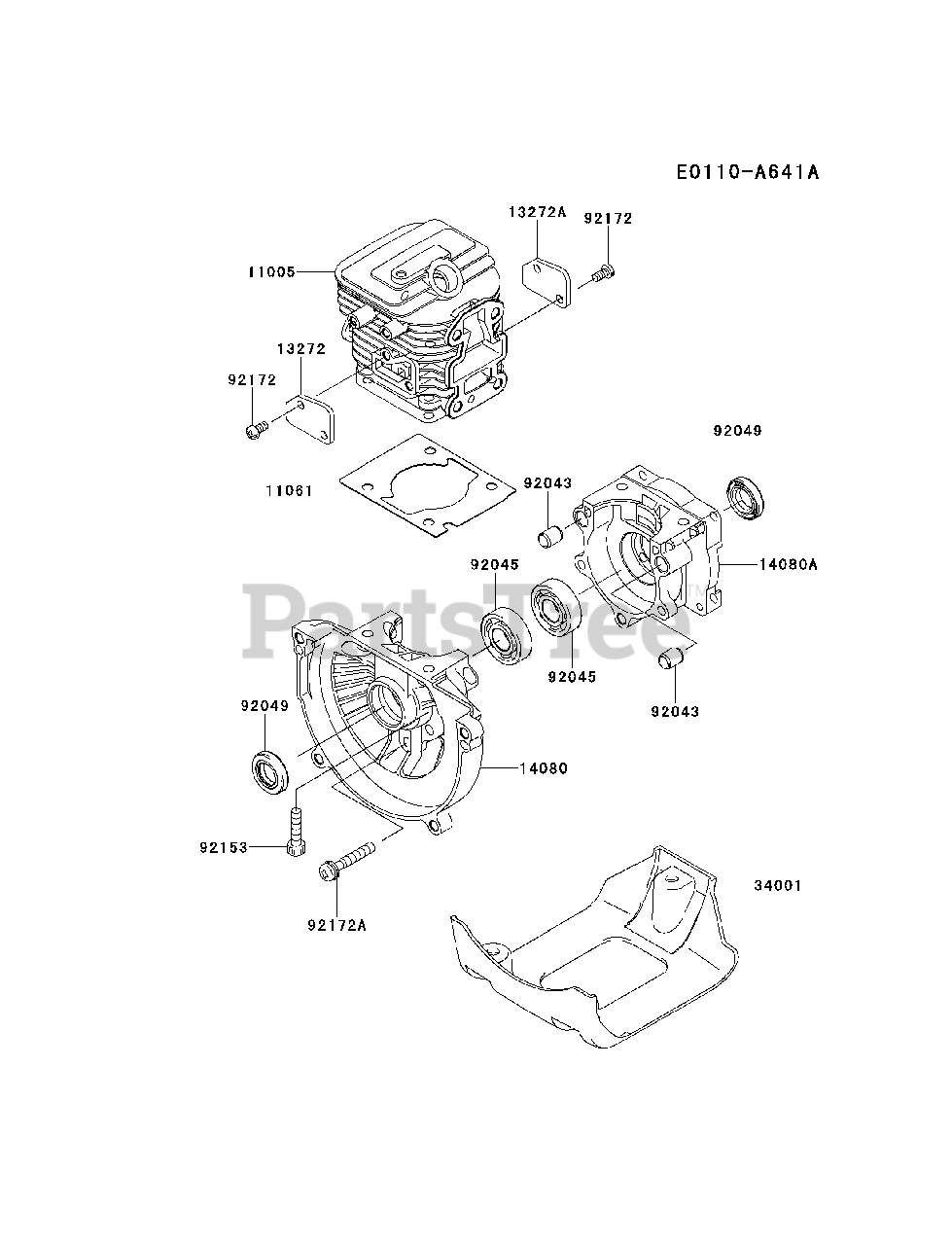

CYLINDER/CRANKCASE Parts Diagram

  • Title
11005

Kawasaki 11005-2163

CYLINDER-ENGINE
(Superseded to 11005-0615)

$268.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2203

GASKET,CYLINDER
(Superseded to 11061-2169)

$4.99

$

In Stock, only 1 left!

0

13272

$2.49

$

Usually ships in 2-5 days

0

13272A

$2.49

$

Usually ships in 2-5 days

0

14080

Kawasaki 14080-2068

CRANKCASE
(Superseded to 14080-0663)

$114.99

$

Usually ships in 2-5 days

0

14080A

Kawasaki 14080-2069

CRANKCASE
(Superseded to 14080-0664)

$

$

Not available

34001

Kawasaki 34001-2091

STAND
(Superseded to 34001-2088)

$9.49

$

In Stock, only 1 left!

0

92043

Kawasaki 92043-2257

PIN
(Superseded to 92043-0755)

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2278

BEARING-BALL,6001C3

$19.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-2269

SEAL-OIL,12X22X4.5

$4.99

$

In Stock, Qty 8

0

92153

Kawasaki 92153-2136

BOLT,SOCKET,5X20

$2.99

$

Usually ships in 2-5 days

0

92172

$0.99

$

Usually ships in 2-5 days

0

92172A

Kawasaki 92172-2104

SCREW,5X30

$1.49

$

Usually ships in 2-5 days

0
