KGT 27 B (KGT27B-A1) - Kawasaki String Trimmer STARTER Parts Diagram

String Trimmer

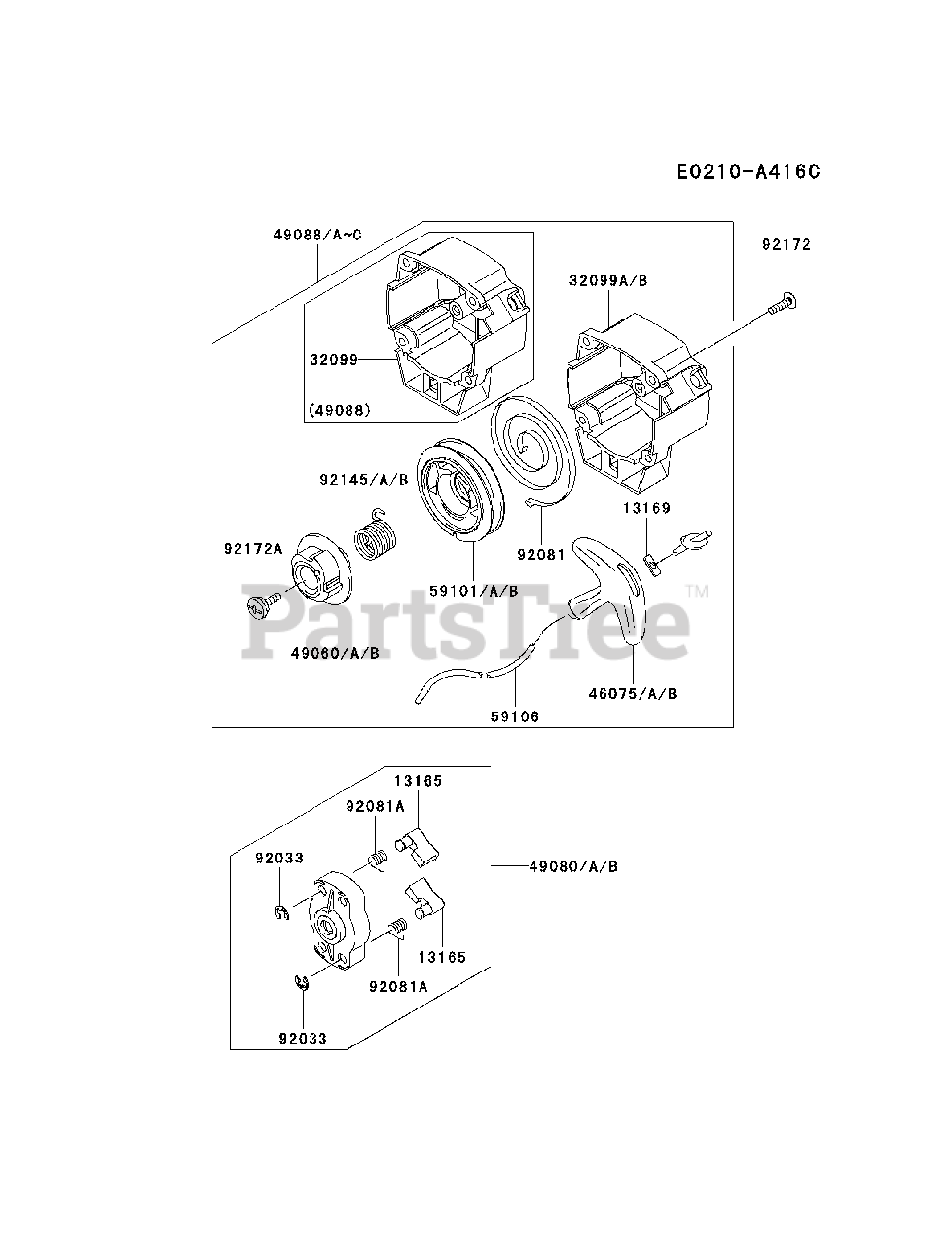

STARTER Parts Diagram

  • Title
13165

$3.49

$

Usually ships in 2-5 days

0

13169

Kawasaki 13169-2386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2410

CASE,STARTER-RECOIL
(Superseded to 32099-2417)

$39.99

$

Usually ships in 2-5 days

0

32099B

Kawasaki 32099-2417

CASE,STARTER-RECOIL
(Superseded to 32099-2432)

$39.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2159

GRIP,STARTER-RECOIL
(Superseded to 46075-2161)

$8.49

$

Usually ships in 2-5 days

0

46075B

Kawasaki 46075-2161

GRIP,STARTER-RECOIL
(Superseded to 46075-2159)

$8.49

$

Usually ships in 2-5 days

0

49060

Kawasaki 49060-2064

CAM
(Superseded to 49060-2066)

$12.99

$

In Stock, Qty 6

0

49060B

Kawasaki 49060-2066

CAM,STARTER-RECOIL
(Superseded to 49060-2064)

$12.99

$

In Stock, Qty 6

0

49080A

Kawasaki 49080-2195

PULLEY-STARTING
(Superseded to 49080-2215)

$14.99

$

In Stock, Qty 5

0

49080B

Kawasaki 49080-2208

PULLEY-STARTING
(Superseded to 49080-2195)

$14.99

$

In Stock, Qty 5

0

49088

Kawasaki 49088-2563

STARTER-RECOIL
(Superseded to 49088-2570)

$

$

Not available

49088A

Kawasaki 49088-2570

STARTER-RECOIL
(Superseded to 49088-2594)

$

$

Not available

49088C

Kawasaki 49088-2586

STARTER-RECOIL
(Superseded to 49088-2587)

$

$

Not available

59101

Kawasaki 59101-2125

REEL,STARTER-RECOIL
(Superseded to 59101-2126)

$11.99

$

In Stock, only 1 left!

0

59101B

Kawasaki 59101-2126

REEL,STARTER-RECOIL
(Superseded to 59101-2125)

$11.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-2168

ROPE,3X700

$10.99

$

In Stock, only 1 left!

0

92033

$0.99

$

In Stock, Qty 8

0

92081

Kawasaki 92081-2238

SPRING,RECOIL

$20.99

$

In Stock, only 1 left!

0

92081A

$10.99

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-2128

SPRING,RECOIL

$6.99

$

In Stock, Qty 17

0

92145B

Kawasaki 92145-2172

SPRING,RECOIL
(Superseded to 92145-2128)

$6.99

$

In Stock, Qty 17

0

92172

Kawasaki 92172-2061

SCREW,4X14

$0.99

$

In Stock, Qty 20+

0

92172A

$2.99

$

In Stock, Qty 6

0
