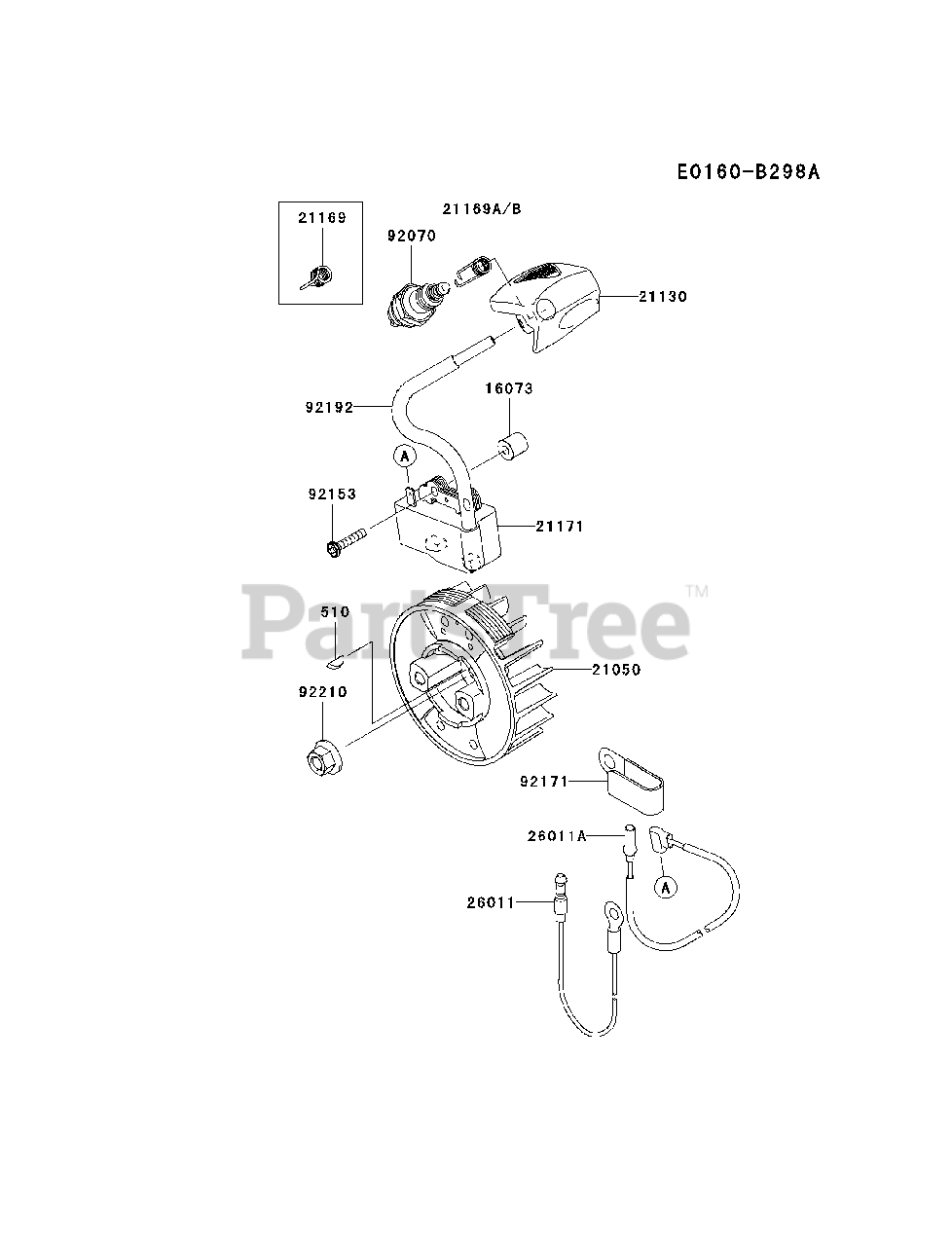

KGT 27 B (KGT27B-A1) - Kawasaki String Trimmer ELECTRIC-EQUIPMENT Parts Diagram

String Trimmer

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

16073

Kawasaki 16073-2220

INSULATOR

$1.49

$

In Stock, Qty 7

0

21050

Kawasaki 21050-2316

FLYWHEEL

$133.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2071

CAP-SPARK PLUG
(Superseded to 21130-2076)

$5.99

$

In Stock, only 1 left!

0

21169

Kawasaki 21169-2075

TERMINAL
(Superseded to 21169-2078)

$1.49

$

In Stock, Qty 11

0

21169B

Kawasaki 21169-2078

TERMINAL
(Superseded to 21169-2075)

$1.49

$

In Stock, Qty 11

0

21171

Kawasaki 21171-2256

COIL-ASSY-IGNITION
(Superseded to 211712-259)

$

$

Not available

26011

Kawasaki 26011-2113

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-2361

WIRE-LEAD,L=230
(Superseded to 26011-2376)

$6.49

$

In Stock, only 1 left!

0

92070

Kawasaki 92070-2107

PLUG-SPARK,BPMR7A,SOLID
(Superseded to BPMR7A)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-2134

BOLT,4X20

$

$

Not available

92171

Kawasaki 92171-2067

CLAMP

$6.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2135

TUBE

$15.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-2101

NUT,M8

$1.99

$

In Stock, Qty 8

0

510

Kawasaki 510A3100

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0
