KEL 27 B (KEL27B-A5) - Kawasaki Edger CASE/CUTTER Parts Diagram

Edger

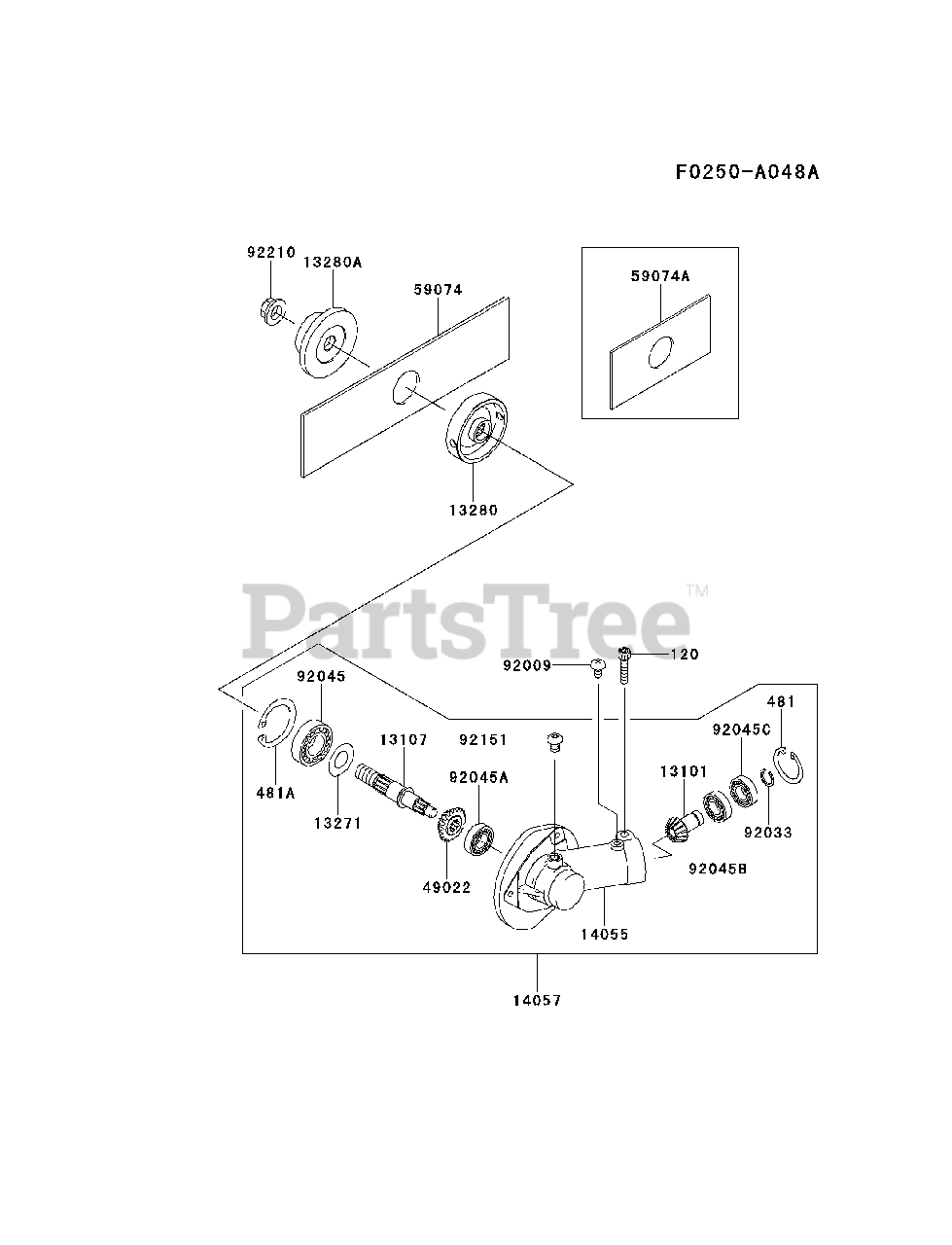

CASE/CUTTER Parts Diagram

  • Title

13101

Kawasaki 13101-2174

GEAR-ASSY,13T

$40.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 13107-2288

SHAFT,GEAR

$41.99

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-2136

PLATE,12.5X24X0.2

$1.49

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-2064

HOLDER,CUTTER,INNER

$28.99

$

Usually ships in 2-5 days

0

13280A

Kawasaki 13280-2065

HOLDER,CUTTER,OUTER

$13.99

$

Usually ships in 2-5 days

0

14055

Kawasaki 14055-2242

CASE-GEAR

$53.99

$

Usually ships in 2-5 days

0

14057

Kawasaki 14057-2036

CASE-COMP-GEAR

$164.99

$

Usually ships in 2-5 days

0

49022

Kawasaki 49022-2133

GEAR-BEVEL,20T

$40.99

$

Usually ships in 2-5 days

0

59074

Kawasaki 59074-2052

CUTTER-BLADE
(Superseded to 59074-2053A)

$

$

Not available

59074A

Kawasaki 59074-2053

CUTTER-BLADE
(Superseded to 59074-2053A)

$

$

Not available

92009

Kawasaki 92009-2403

SCREW

$0.99

$

In Stock, Qty 6

0

92033

Kawasaki 92033-2188

RING-SNAP

$0.99

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2250

BEARING-BALL,6201DDU

$8.49

$

Usually ships in 2-5 days

0

92045A

Kawasaki 92045-2251

BEARING-BALL,627ZZ

$9.99

$

Usually ships in 2-5 days

0

92045B

Kawasaki 92045-2252

BEARING-BALL,6900

$14.99

$

Usually ships in 2-5 days

0

92045C

Kawasaki 92045-2253

BEARING-BALL,6900Z

$17.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2144

BOLT,SOCKET,6X8

$1.49

$

In Stock, Qty 8

0

92210

Kawasaki 92210-2054

NUT,M10

$7.49

$

In Stock, only 2 left!

0

120

Kawasaki 120CB0522

BOLT-SOCKET,5X22
(Superseded to 120S0522)

$1.99

$

In Stock, only 4 left!

0

481

Kawasaki 481J2200

CIRCLIP,22MM

$1.49

$

In Stock, Qty 6

0

481A

Kawasaki 481J3200

CIRCLIP,32MM
(Superseded to 92033-R004)

$2.99

$

In Stock, only 1 left!

0
