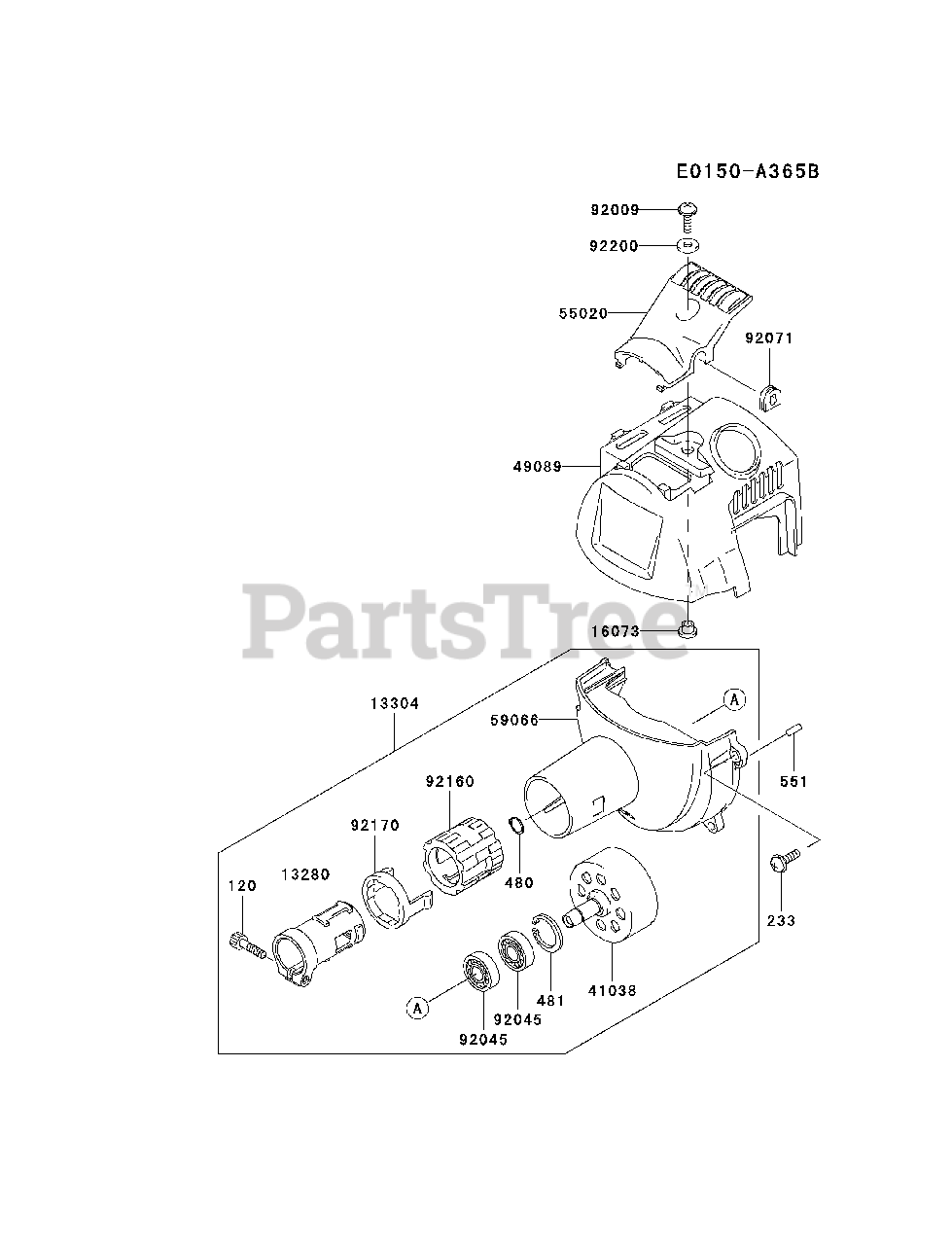

KEL 26 A (HE026A-AS00) - Kawasaki Edger COOLING-EQUIPMENT Parts Diagram

Edger

COOLING-EQUIPMENT Parts Diagram

  • Title

13280

Kawasaki 13280-2051

HOLDER
(Superseded to 13280-2066)

$25.99

$

Usually ships in 2-5 days

0

13304

Kawasaki 13304-2190-XT

HOUSING-ASSY

$

$

Not available

16073

Kawasaki 16073-2197

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

41038

Kawasaki 41038-2084

DRUM,CLUTCH

$24.99

$

Usually ships in 2-5 days

0

49089

Kawasaki 49089-2460

SHROUD-ENGINE
(Superseded to 49089-2548)

$18.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-2123

GUARD

$10.99

$

In Stock, only 1 left!

0

59066

Kawasaki 59066-2707-XT

HOUSING-FAN

$

$

Not available

92009

Kawasaki 92009-2394

SCREW,5X16

$1.49

$

In Stock, only 4 left!

0

92045

Kawasaki 92045-2242

BEARING-BALL,6000ZZ

$15.99

$

In Stock, only 2 left!

0

92071

Kawasaki 92071-2155

GROMMET

$1.49

$

In Stock, only 3 left!

0

92160

Kawasaki 92160-2042

DAMPER
(Superseded to 92161-2065)

$5.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2100

CLAMP

$

$

Not available

92200

Kawasaki 92200-2063

WASHER,5.5X13.8X2.0

$1.99

$

In Stock, Qty 8

0

120

Kawasaki 120S0522

BOLT-SOCKET
(Superseded to 120CB0522)

$1.99

$

In Stock, only 4 left!

0

233

Kawasaki 233B0516

SCREW-PAN-WP+-
(Superseded to 233AA0516)

$0.99

$

In Stock, Qty 7

0

480

Kawasaki 480J1000

RING,SNAP

$0.99

$

In Stock, Qty 5

0

481

Kawasaki 481J2600

RING,SNAP
(Superseded to 92033-R007)

$0.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0410

PIN-DOWEL

$0.99

$

In Stock, Qty 10

0
