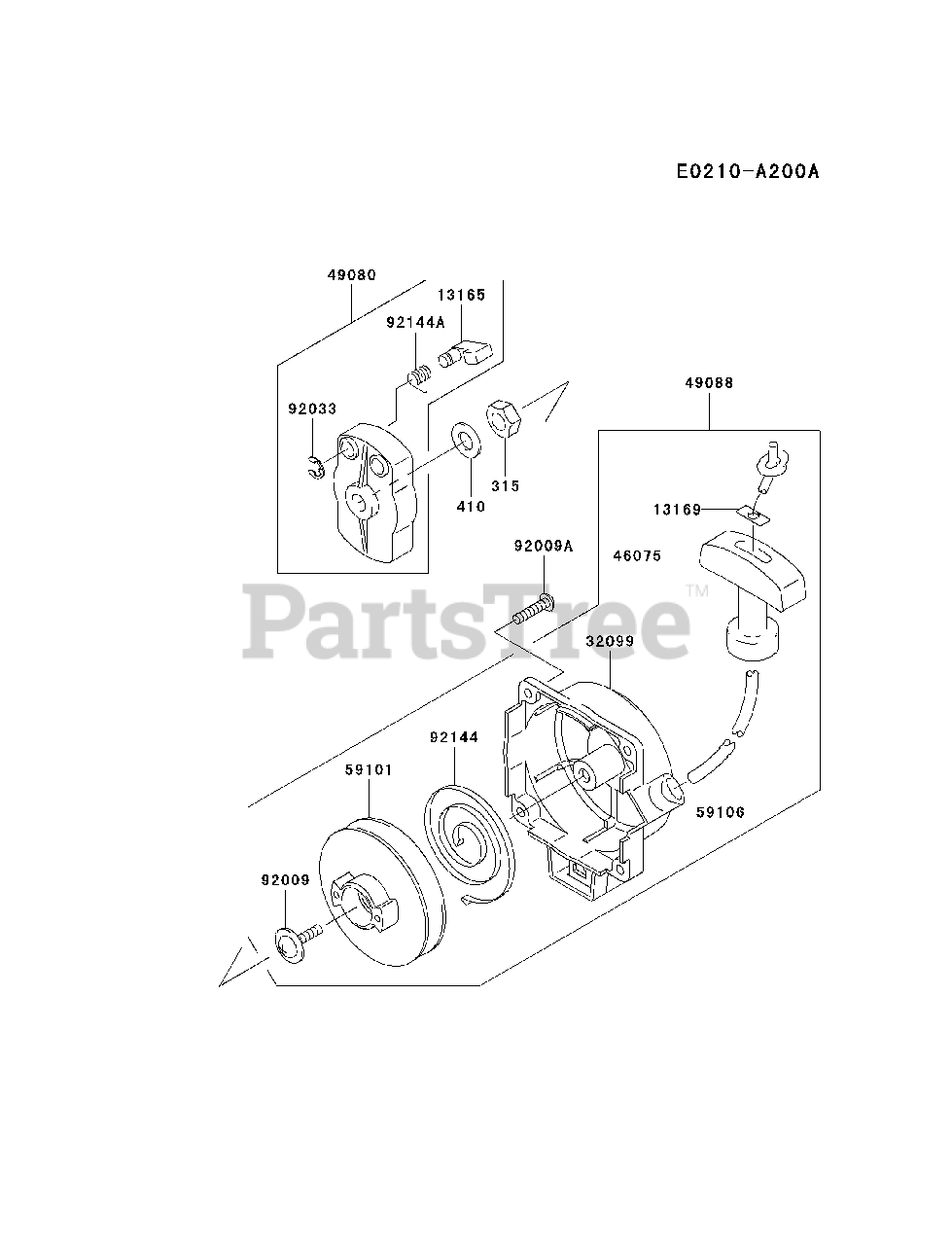

KBL 34 A (HA034F-AS01) - Kawasaki Brush Cutter STARTER Parts Diagram

Brush Cutter

STARTER Parts Diagram

  • Title

13165

Kawasaki 13165-2084

PAWL,RECOIL STARTER

$4.49

$

In Stock, only 1 left!

0

13169

Kawasaki 13169-2386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2358

CASE,RECOIL STARTER

$23.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2128

GRIP,RECOIL STARTER

$

$

Not available

49080

Kawasaki 49080-2134

PULLEY-STARTING

$16.99

$

Usually ships in 2-5 days

0

49088

Kawasaki 49088-2500

STARTER-RECOIL

$

$

Not available

59101

Kawasaki 59101-2085

REEL,RECOIL STARTER

$13.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-2151

ROPE

$5.49

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2358

SCREW

$0.99

$

In Stock, only 4 left!

0

92009A

Kawasaki 92009-2412

SCREW
(Superseded to 92172-2063)

$2.99

$

In Stock, only 3 left!

0

92033

Kawasaki 92033-2010

RING-SNAP

$0.99

$

In Stock, Qty 8

0

92144

Kawasaki 92144-2054

SPRING

$17.99

$

Usually ships in 2-5 days

0

92144A

Kawasaki 92144-2157

SPRING

$8.49

$

In Stock, only 4 left!

0

315

Kawasaki 315B0800

NUT-HEX-FINE

$

$

Not available

410

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0
