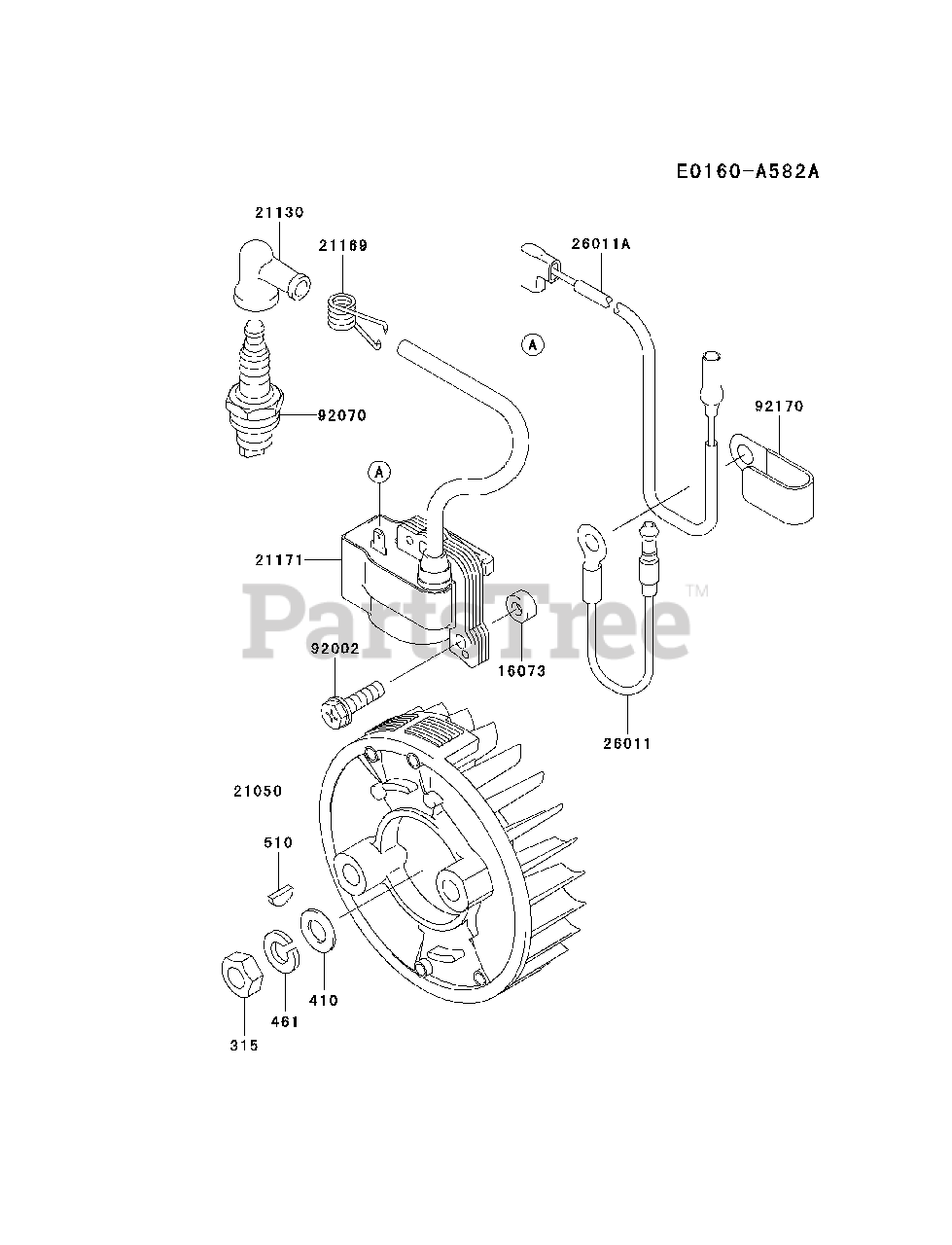

KBL 34 A (HA034F-AS01) - Kawasaki Brush Cutter ELECTRIC-EQUIPMENT Parts Diagram

Brush Cutter

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

16073

Kawasaki 16073-2198

INSULATOR

$2.49

$

Usually ships in 2-5 days

0

21050

Kawasaki 21050-2282

FLYWHEEL
(Superseded to 21050-2301)

$152.99

$

Usually ships in 2-5 days

0

21130

Kawasaki 21130-2056

CAP-SPARK PLUG
(Superseded to 3119AA-8418D)

$5.49

$

In Stock, Qty 18

0

21169

Kawasaki 21169-2051

TERMINAL
(Superseded to 311509-8419B)

$

$

Not available

21171

Kawasaki 21171-2234

COIL-ASSY-IGNITION

$90.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2113

WIRE-LEAD

$2.99

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-2361

WIRE-LEAD,L=230
(Superseded to 26011-2376)

$6.49

$

In Stock, only 1 left!

0

92002

Kawasaki 92002-2197

BOLT,4X20
(Superseded to 311510-8127A)

$0.99

$

Usually ships in 2-5 days

0

92070

Kawasaki 92070-2108

PLUG-SPARK,BPMR6A,SOLID
(Superseded to BPMR6A)

Note: NGK

$3.99

$

In Stock, Qty 11

0

92170

Kawasaki 92170-2041

CLAMP

$

$

Not available

315

Kawasaki 315B0800

NUT-HEX-FINE

$

$

Not available

410

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A3100

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0
