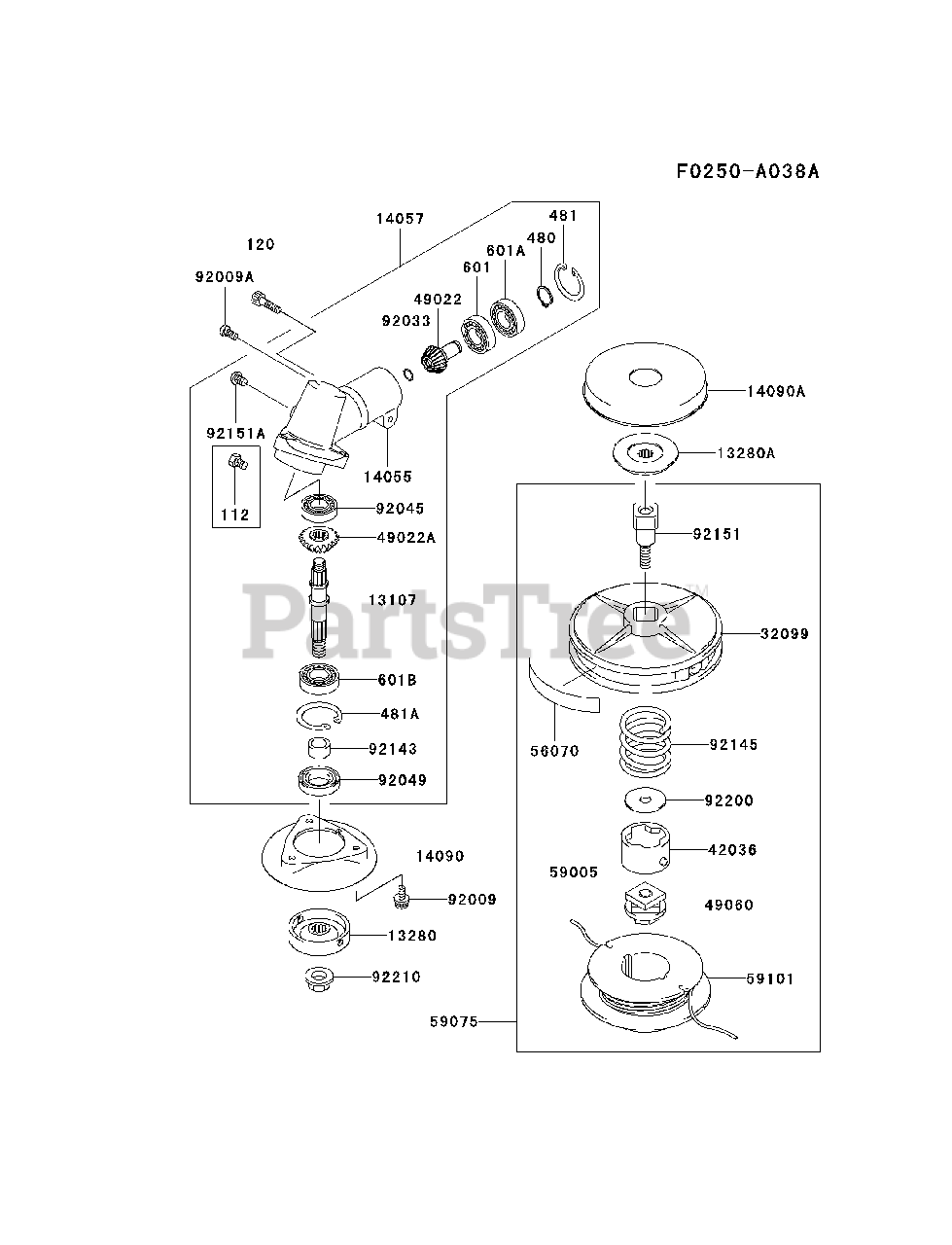

KBL 34 A (HA034F-AS01) - Kawasaki Brush Cutter CASE/CUTTER Parts Diagram

Brush Cutter

CASE/CUTTER Parts Diagram

  • Title
13107

Kawasaki 13107-2275

SHAFT,GEAR

$

$

Not available

13280

Kawasaki 13280-2055

HOLDER,UPP

$20.99

$

Usually ships in 2-5 days

0

13280A

Kawasaki 13280-2056

HOLDER,LWR

$

$

Not available

14055

$

$

Not available

14057

Kawasaki 14057-2031

CASE-COMP-GEAR

$

$

Not available

14090

Kawasaki 14090-2110

COVER,GEAR CASE

$

$

Not available

14090A

Kawasaki 14090-2117

COVER,CUTTER

$

$

Not available

32099

Kawasaki 32099-2340

CASE,CUTTER

$39.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2101

SLEEVE,CUTTER

$14.99

$

In Stock, only 1 left!

0

49022

Kawasaki 49022-2129

GEAR-BEVEL,17T

$43.99

$

Usually ships in 2-5 days

0

49022A

Kawasaki 49022-2130

GEAR-BEVEL,21T

$37.99

$

In Stock, only 1 left!

0

49060

Kawasaki 49060-2058

CAM,CUTTER

$14.99

$

In Stock, only 1 left!

0

56070

Kawasaki 56070-2035

LABEL-WARNING

$4.49

$

In Stock, only 1 left!

0

59005

Kawasaki 59005-2008

STRING,2.4X6900

$

$

Not available

59075

Kawasaki 59075-2018

CUTTER-CORD,M10,L

$36.99

$

In Stock, only 1 left!

0

59101

Kawasaki 59101-2108

REEL,CUTTER

$13.99

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2395

SCREW,5X16

$0.99

$

In Stock, Qty 8

0

92009A

$0.99

$

In Stock, Qty 6

0

92033

$

$

Not available

92045

Kawasaki 92045-2240

BEARING-BALL

$10.99

$

Usually ships in 2-5 days

0

92049

$

$

Not available

92143

$6.99

$

Usually ships in 2-5 days

0

92145

$4.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 92151-2099

BOLT,CUTTER,M10,L

$11.99

$

Usually ships in 2-5 days

0

92151A

Kawasaki 92151-2144

BOLT,SOCKET,6X8

$1.49

$

In Stock, Qty 8

0

92200

$0.99

$

In Stock, Qty 7

0

$7.49

$

In Stock, only 2 left!

0

112

Kawasaki 112D0608

BOLT-UPSET
(Superseded to 112AA0608)

$0.99

$

In Stock, only 3 left!

0

120

Kawasaki 120S0630

BOLT-SOCKET
(Superseded to 120CB0630)

$4.99

$

Usually ships in 2-5 days

0

480

Kawasaki 480J1000

RING,SNAP

$0.99

$

In Stock, Qty 5

0

481

Kawasaki 481J2800

CIRCLIP
(Superseded to 44044-002)

$1.99

$

Usually ships in 2-5 days

0

481A

Kawasaki 481J3200

CIRCLIP
(Superseded to 92033-R004)

$2.99

$

In Stock, only 1 left!

0

601

Kawasaki 601A6000

BEARING,BALL #6000

$

$

Not available

601A

Kawasaki 601A6000Z

BEARING,BALL #6000Z

$

$

Not available

601B

Kawasaki 601A6201

BEARING-BALL

$11.99

$

Usually ships in 2-5 days

0
