KBL 27 B (KBL27B-A3) - Kawasaki Brush Cutter PIPE/HANDLE/GUARD Parts Diagram

Brush Cutter

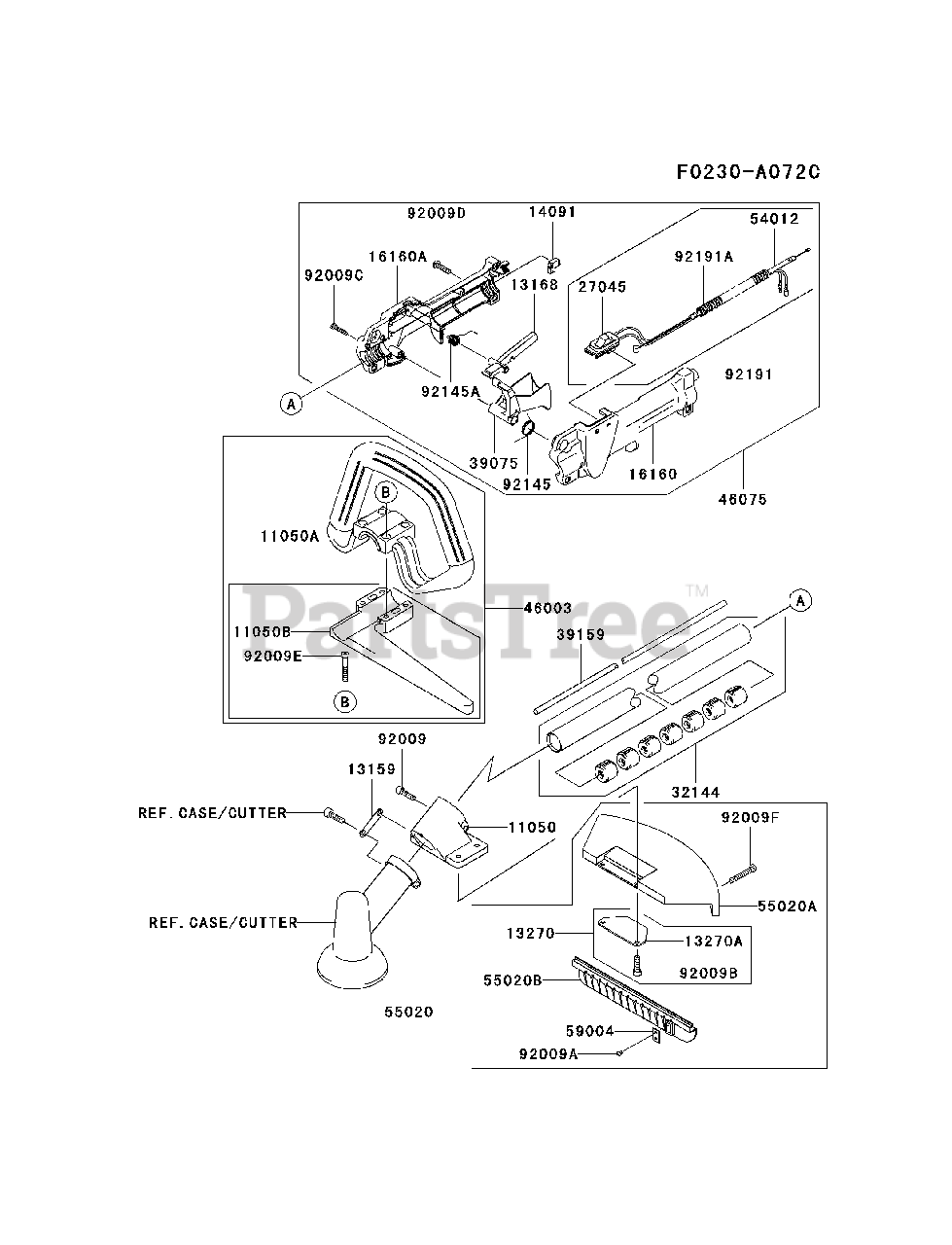

PIPE/HANDLE/GUARD Parts Diagram

  • Title

13270

Kawasaki 13270-T001

PLATE,SET

$13.99

$

Usually ships in 2-5 days

0

13270A

Kawasaki 13270-T002

PLATE

$

$

Not available

14091

Kawasaki 14091-T006

COVER,BLIND

$4.49

$

Usually ships in 2-5 days

0

16160

Kawasaki 16160-T001

BODY,GRIP,LH

$38.99

$

Usually ships in 2-5 days

0

16160A

Kawasaki 16160-T002

BODY,GRIP,RH

$20.99

$

Usually ships in 2-5 days

0

27045

Kawasaki 27045-T003

SWITCH-ASSY,STOP

$19.99

$

Usually ships in 2-5 days

0

32144

Kawasaki 32144-T001

PIPE-ASSY

$138.99

$

Usually ships in 2-5 days

0

39075

Kawasaki 39075-T001

LEVER-THROTTLE

$9.99

$

Usually ships in 2-5 days

0

39159

Kawasaki 39159-T001

SHAFT-DRIVE

$76.99

$

In Stock, only 1 left!

0

46003

Kawasaki 46003-T001

HANDLE,SET
(Superseded to 46003-T008)

$98.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-T004

GRIP

$116.99

$

In Stock, only 1 left!

0

54012

Kawasaki 54012-T003

CABLE-THROTTLE

$7.49

$

In Stock, only 1 left!

0

55020

Kawasaki 55020-T001

GUARD,SET
(Superseded to 55020-T011)

$147.99

$

Usually ships in 2-5 days

0

55020A

Kawasaki 55020-T002

GUARD,CUTTER
(Superseded to 55020-T011)

$147.99

$

Usually ships in 2-5 days

0

55020B

Kawasaki 55020-T003

GUARD
(Superseded to 55020-T010)

$27.99

$

In Stock, only 1 left!

0

11050

Kawasaki 11050-T001

BRACKET,GUARD

$36.99

$

Usually ships in 2-5 days

0

11050A

Kawasaki 11050-T003

BRACKET,SET
(Superseded to 11050-T013)

$

$

Not available

11050B

Kawasaki 11050-T004

BRACKET
(Superseded to 11050-T012)

$

$

Not available

13159

Kawasaki 13159-T001

CONNECTOR

$8.49

$

In Stock, only 2 left!

0

13168

Kawasaki 13168-T001

LEVER

$6.49

$

Usually ships in 2-5 days

0

59004

Kawasaki 59004-T001

CUTTER,STRING

$

$

Not available

92009

Kawasaki 92009-T003

SCREW,5X20

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 92009-T004

SCREW,4X10

$0.99

$

In Stock, only 2 left!

0

92009B

Kawasaki 92009-T006

SCREW,5X20

$0.99

$

In Stock, Qty 6

0

92009C

Kawasaki 92009-T009

SCREW,4X20

$0.99

$

In Stock, Qty 20+

0

92009D

Kawasaki 92009-T010

SCREW,5X20

$0.99

$

In Stock, Qty 7

0

92009E

Kawasaki 92009-T011

SCREW,5X35

$1.99

$

In Stock, Qty 7

0

92009F

Kawasaki 92009-T027

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-T002

SPRING

$2.49

$

In Stock, only 2 left!

0

92145A

Kawasaki 92145-T003

SPRING

$3.99

$

In Stock, only 1 left!

0

92191

Kawasaki 92191-T002

TUBE,ASSY

$35.99

$

Usually ships in 2-5 days

0

92191A

Kawasaki 92191-T003

TUBE

$1.49

$

Usually ships in 2-5 days

0
