KBL 26 A (HA026F-AS01) - Kawasaki Brush Cutter AIR-FILTER/MUFFLER Parts Diagram

Brush Cutter

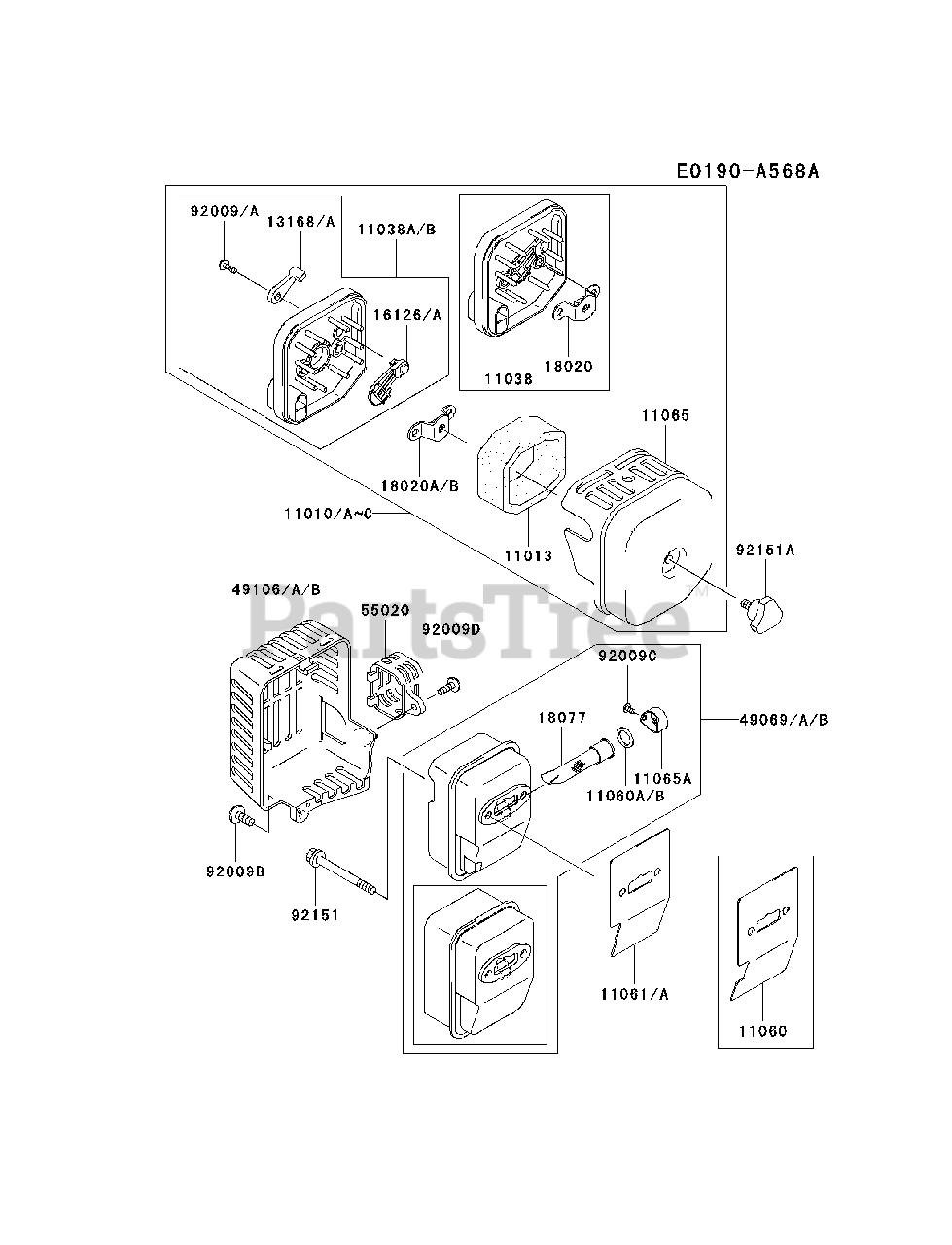

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11010

Kawasaki 11010-2514

FILTER-ASSY-AIR
(Superseded to 11010-2520)

$

$

Not available

11010A

Kawasaki 11010-2520

FILTER-ASSY-AIR
(Superseded to 11010-2529)

$

$

Not available

11010C

Kawasaki 11010-2529

FILTER-ASSY-AIR
(Superseded to 11010-2520)

$

$

Not available

11013

Kawasaki 11013-2182

ELEMENT-AIR FILTER

$2.49

$

In Stock, only 4 left!

0

11038

Kawasaki 11038-2059

CASE-ASSY-AIR FILTER
(Superseded to 11038-2067)

$12.99

$

Usually ships in 2-5 days

0

11038B

Kawasaki 11038-2067

CASE-ASSY-AIR FILTER
(Superseded to 11038-2059)

$12.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2400

GASKET,MUFFLER

$5.99

$

In Stock, only 1 left!

0

11060B

Kawasaki 11060-2434

GASKET,MUFFLER

$1.49

$

In Stock, Qty 5

0

11061A

$6.49

$

Usually ships in 2-5 days

0

11065

Kawasaki 11065-2060

CAP,AIR FILTER

$14.99

$

Usually ships in 2-5 days

0

11065A

$4.49

$

Usually ships in 2-5 days

0

13168A

$3.99

$

In Stock, Qty 6

0

16126A

$5.99

$

Usually ships in 2-5 days

0

18020

Kawasaki 18020-2078

BAFFLE
(Superseded to 18020-2082)

$4.49

$

In Stock, only 1 left!

0

18020B

Kawasaki 18020-2082

BAFFLE
(Superseded to 18020-2078)

$4.49

$

In Stock, only 1 left!

0

18077

Kawasaki 18077-2107

ARRESTER-SPARK
(Superseded to 18077-2106)

$

$

Not available

49069

Kawasaki 49069-2317

MUFFLER-ASSY
(Superseded to 49069-2352)

$53.99

$

Usually ships in 2-5 days

0

49069B

Kawasaki 49069-2352

MUFFLER-ASSY
(Superseded to 49069-2317)

$53.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2620

COVER-MUFFLER
(Superseded to 49106-2635)

$

$

Not available

49106B

Kawasaki 49106-2635

COVER-MUFFLER
(Superseded to 49106-2609)

$

$

Not available

55020

$2.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2359

SCREW,3X10

$1.49

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2393

SCREW,5X12

$0.99

$

In Stock, Qty 5

0

92009C

$0.99

$

In Stock, Qty 16

0

92009D

$0.99

$

In Stock, only 1 left!

0

92151

$0.99

$

In Stock, Qty 11

0

92151A

$3.99

$

In Stock, only 1 left!

0
