KBL 23 A (HA023F-BS01) - Kawasaki Brush Cutter STARTER Parts Diagram

Brush Cutter

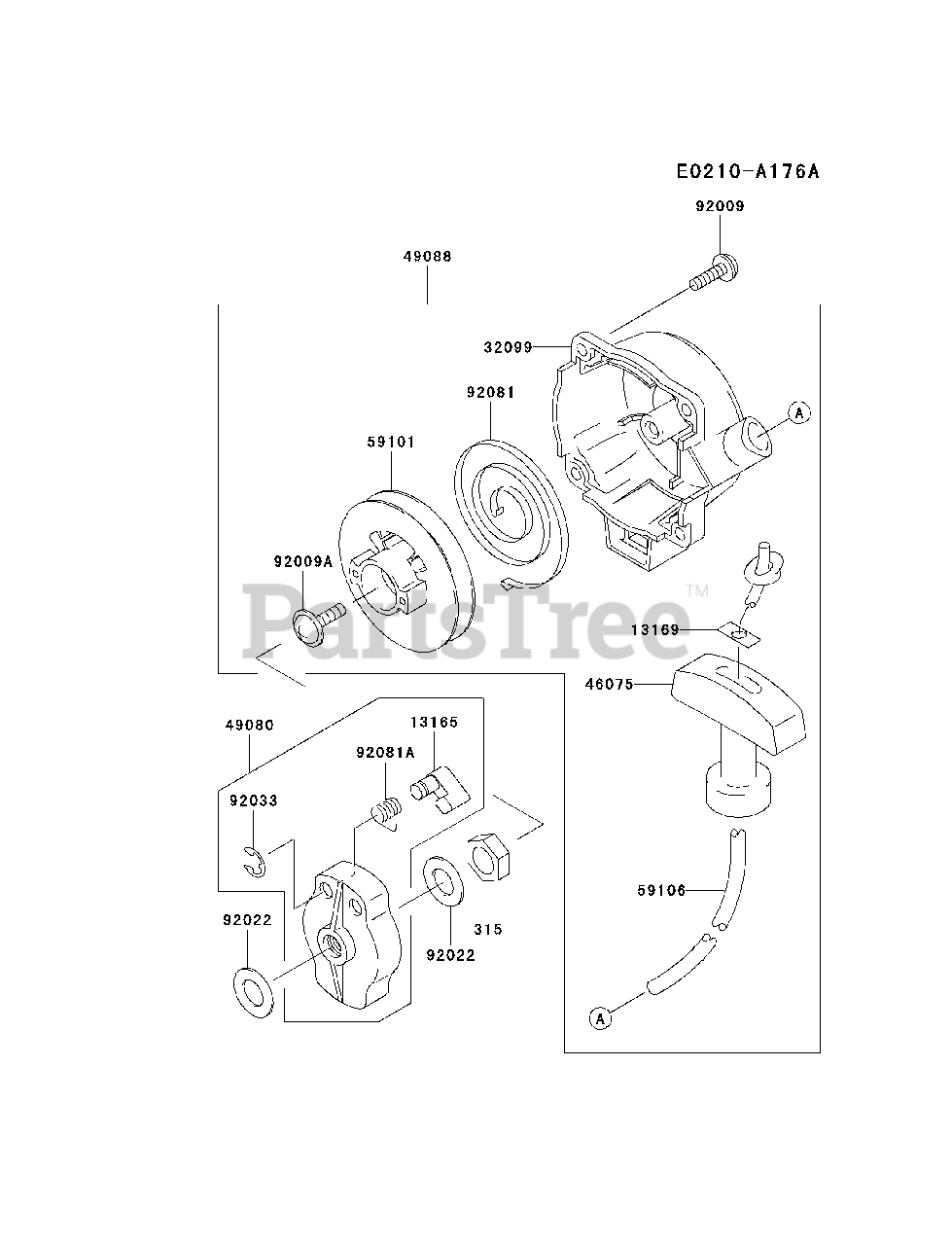

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2052

PAWL
(Superseded to 310301-3445A)

$2.99

$

In Stock, only 1 left!

0

13169

Kawasaki 13169-2386

PLATE,RECOIL STARTER

$2.49

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-2327

CASE,RECOIL STARTER
(Superseded to 32099-2393)

$19.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-2116

GRIP,RECOIL STARTER

$

$

Not available

49080

Kawasaki 49080-2182

PULLEY-STARTING

$11.99

$

Usually ships in 2-5 days

0

49088

Kawasaki 49088-2489

STARTER-RECOIL
(Superseded to 49088-2532)

$66.99

$

In Stock, Qty 9

0

59101

Kawasaki 59101-2106

REEL,RECOIL STARTER

$12.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-2147

ROPE,3.5X800

$4.99

$

In Stock, only 2 left!

0

92009

Kawasaki 92009-2236

SCREW,4X14
(Superseded to 92172-2061)

$0.99

$

In Stock, Qty 20+

0

92009A

$0.99

$

In Stock, only 4 left!

0

92022

Kawasaki 92022-2138

WASHER,8X16X1.2

$0.99

$

In Stock, Qty 9

0

92033

$0.99

$

In Stock, Qty 8

0

92081

Kawasaki 92081-2238

SPRING,RECOIL

$20.99

$

In Stock, only 1 left!

0

92081A

$10.99

$

Usually ships in 2-5 days

0

315

Kawasaki 315B0800

NUT-HEX-FINE

$

$

Not available
