KBL 23 A (HA023F-AS01) - Kawasaki Brush Cutter AIR-FILTER/MUFFLER Parts Diagram

Brush Cutter

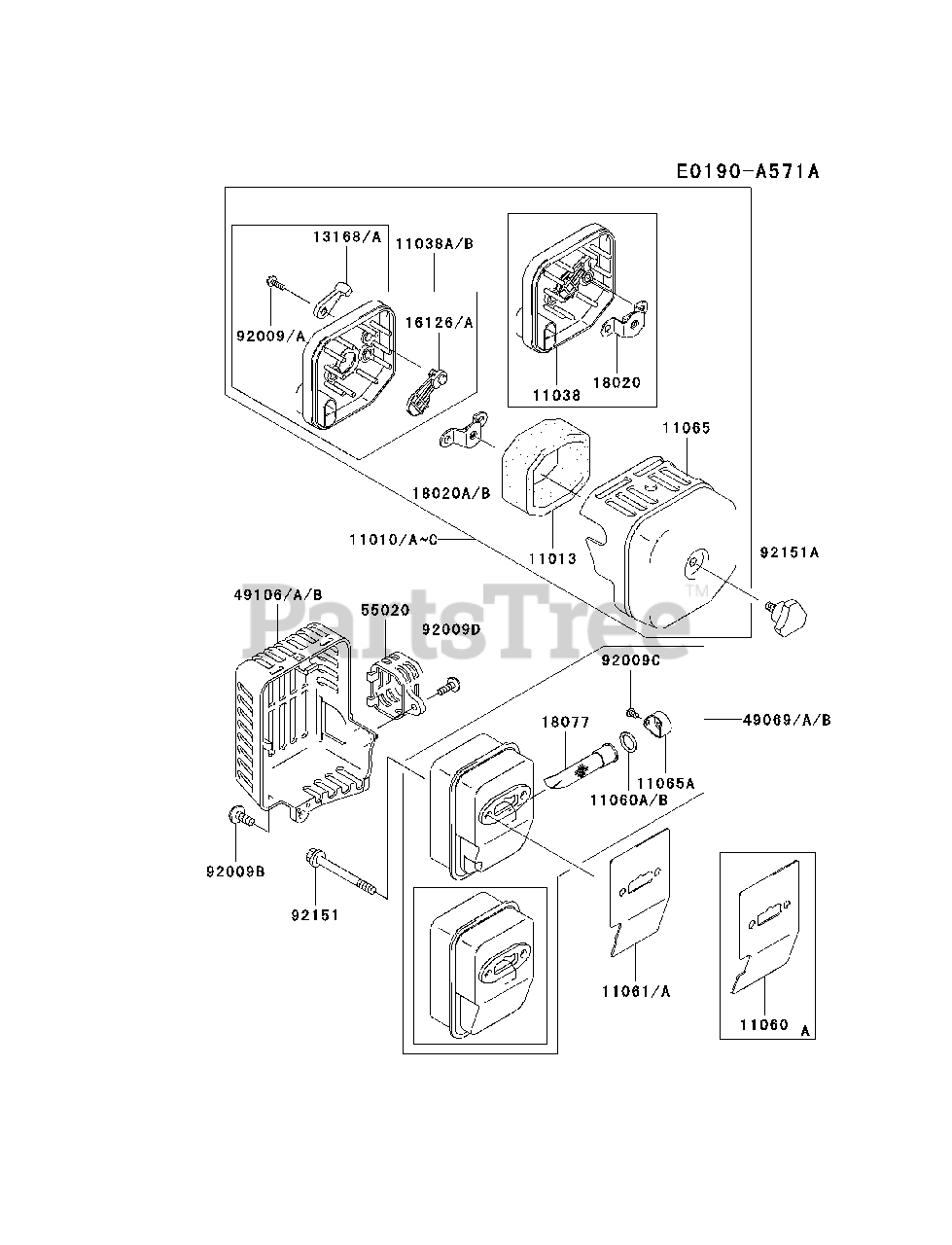

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11010

Kawasaki 11010-2513

FILTER-ASSY-AIR
(Superseded to 11010-2518)

$36.99

$

Usually ships in 2-5 days

0

11010A

Kawasaki 11010-2518

FILTER-ASSY-AIR
(Superseded to 11010-2527)

$36.99

$

Usually ships in 2-5 days

0

11010C

Kawasaki 11010-2527

FILTER-ASSY-AIR
(Superseded to 11010-2562)

$36.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2182

ELEMENT-AIR FILTER

$2.49

$

In Stock, Qty 20+

0

11038

Kawasaki 11038-2058

CASE-ASSY-AIR FILTER
(Superseded to 11038-2066)

$11.99

$

Usually ships in 2-5 days

0

11038B

Kawasaki 11038-2066

CASE-ASSY-AIR FILTER
(Superseded to 11038-2083)

$11.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2400

GASKET,MUFFLER

$5.99

$

In Stock, only 1 left!

0

11060B

Kawasaki 11060-2434

GASKET,MUFFLER

$1.49

$

In Stock, Qty 5

0

11061A

$6.49

$

Usually ships in 2-5 days

0

11065

Kawasaki 11065-2059

CAP,AIR FILTER

$7.99

$

Usually ships in 2-5 days

0

11065A

$4.49

$

Usually ships in 2-5 days

0

13168A

$3.99

$

In Stock, Qty 6

0

16126A

$3.99

$

Usually ships in 2-5 days

0

18020

Kawasaki 18020-2078

BAFFLE
(Superseded to 18020-2082)

$4.49

$

In Stock, only 1 left!

0

18020B

Kawasaki 18020-2082

BAFFLE
(Superseded to 18020-2078)

$4.49

$

In Stock, only 1 left!

0

18077

Kawasaki 18077-2107

ARRESTER-SPARK
(Superseded to 18077-2106)

$

$

Not available

49069

Kawasaki 49069-2316

MUFFLER-ASSY
(Superseded to 49069-2351)

$

$

Not available

49069B

Kawasaki 49069-2351

MUFFLER-ASSY
(Superseded to 49069-2316)

$

$

Not available

49106

Kawasaki 49106-2619

COVER-MUFFLER
(Superseded to 49106-2634)

$

$

Not available

49106B

Kawasaki 49106-2634

COVER-MUFFLER
(Superseded to 49106-2619)

$

$

Not available

55020

$2.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2359

SCREW,3X10

$1.49

$

Usually ships in 2-5 days

0

92009B

Kawasaki 92009-2393

SCREW,5X12

$0.99

$

In Stock, Qty 5

0

92009C

$0.99

$

In Stock, Qty 15

0

92009D

$0.99

$

In Stock, only 1 left!

0

92151

$0.99

$

In Stock, Qty 8

0

92151A

$3.99

$

In Stock, only 1 left!

0
