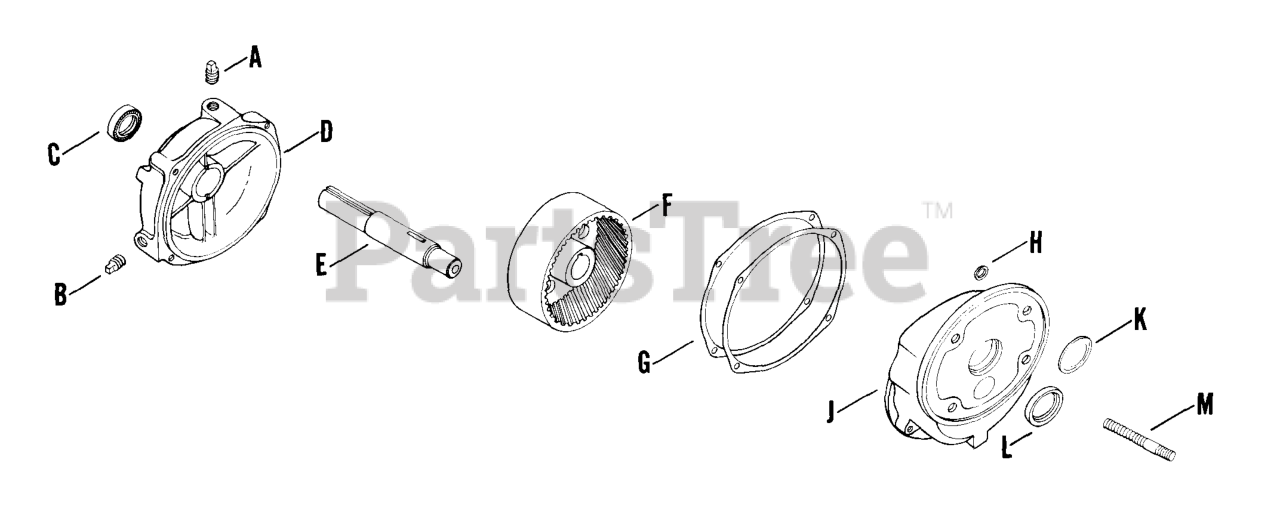

K91-31705 - Kohler K-Series Engine, Made for Simplex Sales, 4hp, 3kW Gear Reduction 020100811 Parts Diagram

K-Series Engine, Made for Simplex Sales, 4hp, 3kW

Gear Reduction 020100811 Parts Diagram

  • Title

A

Kohler 205013

PLUG - USE 41 139 01
(Superseded to 41 139 01-S)

$

$

Not available

B

Kohler X-75-2-S

PLUG,PIPE 1/4 NPTF SQUARE HD USE 25 139 53-S
(Superseded to 25 139 53-S)

$3.49

$

Usually ships in 2-5 days

0

C

Kohler X-271-11-S

SEAL - DISCONTINUED

$

$

Not available

D

Kohler A-221130-S

COVER - DISCONTINUED

Note: Includes bushing

$

$

Not available

E

Kohler 220214-S

SHAFT - DISCONTINUED

$

$

Not available

F

Kohler 220213-S

GEAR - DISCONTINUED

$

$

Not available

G

Kohler 221145-S

GASKET - DISCONTINUED

$

$

Not available

G

Kohler 221146-S

GASKET - DISCONTINUED

$

$

Not available

G

Kohler 220218-S

GASKET

$9.99

$

Usually ships in 2-5 days

0

H

Kohler D-997-S

DISCONTINUED

$

$

Not available

J

Kohler A-221131

HOUSING - USE A-221243
(Superseded to A-221243-S)

Note: Includes bushing

$

$

Not available

K

Kohler X-230-11-S

PLUG, WELCH EXPANSION

$2.99

$

In Stock, only 2 left!

0

L

Kohler X-271-15-S

SEAL

$11.99

$

Usually ships in 2-5 days

0
