K660-33191 - Kohler K-Series Engine, Basic Version, 24hp, 17kW Carburetor - Pg. 5.10 0225003316 Parts Diagram

K-Series Engine, Basic Version, 24hp, 17kW

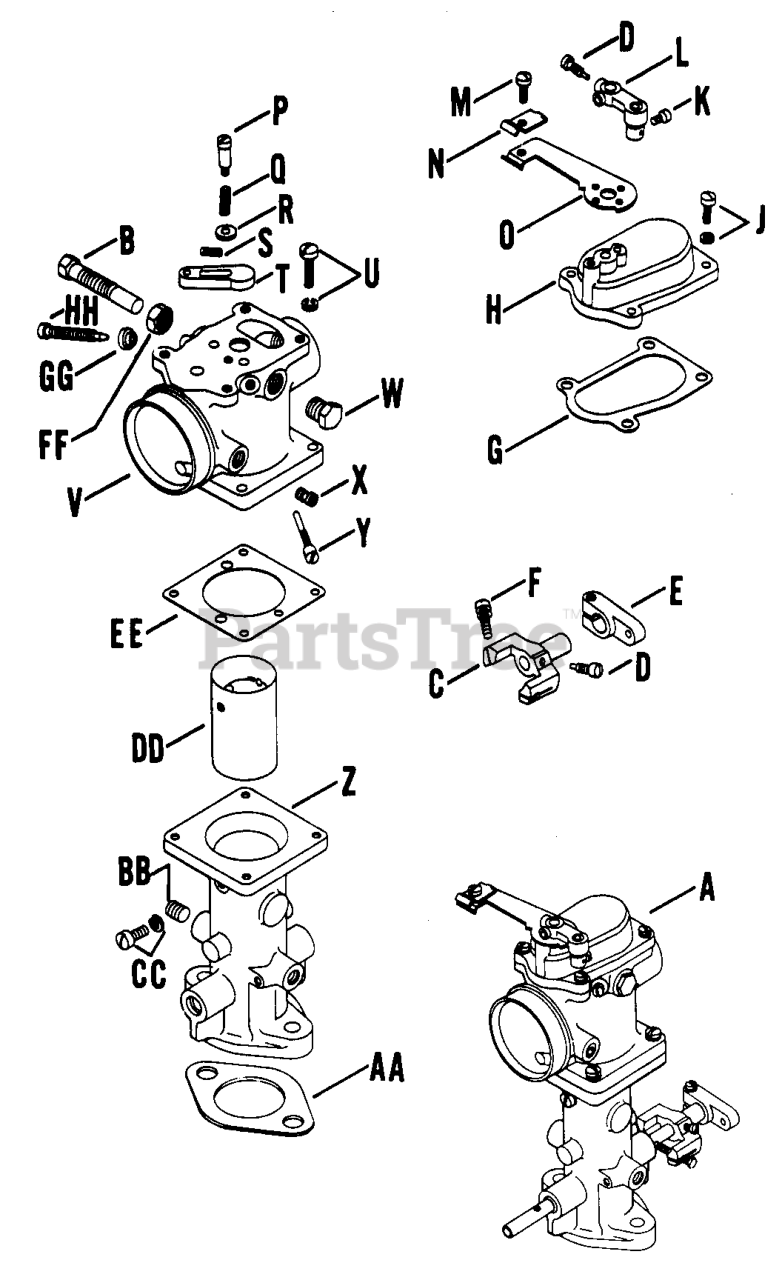

Carburetor - Pg. 5.10 0225003316 Parts Diagram

  • Title
A

Kohler A-271105

DISCONTINUED

$

$

Not available

B

Kohler 272267

Screw, fuel adjusting (Discontinued--Not Available)

$

$

Not available

C

Kohler 272265

Collar, throttle shaft

$

$

Not available

D

Kohler 272397

Screw, set

$

$

Not available

E

Kohler 272258

Lever, throttle

$

$

Not available

F

Kohler 272257

Screw, throttle stop adjusting

$

$

Not available

G

Kohler 272271

Gasket, cover plate

$

$

Not available

H

Kohler 272272

Plate, cover

$

$

Not available

J

Kohler X-15-12

DISCONTINUED

$

$

Not available

K

Kohler 272398

Screw, choke swivel

$

$

Not available

L

Kohler 272244

Lever, choke

$

$

Not available

M

Kohler 272399

Screw, support clamp

$

$

Not available

N

Kohler 272245

Clamp, choke support

$

$

Not available

O

Kohler 272247

Support, choke

$

$

Not available

P

Kohler 272401

Screw, valve lever pivot

$

$

Not available

Q

Kohler 272249

Spring, pressure

$

$

Not available

R

Kohler 272250

Washer, spring retainer

$

$

Not available

S

Kohler 272269

Spring, latching

$

$

Not available

T

Kohler 272270

Lever, valve

$

$

Not available

U

Kohler 272400

Screw and split washer, air horn

$

$

Not available

V

Kohler 272254

Housing, air horn with nozzle

$

$

Not available

W

Kohler 272251

Plug, fuel adjusting

$

$

Not available

X

Kohler 272402

Screw, balance tube orifice

$

$

Not available

Y

Kohler 261253

Plug, starting adjusting

$

$

Not available

Z

Kohler 272261

Tube, throttle

$

$

Not available

AA

Kohler 272264

DISCONTINUED

$

$

Not available

BB

Kohler X-75-4-S

PLUG, PIPE DISCONTINUED
(Superseded to 25 139 55-S)

$

$

Not available

CC

Kohler 272404

Screw and split washer, venturi

$

$

Not available

DD

Kohler 272256

Venturi #30

$

$

Not available

EE

Kohler 272255

Gasket, air horn

$

$

Not available

FF

Kohler 272268

Locknut, fuel adjusting

$

$

Not available

GG

Kohler 272405

Locknut, starting adjusting

$

$

Not available

HH

Kohler 272266

Screw, starting adjusting

$

$

Not available
