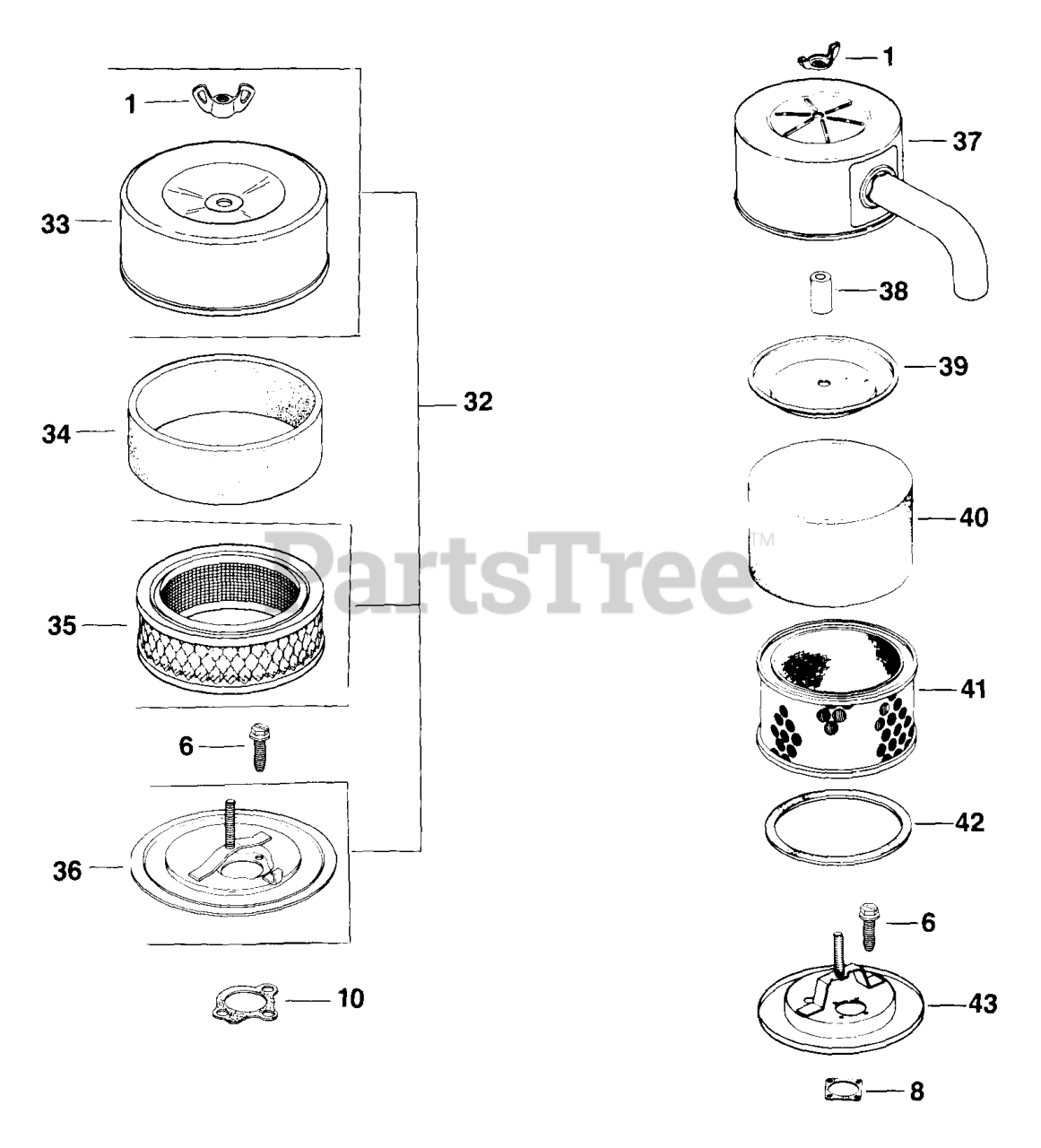

K582-36384 - Kohler K-Series Engine, Made for Allen Engineering, 23hp, 17.16kW Air Intake (Cont.) 0219002759 Parts Diagram

K-Series Engine, Made for Allen Engineering, 23hp, 17.16kW

Air Intake (Cont.) 0219002759 Parts Diagram

  • Title

1

Kohler X-276-7-S

NUT, WING 1/4-20 USE 25 100 15-S
(Superseded to 25 100 15-S)

$

$

Not available

6

Kohler X-67-64-S

SCREW, WSH HD TAP #10-32X7/16" USE 25 086 101-S
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 277093-S

GASKET, AIR CLEANER

$8.49

$

In Stock, Qty 6

0

10

Kohler 25 041 06-S

GASKET, AIR CLEANER ELBOW

$3.49

$

In Stock, only 2 left!

0

32

Kohler A-235100-S

CLEANER - DISCONTINUED

Note: Includes 1,33,35,36,25,113,07

$

$

Not available

33

Kohler 235102-S

COVER, AIR CLEANER - DISCONTINUED

$

$

Not available

34

Kohler 237421-S1

PRE-CLEANER USE 237421-S
(Superseded to 237421-S)

$6.99

$

In Stock, only 2 left!

0

35

Kohler 235116-S1

AIR FILTER/PRE-CLEANER KIT USE 25 883 03-S1
(Superseded to 25 883 03-S1)

$27.99

$

Usually ships in 2-5 days

0

36

Kohler 235101-S

BASE, AIR CLEANER - DISCONTINUED

$

$

Not available

2511307-S

Kohler 25 113 07-S

DECAL, AIR CLEANER - DISCONTINUED

$

$

Not available
