K482-35213 - Kohler K-Series Engine, Made for Jacobsen, 18hp, 13.4kW Crankcase 0217005919 Parts Diagram

K-Series Engine, Made for Jacobsen, 18hp, 13.4kW

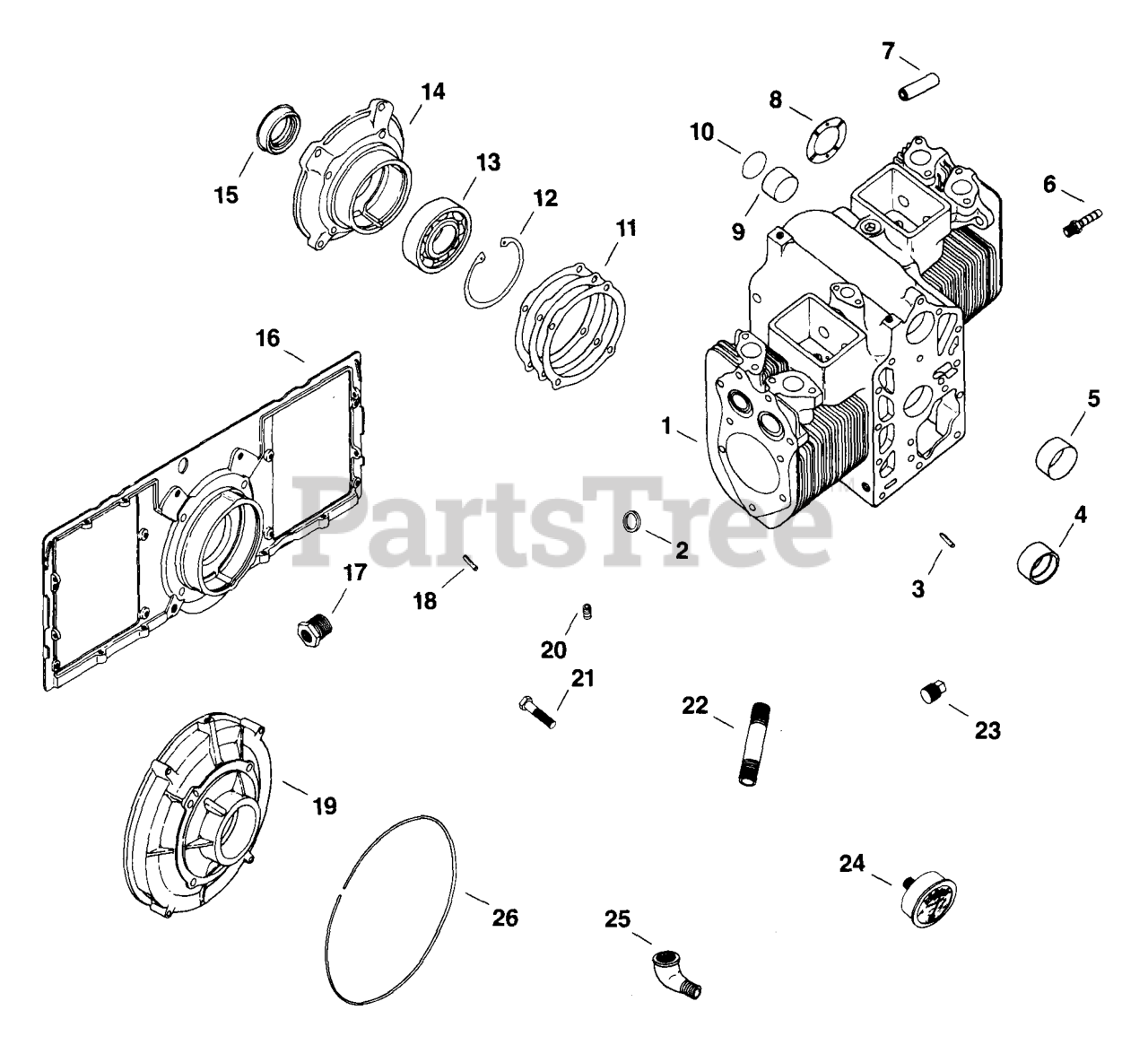

Crankcase 0217005919 Parts Diagram

  • Title

1

Kohler A-277118

BLOCK - USE 48 005 04
(Superseded to 48 005 04)

Note: Includes 2,4,5,7,9. Discontinued not available at Kohler Co.. Replaced by 48 005 04

$

$

Not available

2

Kohler 230170-S

INSERT - DISCONTINUED

$

$

Not available

3

Kohler X-599-2-S

PIN-DISCONTINUED

$

$

Not available

4

Kohler 48 030 03

BEARING - USE 48 030 06
(Superseded to 48 030 06)

$111.99

$

Usually ships in 2-5 days

0

4

Kohler 48 030 04

BEARING - USE 48 030 07
(Superseded to 48 030 07-S)

$251.99

$

Usually ships in 2-5 days

0

4

Kohler 48 030 05-S

BEARING, MAIN .020

$191.99

$

Usually ships in 2-5 days

0

5

Kohler 277038

BUSHING - USE 48 158 02
(Superseded to 48 158 03)

$33.99

$

Usually ships in 2-5 days

0

7

Kohler 235007-S

GUIDE, VALVE - DISCONTINUED

$

$

Not available

9

Kohler 277039-S

BUSHING - (#DSC)

$

$

Not available

10

Kohler 160037-S

PLUG

$7.49

$

Usually ships in 2-5 days

0

11

Kohler 277087-S

GASKET

$14.99

$

Usually ships in 2-5 days

0

12

Kohler X-269-31-S

RING (#DSC)

$

$

Not available

13

Kohler 277062-S

BEARING

$302.99

$

Usually ships in 2-5 days

0

14

Kohler 48 009 01-S

PLATE - DISCONTINUED

$

$

Not available

15

Kohler 277065-S

SEAL

$36.99

$

Usually ships in 2-5 days

0

20

Kohler X-75-23-S

PLUG, CTSK PIPE 1/8" USE 25 139 60-S
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

20

Kohler 47 139 01-S

PLUG - DISCONTINUED

$

$

Not available

21

Kohler 270956-S

BOLT, HEX CAP USE 25 086 116-S
(Superseded to 25 086 116-S)

$

$

Not available
