K482-35213 - Kohler K-Series Engine, Made for Jacobsen, 18hp, 13.4kW Camshaft & Valves 021700414 Parts Diagram

K-Series Engine, Made for Jacobsen, 18hp, 13.4kW

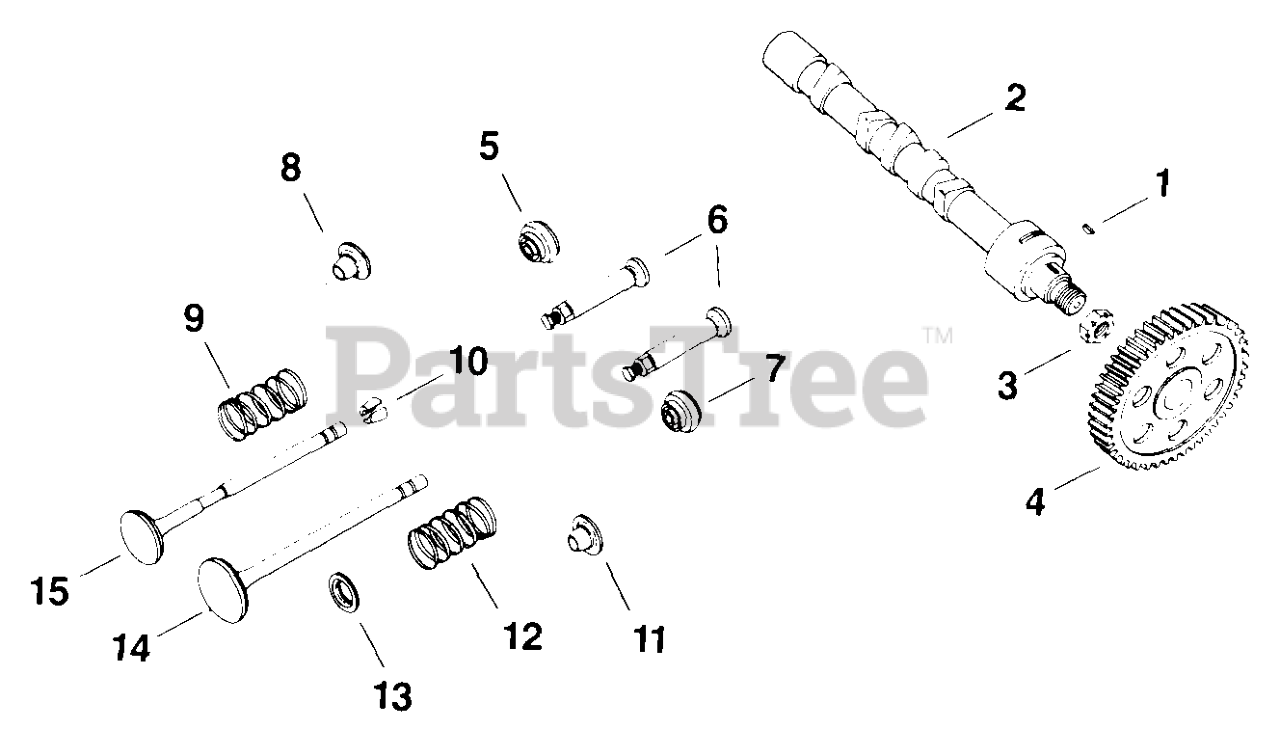

Camshaft & Valves 021700414 Parts Diagram

  • Title

1

Kohler X-43-1-S

KEY, 1/8" X 1/2"

$3.99

$

Usually ships in 2-5 days

0

2

Kohler 48 012 01-S

CAMSHAFT

$

$

Not available

3

Kohler X-119-17-S

DISCONTINUED

$

$

Not available

4

Kohler 277012

KIT - USE 48 755 34
(Superseded to 48 755 34-S)

Note: Replaced by 48 755 34-S

$

$

Not available

5

Kohler 230020

ROTATOR - USE 52 413 01
(Superseded to 52 413 01)

Note: Replaced by 52 413 01-S

$35.99

$

Usually ships in 2-5 days

0

6

Kohler D-277031-S

TAPPET - DISCONTINUED

$

$

Not available

9

Kohler 235168-S

SPRING, INTAKE VALVE - DISCONTINUED

$

$

Not available

10

Kohler 41 755 10-S

KIT, RETAINER

$12.99

$

In Stock, Qty 5

0

11

Kohler 230011-S

RETAINER, VALVE SPRING

$9.49

$

In Stock, Qty 6

0

12

Kohler 235010-S

SPRING, EXHAUST VALVE-(#DSC)

$

$

Not available

13

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

14

Kohler 235008-S

VALVE, INTAKE - DISCONTINUED

$

$

Not available

15

Kohler 235838-S

VALVE, EXHAUST

$113.99

$

Usually ships in 2-5 days

0
