K482-35123 - Kohler K-Series Engine, Basic Version, 18hp, 13.4kW Crankcase 021700599 Parts Diagram

K-Series Engine, Basic Version, 18hp, 13.4kW

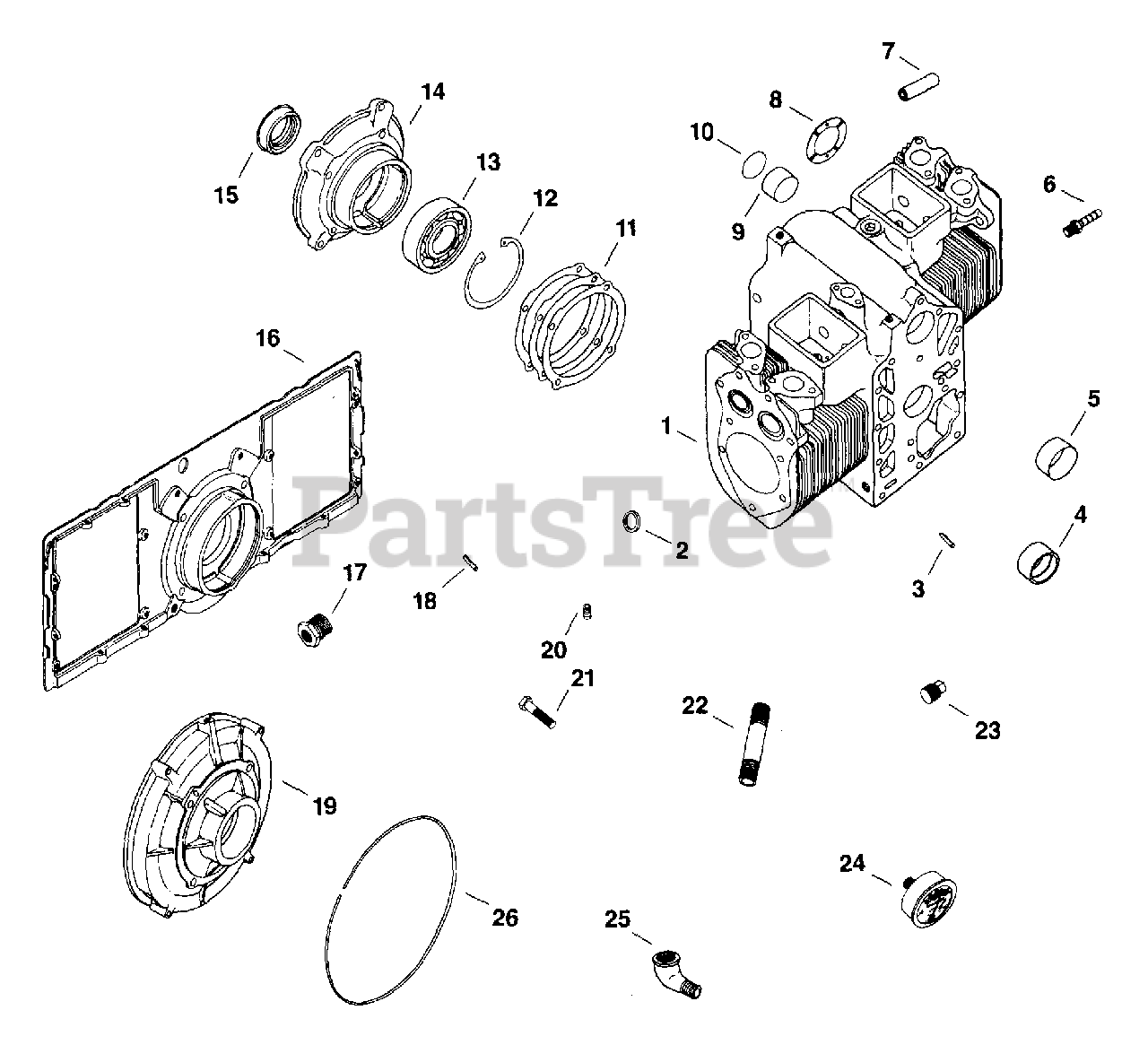

Crankcase 021700599 Parts Diagram

  • Title
1

Kohler A-277118

BLOCK - USE 48 005 04
(Superseded to 48 005 04)

Note: Includes 2,4,5,7,9. Discontinued not available at Kohler Co.. Replaced by 48 005 04

$

$

Not available

2

Kohler 230170-S

INSERT - DISCONTINUED

$

$

Not available

$

$

Not available

4

Kohler 48 030 04

BEARING - USE 48 030 07
(Superseded to 48 030 07-S)

$251.99

$

Usually ships in 2-5 days

0

4

Kohler 48 030 05-S

BEARING, MAIN .020

$191.99

$

Usually ships in 2-5 days

0

4

$111.99

$

Usually ships in 2-5 days

0

5

Kohler 277038

BUSHING - USE 48 158 02
(Superseded to 48 158 03)

$33.99

$

Usually ships in 2-5 days

0

7

Kohler 235007-S

GUIDE, VALVE - DISCONTINUED

$

$

Not available

8

$68.99

$

Usually ships in 2-5 days

0

9

Kohler 277039-S

BUSHING - (#DSC)

$

$

Not available

10

$7.49

$

Usually ships in 2-5 days

0

11

$14.99

$

Usually ships in 2-5 days

0

11

$9.99

$

Usually ships in 2-5 days

0

11

$13.99

$

Usually ships in 2-5 days

0

14

Kohler 277006

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

15

$36.99

$

Usually ships in 2-5 days

0

$

$

Not available

20

Kohler X-75-23-S

PLUG, CTSK PIPE 1/8" USE 25 139 60-S
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

20

Kohler 47 139 01-S

PLUG - DISCONTINUED

$

$

Not available

21

Kohler 270956-S

BOLT, HEX CAP USE 25 086 116-S
(Superseded to 25 086 116-S)

$

$

Not available
