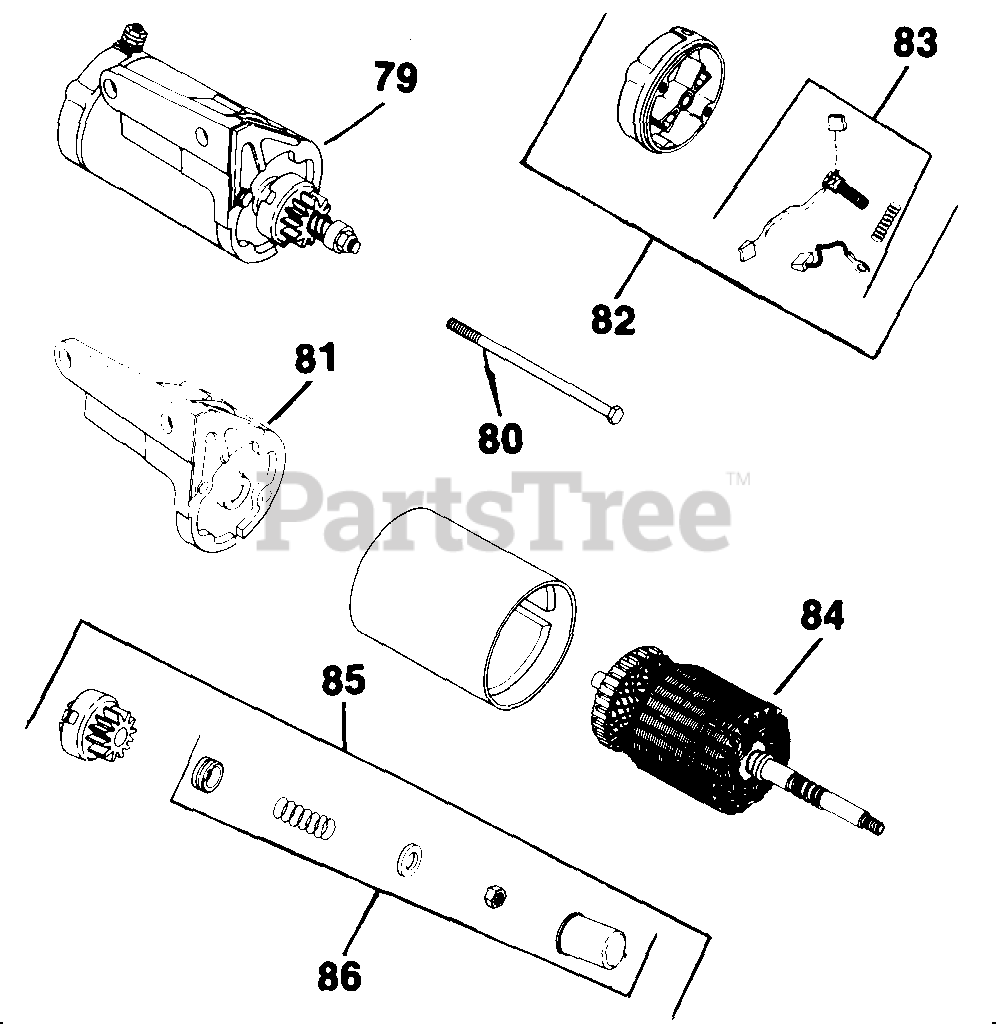

K321-6058 - Kohler K-Series Engine, Made for Arps Corp., 14hp, 10.4kW Electric Start (Cont.) 11-10-200 (TP-691-B) Rev 10/17/2006 Parts Diagram

K-Series Engine, Made for Arps Corp., 14hp, 10.4kW

Electric Start (Cont.) 11-10-200 (TP-691-B) Rev 10/17/2006 Parts Diagram

  • Title

79

Kohler A-237511

STARTER - USE 45 098 10
(Superseded to 45 098 10)

Note: Includes 80-86. See Note for proper application.

$417.99

$

Usually ships in 2-5 days

0

80

Kohler 237646

SCREW - USE 12 086 02
(Superseded to 12 086 02-S)

Note: Replaced by 12 086 02-S

$

$

Not available

81

Kohler 237361-S

BRACKET - DISCONTINUED

$

$

Not available

82

Kohler 48 227 04

CAP - DISCONTINUED

$

$

Not available

83

Kohler 48 755 15

KIT - USE 52 755 15
(Superseded to 52 755 15)

Note: Replaced by 52 755 15

$

$

Not available

84

Kohler 47 170 01-S

ARMATURE

$487.99

$

Usually ships in 2-5 days

0

85

Kohler 47 755 07

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Includes 86

$

$

Not available

86

Kohler 47 755 13

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

X-67-62-S

Kohler X-67-62-S

SCREW, WSH HD TAP 1/4-20X3/4" USE 25 086 100-S
(Superseded to 25 086 100-S)

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

X-22-1-S

Kohler X-22-1-S

WASHER, SPRING LOCK 3/8"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
