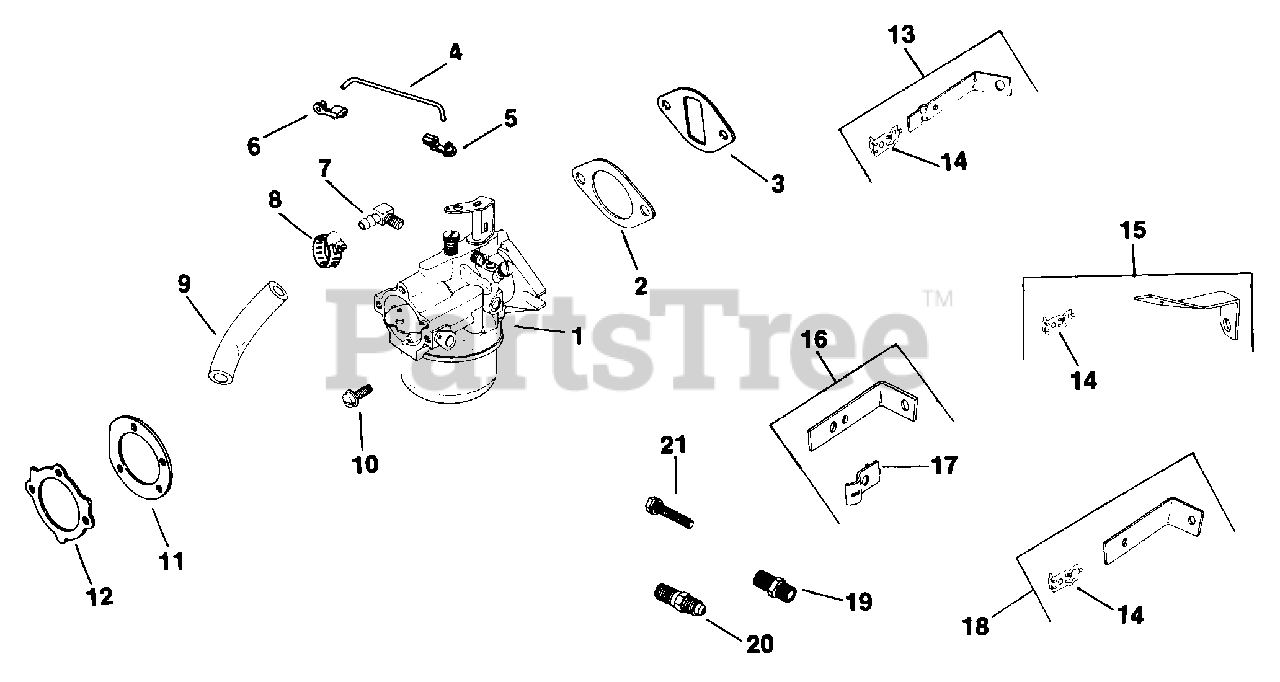

K321-6058 - Kohler K-Series Engine, Made for Arps Corp., 14hp, 10.4kW Carburetor (TP-691-B) Rev 10/17/2006 Parts Diagram

K-Series Engine, Made for Arps Corp., 14hp, 10.4kW

Carburetor (TP-691-B) Rev 10/17/2006 Parts Diagram

  • Title

1

Kohler 47 053 15

CARBURETOR - USE 47 853 04
(Superseded to 47 853 30)

Note: Before Serial No. 1735210504; Adjustable jet assembly

$

$

Not available

1

Kohler 47 853 04

CARBURETOR - USE 47 853 30
(Superseded to 47 853 30)

Note: After Serial No. 1735210494; Includes 2-6,12, Carburetor assembly 47 053 69.

$

$

Not available

1

Kohler 47 853 30-S

KIT, CARBURETOR W/LINKAGE

Note: After Serial No. 1735210494; Includes 2-6,12, Carburetor assembly 77 053 07 or 47 053 97.

$

$

Not available

3

Kohler 271030-S

GASKET, CARBURETOR

$7.49

$

Usually ships in 2-5 days

0

4

Kohler 47 079 11-S

LINKAGE

$12.99

$

In Stock, only 2 left!

0

5

Kohler 47 158 07-S

BUSHING

$6.49

$

In Stock, only 1 left!

0

6

Kohler 25 158 09

BUSHING - USE 25 158 11
(Superseded to 25 158 11)

Note: Replaced by 25 158 11-S

$5.99

$

In Stock, only 1 left!

0

7

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

Note: Copper fuel line use 231509-S

$14.99

$

In Stock, only 1 left!

0

10

Kohler X-770-1-S

SCREW, SLT HD 5/16-18X1" - DISCONTINUED

$

$

Not available

12

Kohler 275341-S

GASKET

$6.49

$

Usually ships in 2-5 days

0

13

Kohler A-236919-S

BRACKET

Note: Includes 14

$

$

Not available

14

Kohler 235603-S

CLIP

$7.49

$

In Stock, only 1 left!

0
