K321-60393 - Kohler K-Series Engine, Made for Toro, 14hp, 10.4kW Governor (TP-691-B) Rev 11/03/2006 Parts Diagram

K-Series Engine, Made for Toro, 14hp, 10.4kW

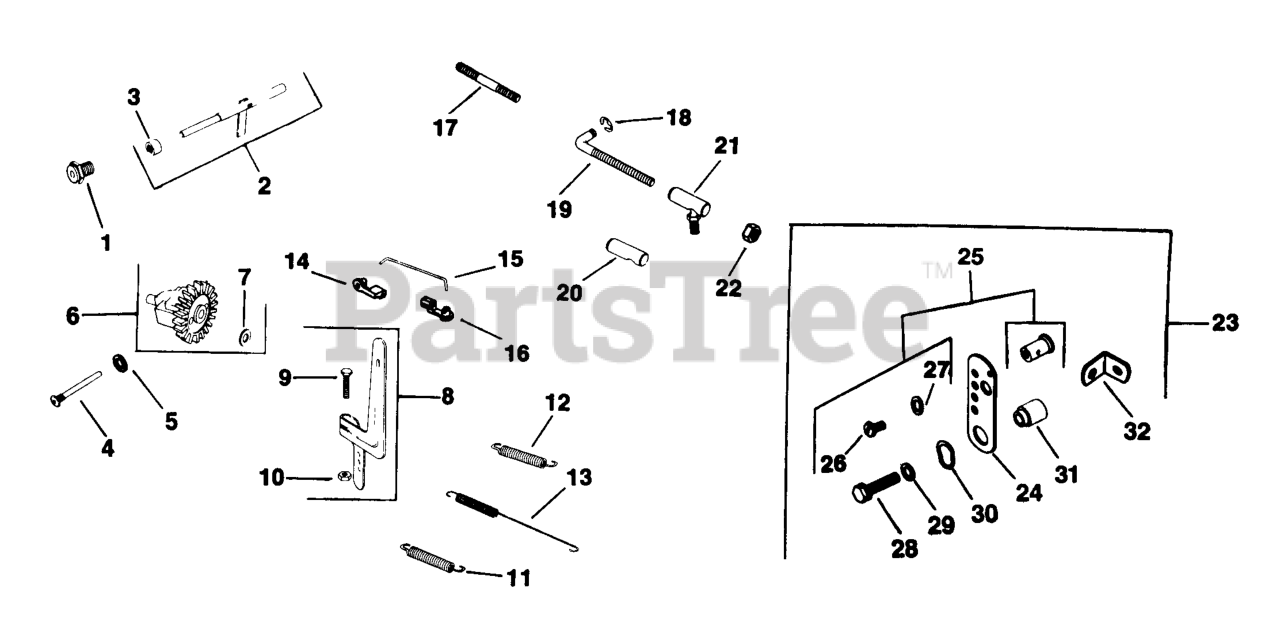

Governor (TP-691-B) Rev 11/03/2006 Parts Diagram

  • Title
1

Kohler 235476-S

BUSHING

$

$

Not available

2

Kohler A-235256-S

KIT, SHAFT

Note: Includes 3

$46.99

$

Usually ships in 2-5 days

0

3

Kohler X-400-80-S

SPACER USE 25 112 17-S
(Superseded to 25 112 17-S)

Note: After Serial No. 3173783

$9.49

$

Usually ships in 2-5 days

0

$10.99

$

Usually ships in 2-5 days

0

6

Kohler A-235743-S

KIT, GOVERNOR GEAR

Note: Includes 7

$79.99

$

Usually ships in 2-5 days

0

7

Kohler 237022-S

WASHER

Note: Use with nylon gear. Use X-25-6-S7-S w/steel gear

$7.49

$

Usually ships in 2-5 days

0

8

Kohler 45 087 03-S

LEVER - DISCONTINUED

Note: Includes 9,10

$

$

Not available

9

Kohler X-776-1-S

DISCONTINUED - SCREW

$

$

Not available

10

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

11

$17.99

$

Usually ships in 2-5 days

0

18

Kohler 235278-S

RETAINER

Note: Order according to design used on engine.

$6.49

$

In Stock, only 1 left!

0

24

Kohler 236249-S

BRACKET - DISCONTINUED

$

$

Not available

24

Kohler 235086-S

BRACKET-DISCONTINUED

$

$

Not available

25

Kohler 48 755 10-S

KIT, CLAMP

Note: Includes 26,27

$22.99

$

Usually ships in 2-5 days

0

27

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

28

$3.99

$

Usually ships in 2-5 days

0

29

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

30

Kohler 275690-S

WASHER, SPRING 11/32"

$6.49

$

In Stock, only 2 left!

0

31

$

$

Not available

32

Kohler 235084-S

BRACKET, ADJUSTING SCREW - DISCONTINUED

$

$

Not available

X-25-58-S

Kohler X-25-58-S

WASHER

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

X-102-3-S

Kohler X-102-3-S

SCREW, HEX SOCKET HEAD CAP USE 25 086 90-S
(Superseded to 25 086 90-S)

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
