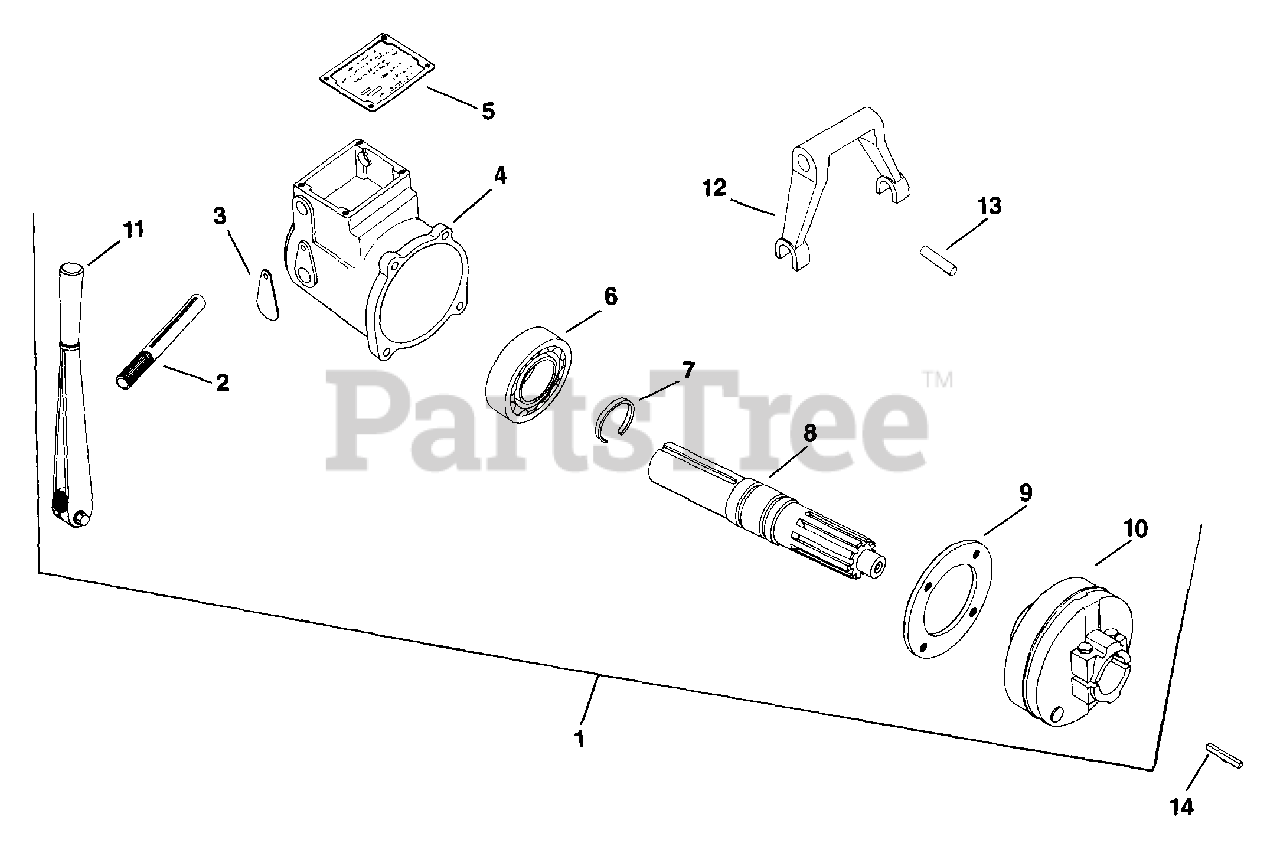

K321-6025 - Kohler K-Series Engine, Made for Rosco Mfg., 14hp, 10.4kW Clutch (TP-691-B) Rev 10/17/2006 Parts Diagram

K-Series Engine, Made for Rosco Mfg., 14hp, 10.4kW

Clutch (TP-691-B) Rev 10/17/2006 Parts Diagram

  • Title

1

Kohler A-235020-S

CLUTCH - DISCONTINUED

Note: Includes 2-13

$

$

Not available

2

Kohler 274117-S

SHAFT - DISCONTINUED

$

$

Not available

3

Kohler 234088

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

4

Kohler 234086

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

5

Kohler 234087

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

6

Kohler 234090-S

BEARING - DISCONTINUED

$

$

Not available

7

Kohler 230305

SNAP RING - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

8

Kohler 234091

SHAFT - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

9

Kohler 234092-S

PLATE - DISCONTINUED

$

$

Not available

10

Kohler A-234093

DISCONTINUED

Note: Discontinued not available at Kohler Co. Includes 15-29

$

$

Not available

11

Kohler A-234026-S

LEVER - DISCONTINUED

$

$

Not available

12

Kohler A-234027

YOKE - USE 24 471 01
(Superseded to 24 471 01)

$

$

Not available

13

Kohler 274101-S

PIN

$7.49

$

Usually ships in 2-5 days

0

14

Kohler X-286-11

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

X-8-7-S

Kohler X-8-7-S

SCREW, CAP HD 7/19-14x1"-DISC.

Note: NOT ILLUSTRATED

$

$

Not available

X-23-1-S

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
