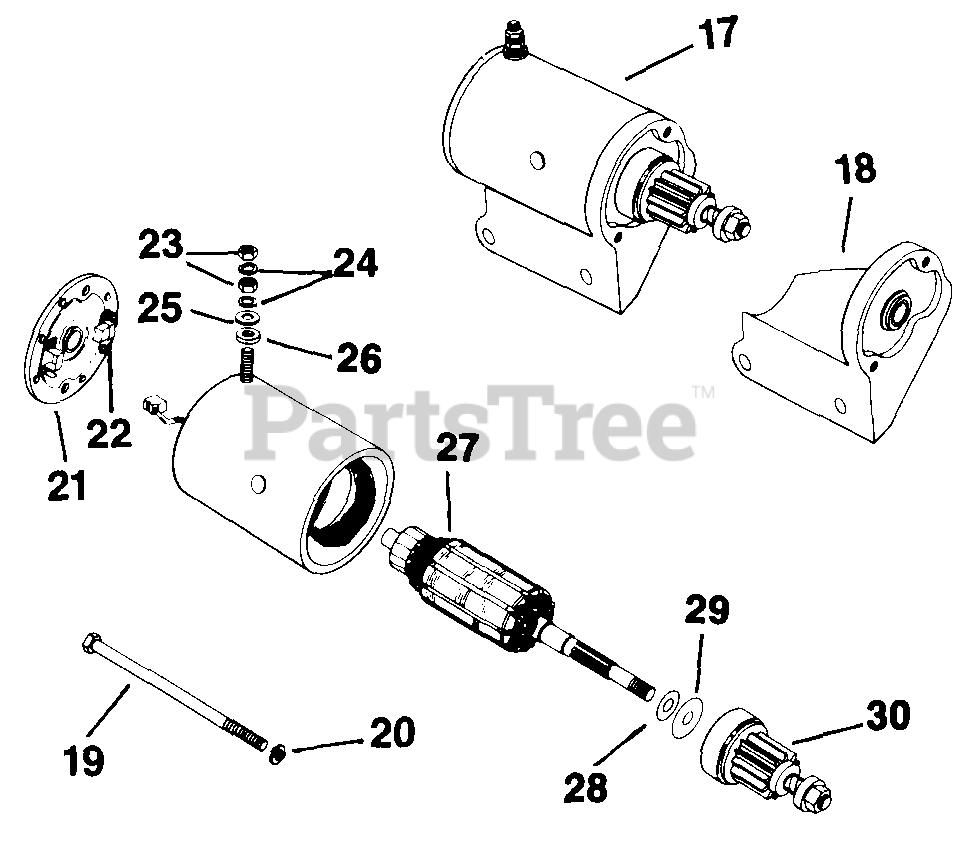

K321-6022 - Kohler K-Series Engine, Made for Jacobsen, 14hp, 10.4kW Electric Start (Cont.) 11-10-200 (TP-691-B) Rev 10/17/2006 Parts Diagram

K-Series Engine, Made for Jacobsen, 14hp, 10.4kW

Electric Start (Cont.) 11-10-200 (TP-691-B) Rev 10/17/2006 Parts Diagram

  • Title

17

Kohler A-236292-S

KIT, STARTER

Note: Includes 18-30. Replaced by A-236292-S kit. See Note for proper application.

$621.99

$

Usually ships in 2-5 days

0

18

Kohler 236627-S

DISCONTINUED

$

$

Not available

19

Kohler 236577-S

BOLT - DISCONTINUED

$

$

Not available

20

Kohler 236574

KIT - USE 237761
(Superseded to 237761)

Note: Replaced by 237761 - Discontinued not available at Kohler Co.

$

$

Not available

21

Kohler 236628

CAP - DISCONTINUED

$

$

Not available

22

Kohler 236576

KIT - DISCONTINUED
(Superseded to 82 755 28)

$

$

Not available

23

Kohler 236575

KIT - USE 237761
(Superseded to 237761)

Note: Replaced by 237761 - Discontinued not available at Kohler Co.

$

$

Not available

24

Kohler 236594

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

25

Kohler 236573

KIT - USE 237761
(Superseded to 237761)

Note: Replaced by 237761 - Discontinued not available at Kohler Co.

$

$

Not available

26

Kohler 236572

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

27

Kohler 236571-S

ARMATURE - DISCONTINUED

$

$

Not available

28

Kohler 236570

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

29

Kohler 236568

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

30

Kohler 236562

DRIVE - DISCONTINUED

$

$

Not available

X-67-62-S

Kohler X-67-62-S

SCREW, WSH HD TAP 1/4-20X3/4" USE 25 086 100-S
(Superseded to 25 086 100-S)

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

X-22-1-S

Kohler X-22-1-S

WASHER, SPRING LOCK 3/8"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
