K301-4780 - Kohler K-Series Engine, Made for F. E. Meyers, 12hp, 9kW Flywheel 13-10-1 (TP-2097) Parts Diagram

K-Series Engine, Made for F. E. Meyers, 12hp, 9kW

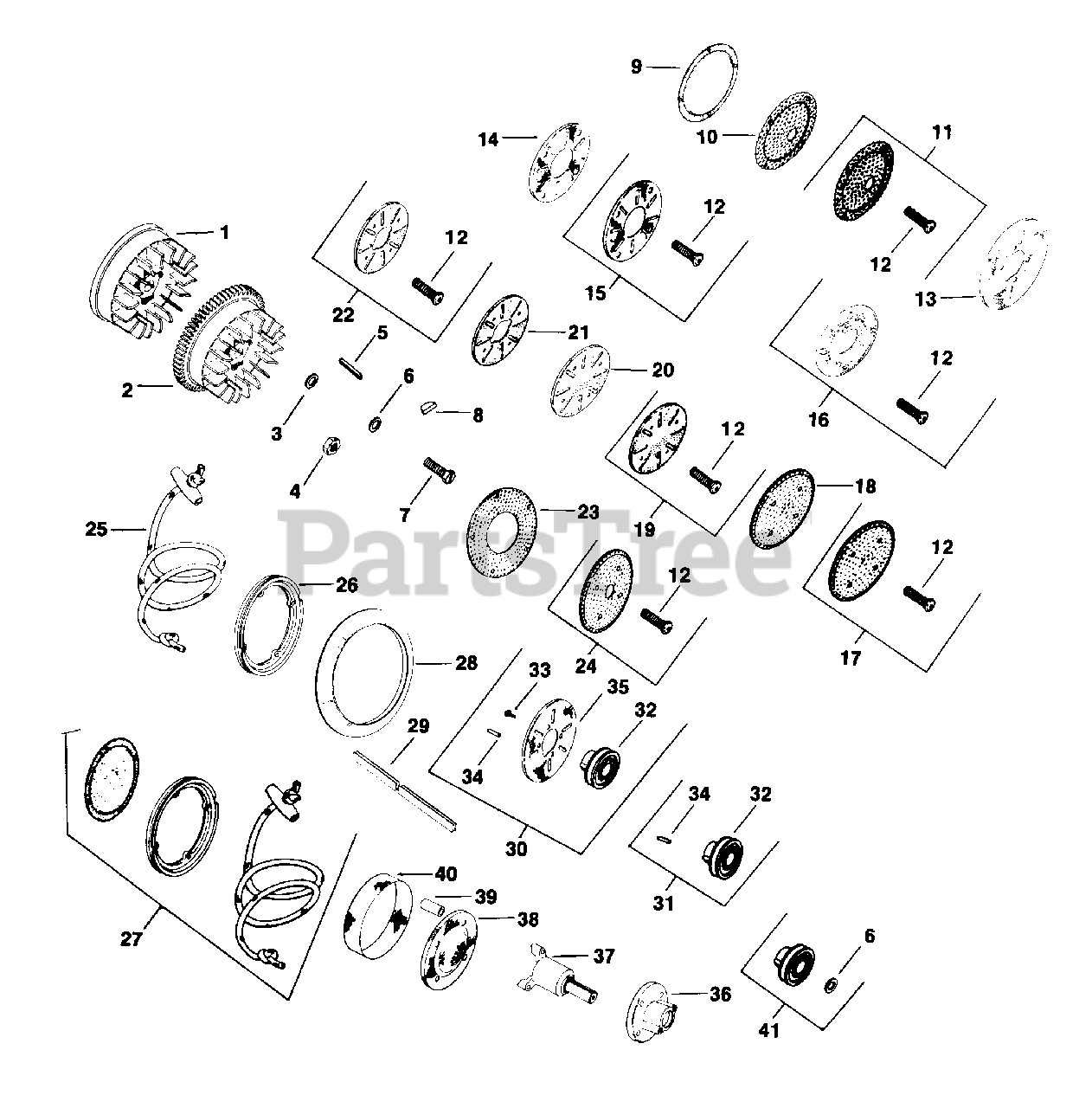

Flywheel 13-10-1 (TP-2097) Parts Diagram

  • Title

1

Kohler A-235908-S

FLYWHEEL

$575.99

$

Usually ships in 2-5 days

0

3

Kohler X-25-104

WASHER - DISCONTINUED

$

$

Not available

4

Kohler X-119-14

NUT - USE 25 100 02
(Superseded to 25 100 02-S)

$

$

Not available

5

Kohler X-366-1-S

KEY - DISCONTINUED

Note: Use X-286-17-S after Engine Serial No. 5071832

$

$

Not available

5

Kohler X-286-17-S

KEY

$3.49

$

In Stock, only 1 left!

0

6

Kohler 52 114 02

WASHER - USE 52 468 15
(Superseded to 25 468 09-S)

Note: Replaced by 52 468 15-S

$6.49

$

In Stock, only 2 left!

0

7

Kohler 25 086 04

SCREW - USE 25 086 24
(Superseded to 25 086 24-S)

Note: Replaced by 25 086 24-S

$3.49

$

Usually ships in 2-5 days

0

8

Kohler X-46-3-S

KEY, 3/16" X 1"

$3.49

$

Usually ships in 2-5 days

0

9

Kohler 235208-S

SCREEN, GRASS

$38.99

$

Usually ships in 2-5 days

0

25

Kohler A-230099-S

ROPE-DISCONTINUED

$

$

Not available

26

Kohler 235207-S

PULLEY

Note: Single groove

$

$

Not available

X-166-1-S

Kohler X-166-1-S

SCREW

Note: Not Illustrated.

$

$

Not available

X-25-52-S

Kohler X-25-52-S

WASHER, FLAT 1/4"

Note: Not Illustrated.

$3.99

$

In Stock, only 2 left!

0
