K301-47755 - Kohler K-Series Engine, Made for Simplicity, 12hp, 9kW Crankshaft (TP-2097) Parts Diagram

K-Series Engine, Made for Simplicity, 12hp, 9kW

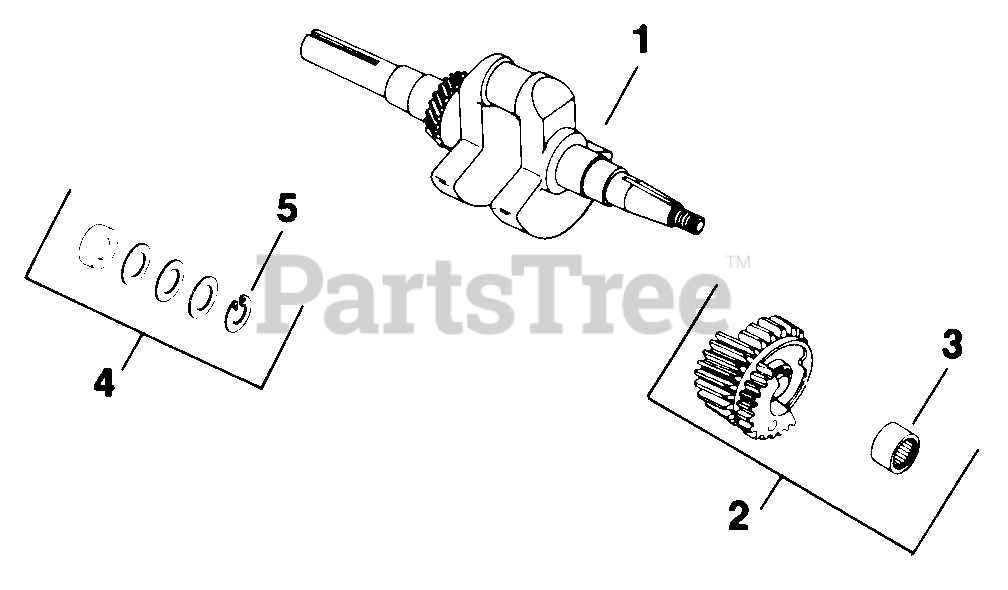

Crankshaft (TP-2097) Parts Diagram

  • Title

1

Kohler B-236334

CRANKSHAFT - USE 47 142 26
(Superseded to 47 142 26-S)

Note: Before Serial No. 1525200014

$1054.99

$

In Stock, only 1 left!

0

1

Kohler 47 142 26-S

CRANKSHAFT KIT-USE 45 142 22-S
(Superseded to 45 142 22-S)

Note: After Serial No. 1525200004

$1054.99

$

In Stock, only 1 left!

0

2

Kohler 47 042 01

GEAR - USE 45 043 03
(Superseded to 45 043 03)

Note: Includes 3. Replaced by 45 043 03-S

$201.99

$

Usually ships in 2-5 days

0

3

Kohler 236506-S

BEARING

Note: Before Serial No. 9641311

$79.99

$

Usually ships in 2-5 days

0

3

Kohler 47 030 01-S

BEARING

Note: After Serial No. 9641310

$26.99

$

Usually ships in 2-5 days

0

4

Kohler 47 755 01-S

KIT, SPACER

Note: Includes 5

$70.99

$

Usually ships in 2-5 days

0

5

Kohler X-269-34-S

RING

$3.49

$

In Stock, only 2 left!

0
