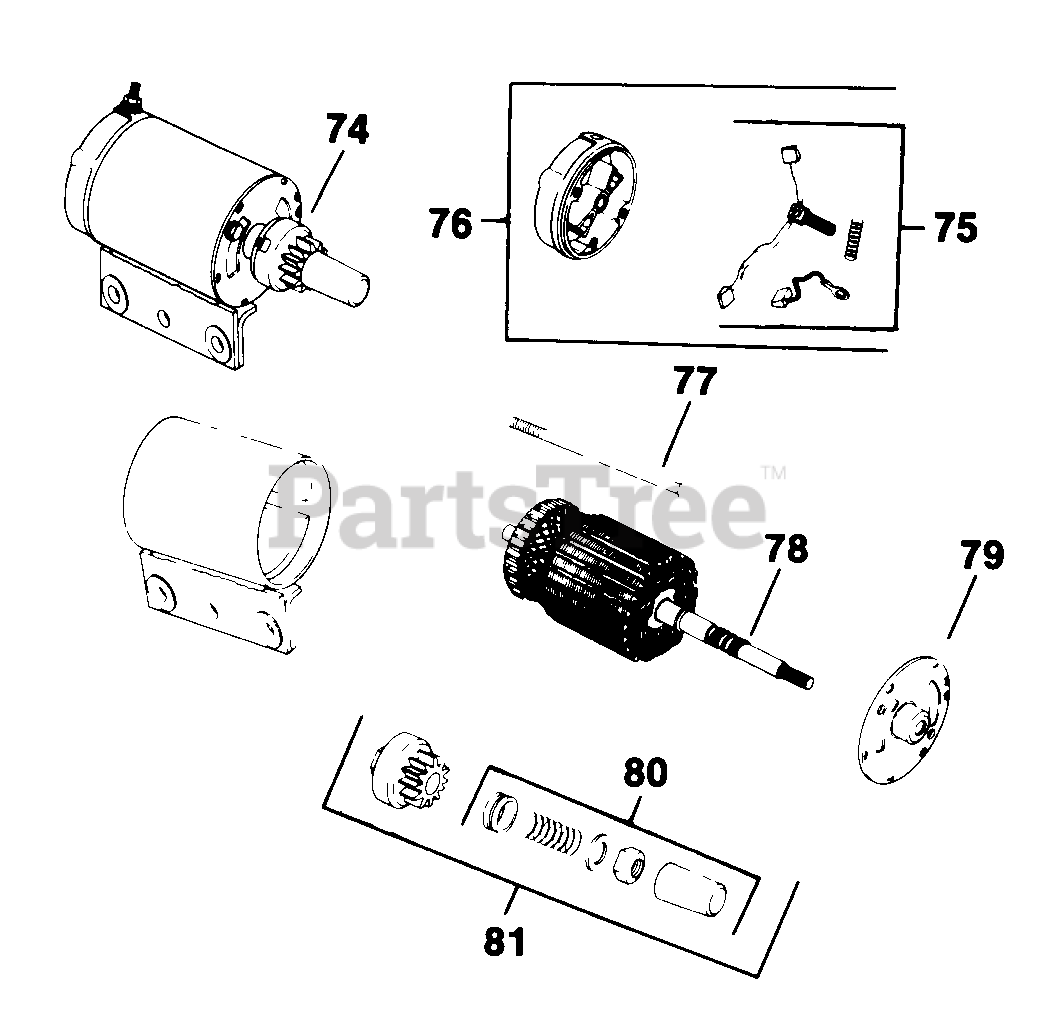

K301-47310 - Kohler K-Series Engine, Made for American Lincoln Corp., 12hp, 9kW Electric Start (Cont.) 0211011541 Parts Diagram

K-Series Engine, Made for American Lincoln Corp., 12hp, 9kW

Electric Start (Cont.) 0211011541 Parts Diagram

  • Title

74

Kohler A-237534

STARTER - USE 45 098 07
(Superseded to 45 098 07)

Note: See Note for proper application. SMH12A4 or 05994-24-M030SM. Includes 75-81. Replaced by 45 098 07.

$363.99

$

Usually ships in 2-5 days

0

75

Kohler 48 755 15

KIT - USE 52 755 15
(Superseded to 52 755 15)

$

$

Not available

76

Kohler 48 227 04

CAP - DISCONTINUED

$

$

Not available

77

Kohler 237649-S

BOLT

$29.99

$

Usually ships in 2-5 days

0

78

Kohler 47 170 01-S

ARMATURE

$487.99

$

Usually ships in 2-5 days

0

79

Kohler 237650

CAP - USE 45 081 05
(Superseded to 45 081 05-S)

$124.99

$

Usually ships in 2-5 days

0

80

Kohler 47 755 13

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

81

Kohler 47 755 07

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Includes 80

$

$

Not available

X-22-1-S

Kohler X-22-1-S

WASHER, SPRING LOCK 3/8"

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

X-22-9-S

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

Note: Not Illustrated.

$3.99

$

In Stock, only 1 left!

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: Not Illustrated.

$2.49

$

In Stock, only 3 left!

0

X-116-4

Kohler X-116-4

SCREW - USE 25 086 29
(Superseded to 25 086 29-S)

Note: Not Illustrated. Replaced by 25 086 29-S

$3.99

$

Usually ships in 2-5 days

0

X-81-1-S

Kohler X-81-1-S

NUT, 1/4-20 GRADE 2 USE 25 100 20-S
(Superseded to 25 100 20-S)

Note: Not Illustrated.

$3.49

$

In Stock, only 1 left!

0
