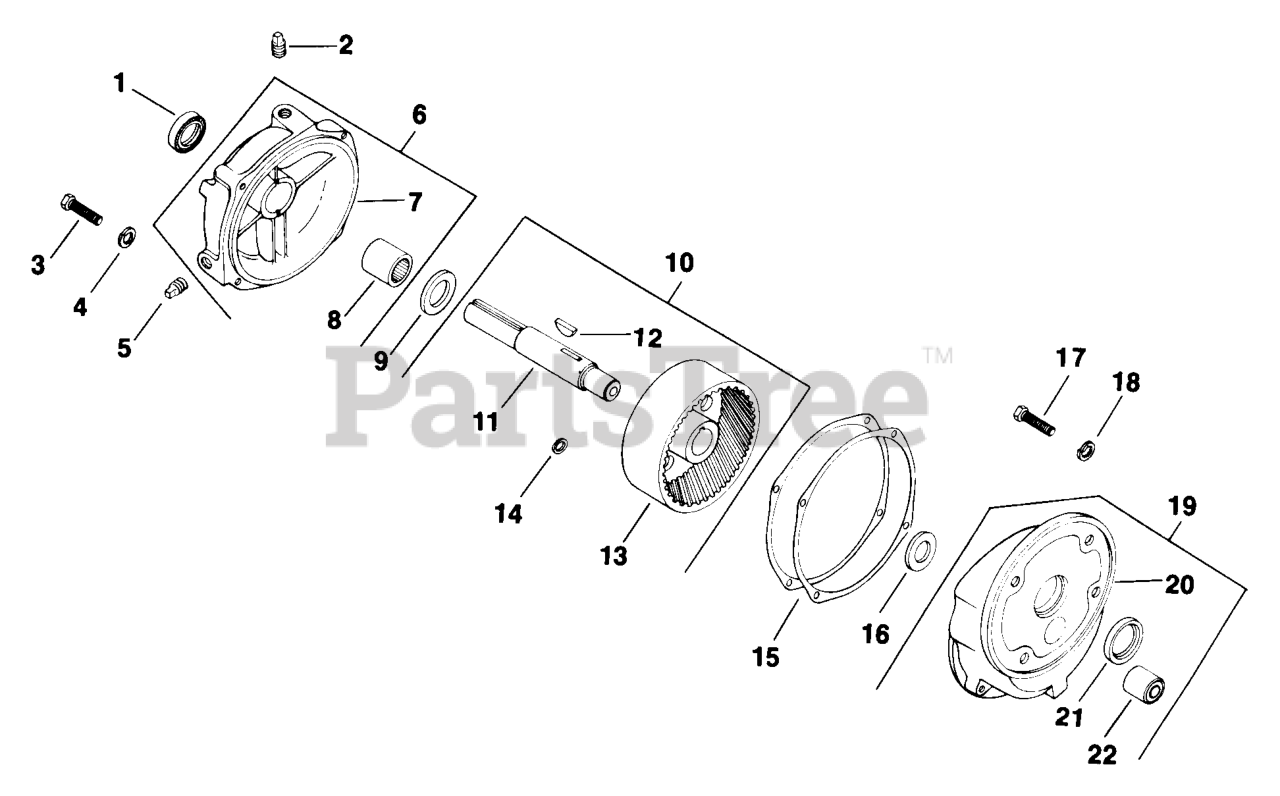

K301-47201 - Kohler K-Series Engine, Basic Version, 12hp, 9kW Gear Reduction (TP-2097) Parts Diagram

K-Series Engine, Basic Version, 12hp, 9kW

Gear Reduction (TP-2097) Parts Diagram

  • Title

1

Kohler X-379-7-S

SEAL - DISCONTINUED

$

$

Not available

2

Kohler 41 139 01-S

PLUG

$

$

Not available

3

Kohler X-6-29-S

SCREW,CAP HD 5/16-18x2"

$3.49

$

In Stock, only 4 left!

0

4

Kohler X-21-1-S

WASHER, SPRING LOCK 5/16"

$3.99

$

In Stock, only 3 left!

0

5

Kohler X-75-2-S

PLUG,PIPE 1/4 NPTF SQUARE HD USE 25 139 53-S
(Superseded to 25 139 53-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler A-237173

COVER - USE 12 081 06
(Superseded to 12 081 06-S)

$

$

Not available

7

Kohler 235244-S

COVER - DISCONTINUED

$

$

Not available

8

Kohler 235250-S

BEARING - DISCONTINUED

$

$

Not available

9

Kohler 235247-S

WASHER

$84.99

$

Usually ships in 2-5 days

0

10

Kohler A-237172

RED GEAR - DISCONTINUED

$

$

Not available

11

Kohler 235249-S

SHAFT - DISCONTINUED

$

$

Not available

12

Kohler X-46-3-S

KEY, 3/16" X 1"

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 235245-S

GEAR - (#DSC)

$

$

Not available

14

Kohler X-25-67-S

WASHER

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 234498-S

GASKET

$15.99

$

In Stock, only 3 left!

0

16

Kohler 235248-S

WASHER

$

$

Not available

17

Kohler 270677-S

SCREW - DISCONTINUED

$

$

Not available

18

Kohler X-22-1-S

WASHER, SPRING LOCK 3/8"

$3.99

$

Usually ships in 2-5 days

0

19

Kohler A-237174-S

HOUSING - DISCONTINUED

$

$

Not available

20

Kohler 235243-S

HOUSING - (#DSC)

$

$

Not available

21

Kohler 47 032 06-S

SEAL, FRONT OIL

$22.99

$

In Stock, only 3 left!

0
