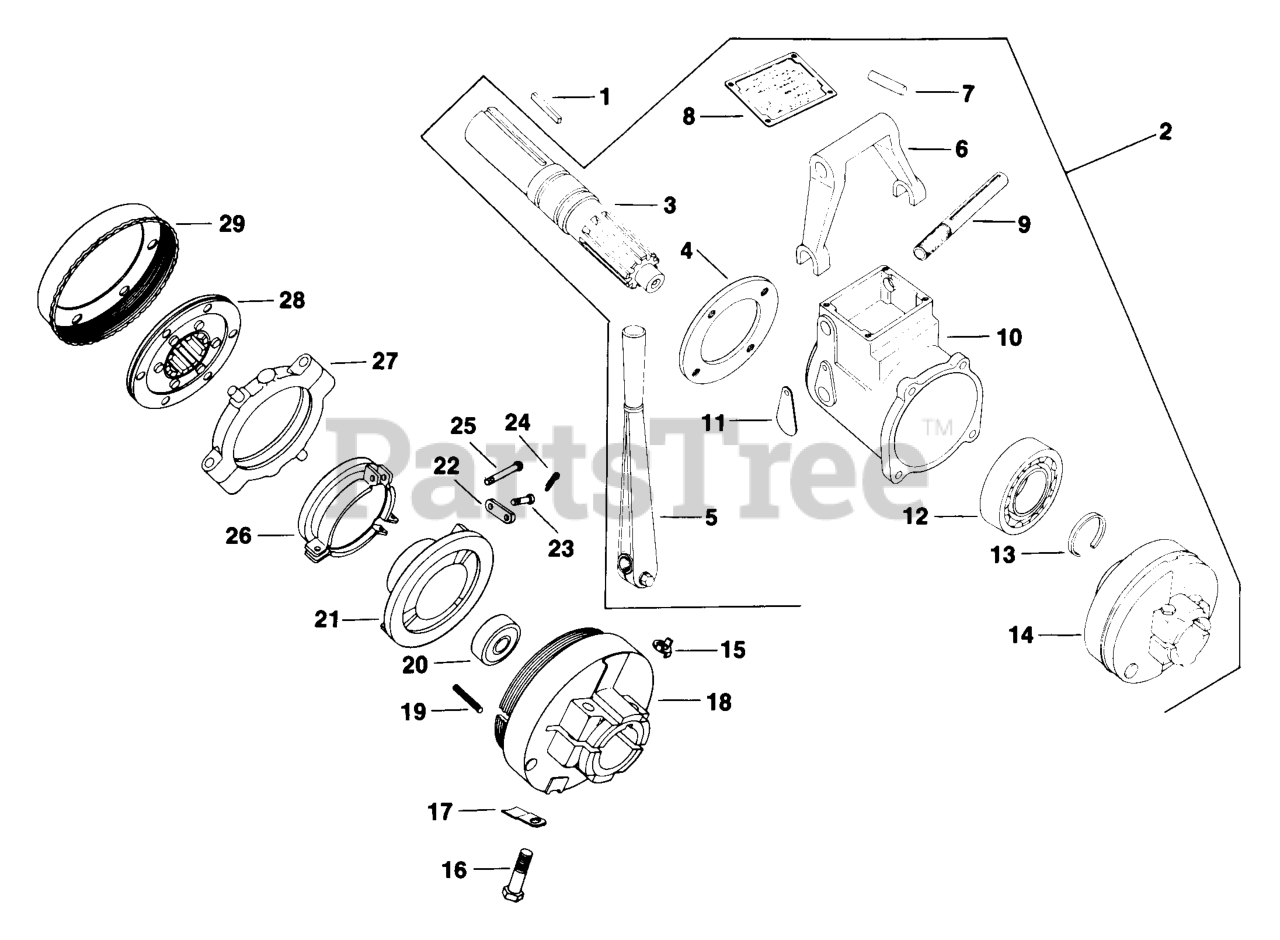

K301-47114 - Kohler K-Series Engine, Made for Chisholm Ryder, 12hp, 9kW Clutch (TP-2097) Parts Diagram

K-Series Engine, Made for Chisholm Ryder, 12hp, 9kW

Clutch (TP-2097) Parts Diagram

  • Title

1

Kohler X-286-11

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

2

Kohler A-235020-S

CLUTCH - DISCONTINUED

Note: Includes 3-14

$

$

Not available

3

Kohler 234091

SHAFT - DISCONTINUED

$

$

Not available

4

Kohler 234092-S

PLATE - DISCONTINUED

$

$

Not available

5

Kohler A-234026-S

LEVER - DISCONTINUED

$

$

Not available

6

Kohler A-234027

YOKE - USE 24 471 01
(Superseded to 24 471 01)

$

$

Not available

7

Kohler 274101-S

PIN

$7.49

$

Usually ships in 2-5 days

0

8

Kohler 234087

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

9

Kohler 274117-S

SHAFT - DISCONTINUED

$

$

Not available

10

Kohler 234086

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

11

Kohler 234088

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

12

Kohler 234090-S

BEARING - DISCONTINUED

$

$

Not available

13

Kohler 235305-S

BASE - DISCONTINUED

$

$

Not available

14

Kohler A-234093

DISCONTINUED

Note: Discontinued not available at Kohler Co. Includes 15-29.

$

$

Not available

15

Kohler 234057-S

LOCK - DISCONTINUED

$

$

Not available

16

Kohler 234114

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

17

Kohler 234060

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

18

Kohler 234094

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

19

Kohler 234055-S

SPRING - DISCONTINUED

$

$

Not available

20

Kohler 212135

Bearing

$

$

Not available

21

Kohler A-234062-S

PLATE - DISCONTINUED

$

$

Not available

22

Kohler A-234066

BEARING - DISCONTINUED

$

$

Not available

23

Kohler 234052-S

PIN

$10.99

$

Usually ships in 2-5 days

0

24

Kohler X-36-4

DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

25

Kohler 234052-S

PIN

$10.99

$

Usually ships in 2-5 days

0

26

Kohler A-234062-S

PLATE - DISCONTINUED

$

$

Not available

27

Kohler A-234066

BEARING - DISCONTINUED

$

$

Not available

28

Kohler A-234064

SLEEVE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

29

Kohler 234068

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Discontinued not available at Kohler Co.

$

$

Not available

X-6-14

Kohler X-6-14

SCREW - DISCONTINUED

Note: Not Illustrated.

$

$

Not available

X-7-2-S

Kohler X-7-2-S

SCREW, CAP HD 3/8-16x1-1/4"-DISC.

Note: Not Illustrated.

$

$

Not available

X-7-29-S

Kohler X-7-29-S

SCREW - DISCONTINUED

Note: Not Illustrated. Discontinued not available at Kohler Co.

$

$

Not available

X-8-7-S

Kohler X-8-7-S

SCREW, CAP HD 7/19-14x1"-DISC.

Note: Not Illustrated.

$

$

Not available

X-21-1-S

Kohler X-21-1-S

WASHER, SPRING LOCK 5/16"

Note: Not Illustrated.

$3.99

$

In Stock, only 3 left!

0

X-22-1-S

Kohler X-22-1-S

WASHER, SPRING LOCK 3/8"

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: Not Illustrated.

$2.49

$

In Stock, only 3 left!

0

X-23-1-S

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

Note: Not Illustrated.

$3.99

$

Usually ships in 2-5 days

0

X-50-13-S

Kohler X-50-13-S

SCREW, SLT PAN HD 10-24X3/8" USE 25 086 60-S
(Superseded to 25 086 60-S)

Note: Not Illustrated.

$

$

Not available

X-52-22-S

Kohler X-52-22-S

SCREW - DISCONTINUED

Note: Not Illustrated.

$

$

Not available

X-101-5

Kohler X-101-5

Nut, hex. lock 3/8-24

Note: Not Illustrated. Discontinued not available at Kohler Co.

$

$

Not available
